10: LEXICON FX
LEXICON FX
10: LEXICON FX

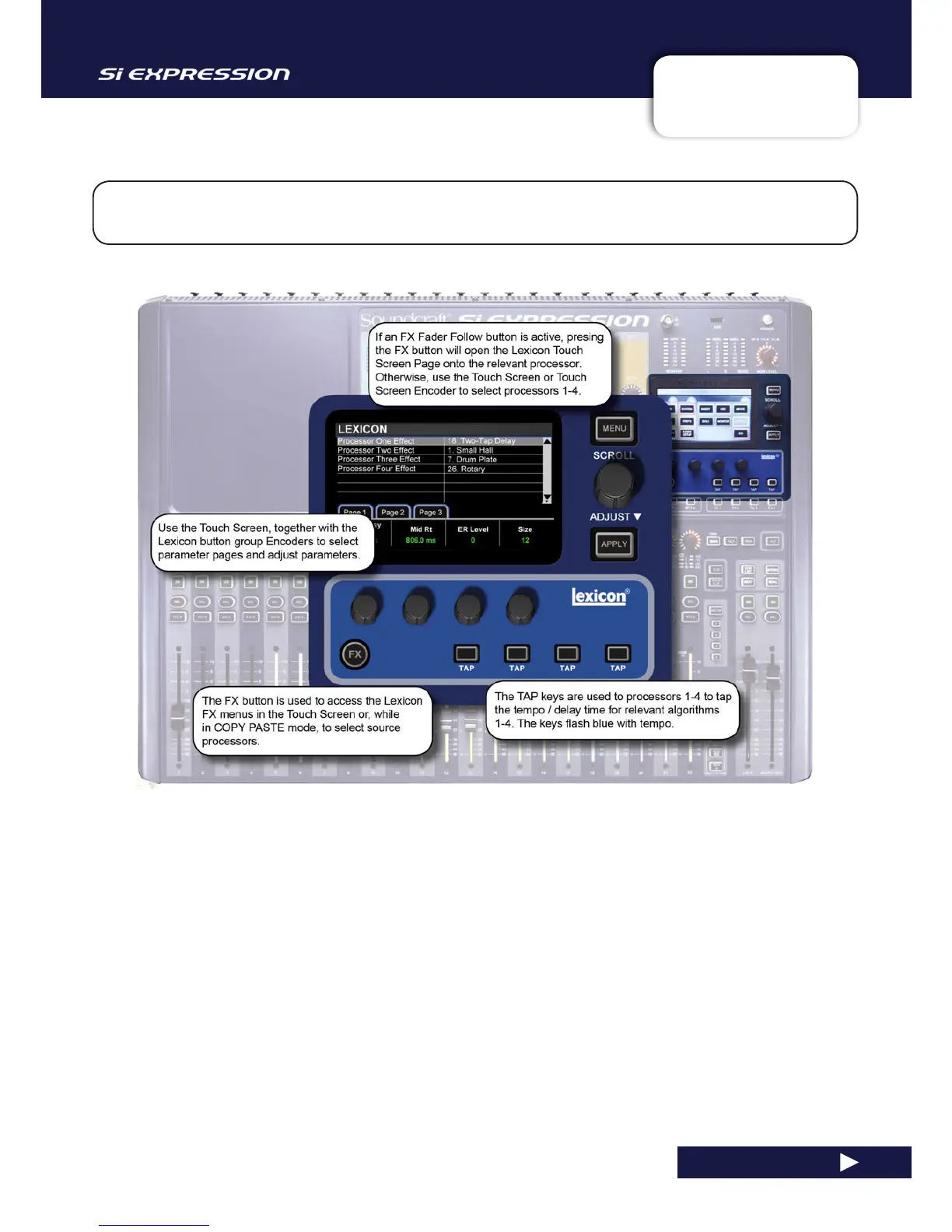

The console comes with four Lexicon FX processors, each with 29 available algorithms. Each FX
unit has its own dedicated FX Send Bus, and stereo return path.
Send Routing
Every input channel can contribute to the FX 1-4 send busses, which correspond to the FX unit 1-4 inputs.
Contributions are controlled in the same way as Mix bus contributions, via the FX 1 - 4 FADER FOLLOW (tOTEM)
buttons, which assigns each channel’s contribution to the selected bus to its fader. The Stereo Return channel is as-
signed to the MONO/SEL Control Channel on the right hand end of the console.
Return Routing
The Stereo Input channels, ST 3 - ST 6 are, by default, patched to the Lexicon FX unit 1-4 returns (as per the con-
sole’s default set-up). For example, Stereo Input ST 3 is patched to LEX-RT1 (FX Processor 1, Lexicon Return
Channels 1 and 2); Stereo Input ST 4 is patched to LEX-RT3 (FX Processor 2, Lexicon Return Channels 3 and 4), and
so on. Stereo Input channels do not have to be patched to FX returns, but FX unit 1-4 returns can only be patched to
Stereo Inputs ST3-6.
Patching for the Stereo Input channels is via the OUTPUTS Touch Screen menu.
