Servo Reversing
[REVERSING SW]
NORM
GEAR
≤
ch 1 2 3 4 5 6 7
REV.
Press to select REV. or NORMPress to enter REVERSE
Press to enter
Function Mode
Press to select
desired channel

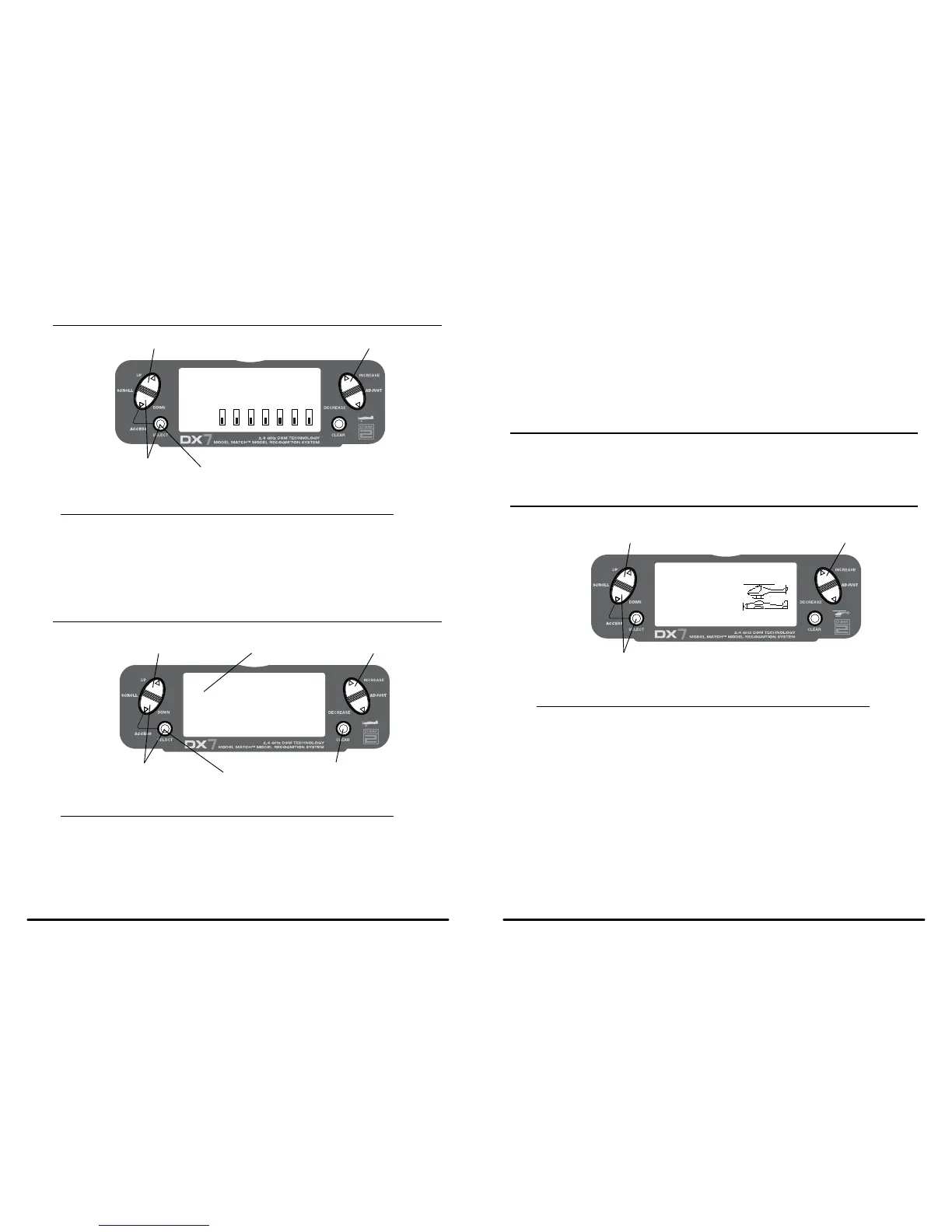

To Access Servo Reversing
Turn the power on, press the DowN and SELECT keys simultaneously to enter the function mode.
Press the UP or DowN key until REVERSING SW appears on screen.
Press the SELECT key to select the desired channel, then press the INCREASE or DECREASE key to select
reverse or normal servo direction.
Travel Adjust
[TRAVEL ADJUST]
THRO
≥H 100%
L 100%
ELEV
D 100%
U 100%
AILE
L 100%
R 100%
RUDD
L 100%
R 100%
Press to adjust valueSelected channel
Press to enter
TRAVEL ADJUST
Press to enter
Function Mode
Press to return
value to default
Press to select
desired channel
To Access Travel Adjust
Turn the power on and press the DowN and SELECT keys simultaneously to enter the function mode.
Press the UP or DowN key until TRAVEL ADJUST appears on screen. Press the select key to move the cursor
arrow to the desired channel.
Use the SELECT key to choose the appropriate channel that you wish to adjust.
While holding the channel or switch in the desired direction, press the INCREASE or DECREASE key to adjust
SPEKTRUM DX7 • AIRCRAFT QUICK START GUIDE
the travel adjust in that direction.
This completes the basic Quick Start setup for your airplane. For additional features like Dual and Expo rates,
Mixing, etc, see the appropriate pages listed in the table of contents.
Note: If your airplane’s ailerons are controlled independently by two servos, see “Wing Type
Selection” on page 44 for specifics on programming flaperons.
Helicopter Quick Start
The following covers a basic 5-channel mechanical mix helicopter with single rate. For more details on
programming for the helicopter mode, see the Helicopter section of this manual.
Model Type Selection
[TYPE SELECT]
MODEL 1
◊HELI
ACRO
Use to select
desired model
Press to enter
TYPE SELECT
Hold while turning
on the transmitter
Selecting Helicopter Mode
Press the DowN and SELECT keys simultaneously and hold while turning on the transmitter to enter system
setup mode.
Press the UP or DowN button until TYPE SELECT appears on screen.
If HELI is highlighted on screen, proceed to SERVO REVERSING (page 28).
If ACRO is highlighted, press the INCREASE or DECREASE key once and heli should be highlighted.
Press the CLEAR key to accept the model type change.
SPEKTRUM DX7 • HELICOPTER QUICK START GUIDE
