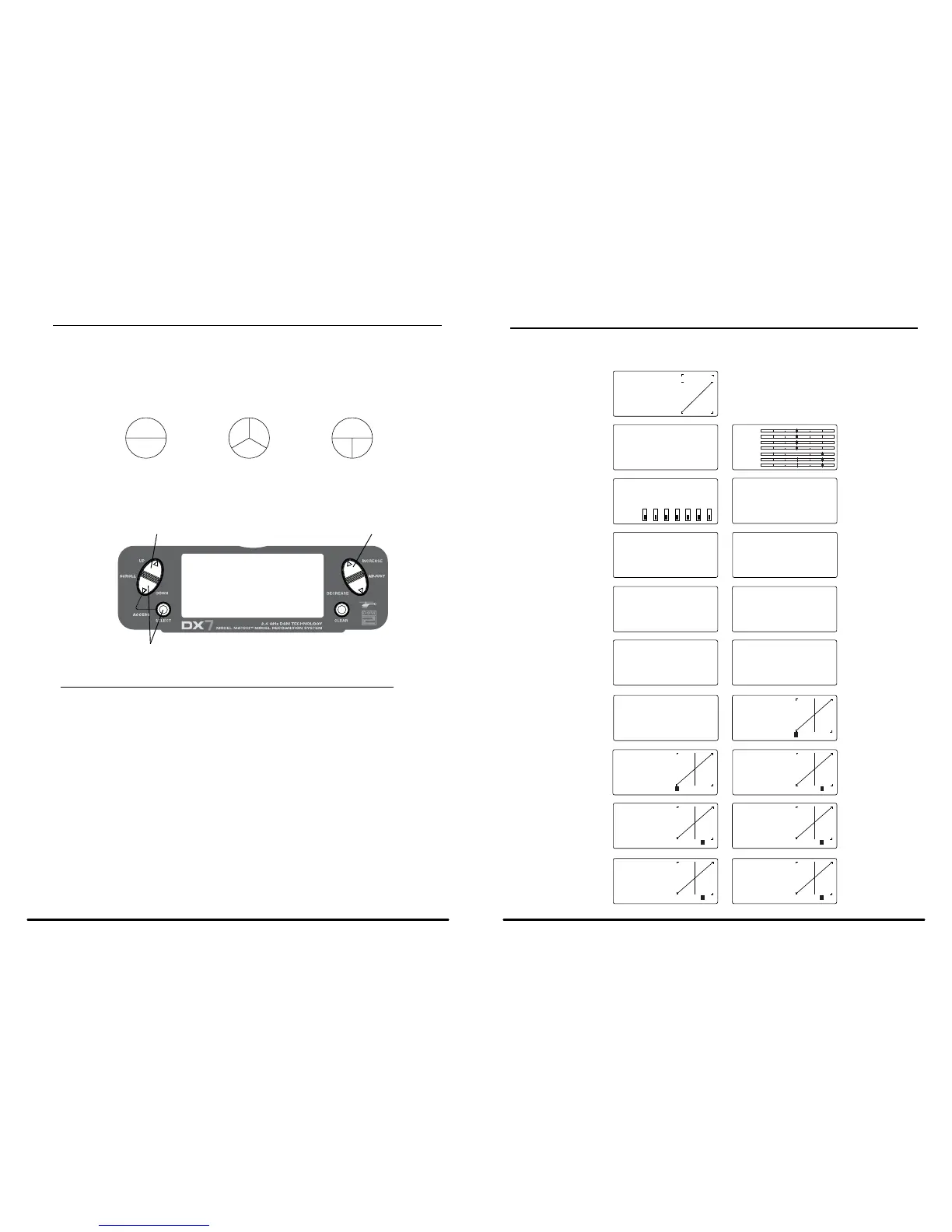

SPEKTRUM DX7 • HELICOPTER PROGRAMMING GUIDE SPEKTRUM DX7 • HELICOPTER PROGRAMMING GUIDE
Swash Type
The Swashplate Mixing function enables the DX7 system to operate the following swashplate types:
• 1 Servo: Non-CCPM, standard mixing type helicopter
• 2 Servo/180° CCPM
• 3 Servo/120° CCPM (most popular)
• 3 Servo/90° CCPM
2 Servo/180 CCPM
3 Servo/120 CCPM
(most popular)
3 Servo/90 CCPM
Ch6 Ch2
Ch3
Ch2 Ch6
Ch3
Ch2 Ch6
[SWASH TYPE]
1 SERVO
NORM
Press to select Swashplate Type
Press to enter
SWASH TYPE
Hold while turning on the transmitter
Accessing the Swashplate Types
While pressing the DowN and SELECT keys, turn the transmitter on to enter the System Mode.
Press either the UP or DowN key until SWASH TYPE is displayed in the LCD.
Press the INCREASE or DECREASE keys to change the swashplate type.
Pressing the CLEAR key will reset the swashplate type to the NORMAL position.
Function Mode Flowchart
Includes programming functions that are more frequently used. Function Mode programming functions are as follows.
[AUTO D/R EXP]
◊NORM INH
ST-1 INH
ST-2 INH
[D/R & EXP]
POS-0
◊AILE
D/R 100%
EXP LIN
≥OUTPUT
[SUB TRIM]
≥THRO AILE
0 0
0 0
ELEV RUDD
[REVERSING SW]
NORM
GEAR
≤
ch 1 2 3 4 5 6 7
REV.
[SWASH MIX]
3 SERVO
120˚
EXP INH
≥AILE + 60%
ELEV + 60%
PIT. + 60%
[TRAVEL ADJUST]
THRO
≥H 100%
L 100%
ELEV
D 100%
U 100%
AILE
L 100%
R 100%
RUDD
L 100%
R 100%
THRO
AILE
ELEV
RUDD
GEAR
FLAP
AUX2
[TIMER]
MODEL 1
DOWN-T
10:00
[PROG.MIX1]
◊THRO≥ THRO ON
RATE: 0%
0%
SW:ON
OFFSET: 0
[REVO MIX]
NORM STNT
◊UP 0%
DN 0%
UP 0%
DN 0%
[GYRO SENS]
◊RUDD
RATE:
0: 50%
1: 50%
[THRO HOLD]
HOLD POS.
ACT
OFF
- 5.0%
[THRO CURVE]
ST-1
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
[THRO CURVE]
NORM
≥Point-L
51 51
0.0%
1 2 3 HL
IN OUT
[PITCH CURVE]
HOLD
≥Point-L
49 49
0.0%
1 2 3 HL
IN OUT
[PITCH CURVE]
ST-1
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
[PITCH CURVE]
ST-2
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
[THRO CURVE]
ST-2
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
[PITCH CURVE]
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
NORM
Dual Rate &
Exponential (page 84)
Auto Dual Rate Expo
(page 86)
Reverse (page 87)
Sub Trim (page 88)
Travel Adjust
(page 89)
Swashplate Mix
(Only available when
CCPM Mix is active
(page 90)
Throttle Hold
(page 91)
Throttle Curve Normal
(page 92)
Throttle Curve ST-1
(page 93)
Throttle Curve ST-2
(page 86)
Timer (page 100)
Programmable Mix
(1 though 3)
(page 97)
Gyro Sensing
(Only available when
AUX 2 or GEAR is
assigned as Gyro
Function) (page 96)
Revo Mix (page 95)
Pitch Curve Hold
(only available when
HOLD is activated)
(page 94)
Pitch ST-2 (page 94)
Pitch Curve ST-1
(page 94)
Pitch Curve Normal
(page 94)
Servo Monitor
(page 102)
