Spektrum DX7 Instruction Manual

12
13

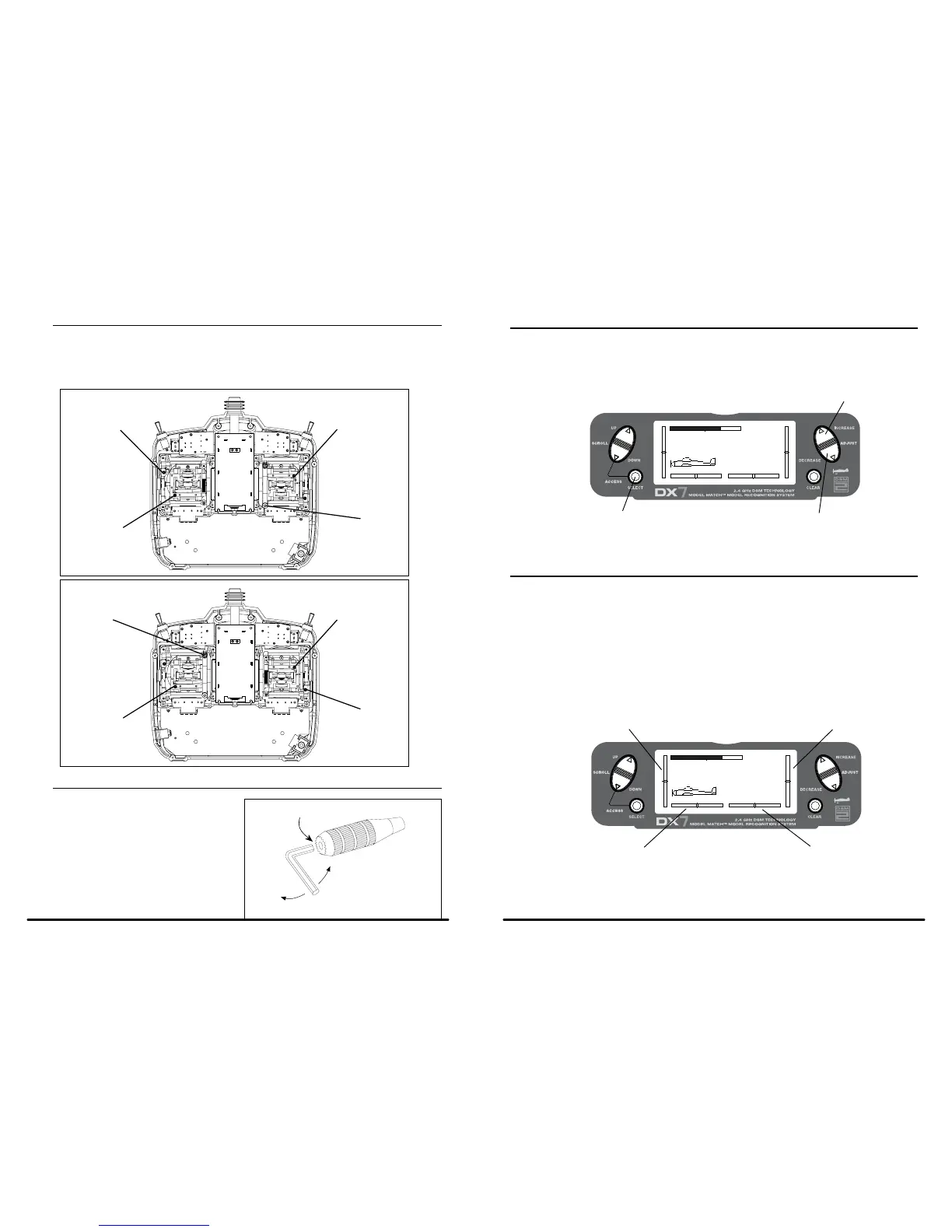

Adjusting the Control Stick Tension
Note: Remove the six (6) transmitter back cover screws. Remove the transmitter back, being
careful not to cause damage to any components.
Adjust each stick tension screw for the desired tension (counterclockwise to loosen stick tension, clockwise to
tighten stick tension).
LOOSEN
TIGHTEN
SETSCREW
ELEVATOR TENSION
SCREW
THROTTLE TENSION
SCREW
AILERON TENSION
SCREW
RUDDER TENSION
SCREW
RUDDER TENSION
SCREW
AILERON TENSION
SCREW
THROTTLE TENSION
SCREW
ELEVATOR TENSION
SCREW
MODE 2
MODE 1
SPEKTRUM DX7 • INTRODUCTION
Screen Contrast
The screen contrast is adjustable, allowing the user to vary the contrast for improved clarity in all conditions.
To adjust contrast: with the transmitter on and in the main menu, press and hold the select key. Then press the
INCREASE or DECREASE key to lighten or darken the contrast.
MODEL 1
SPEKTRUM DX7 2.4GHz
10.6V
Press to decrease contrast
Press to increase contrast
Press and hold while
changing contrast
Advanced Digital Trims
The DX7 employs digital trim levers on aileron, elevator, throttle and rudder (hover pitch and hover throttle for
helicopters). The ADT (Advanced Digital Trim) feature is designed to automatically store the selected trim values
for each model. When a different model is selected, the previously stored trim positions for that model are
automatically recalled.
When using the helicopter program, each flight mode has its own trim that is automatically recalled each time
that flight mode is entered.
Visual trim positions are displayed on the main screen. The trims feature dual speed scrolling. Holding the trim
lever for an extended time will cause the trim rate of change to increase.
MODEL 1
SPEKTRUM DX7 2.4GHz
10.6V
Rudder trim
Throttle trim
Aileron trim
Elevator trim
SPEKTRUM DX7 • INTRODUCTION
Control Stick Length Adjustment
The DX7 allows you to adjust the control stick’s
length. Use the 2mm Allen wrench (supplied with
your DX7 transmitter) to unlock the setscrew.
Turn the wrench counterclockwise to loosen the
screw. Then, turn the stick clockwise to shorten or
counterclockwise to lengthen. After the control stick
length has been adjusted to suit your flying style,
tighten the 2mm setscrew.

Spektrum DX7 Specifications

General

Interface	RF Wireless
Product color	Black
Remote control proper use	-
Built-in display	Yes
Maximum range	- m
Frequency band	2.4 GHz
Channels quantity	7 channels
Number of devices supported	250
Battery capacity	2000 mAh
Quantity per pack	1 pc(s)

Weight and Dimensions

Weight	- g
