SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE
Dual Rate and Switch Select
The D/R switch select function allows the dual and expo rates to be selected via individual switches (aileron,
elevator and rudder D/R switches) or to be conveniently combined on a single switch. When combined to a
single switch the following switch options are available:
• COM AILE: Aileron D/R switch
• COM ELEV: Elevator D/R switch
• COM RUDD: Rudder D/R switch
• FLAP 2: Flap switch in the lower position
• FLAP 0: Flap switch in the upper position
• INDIVID: D/R activated by it’s individual aileron, elevator and rudder switches

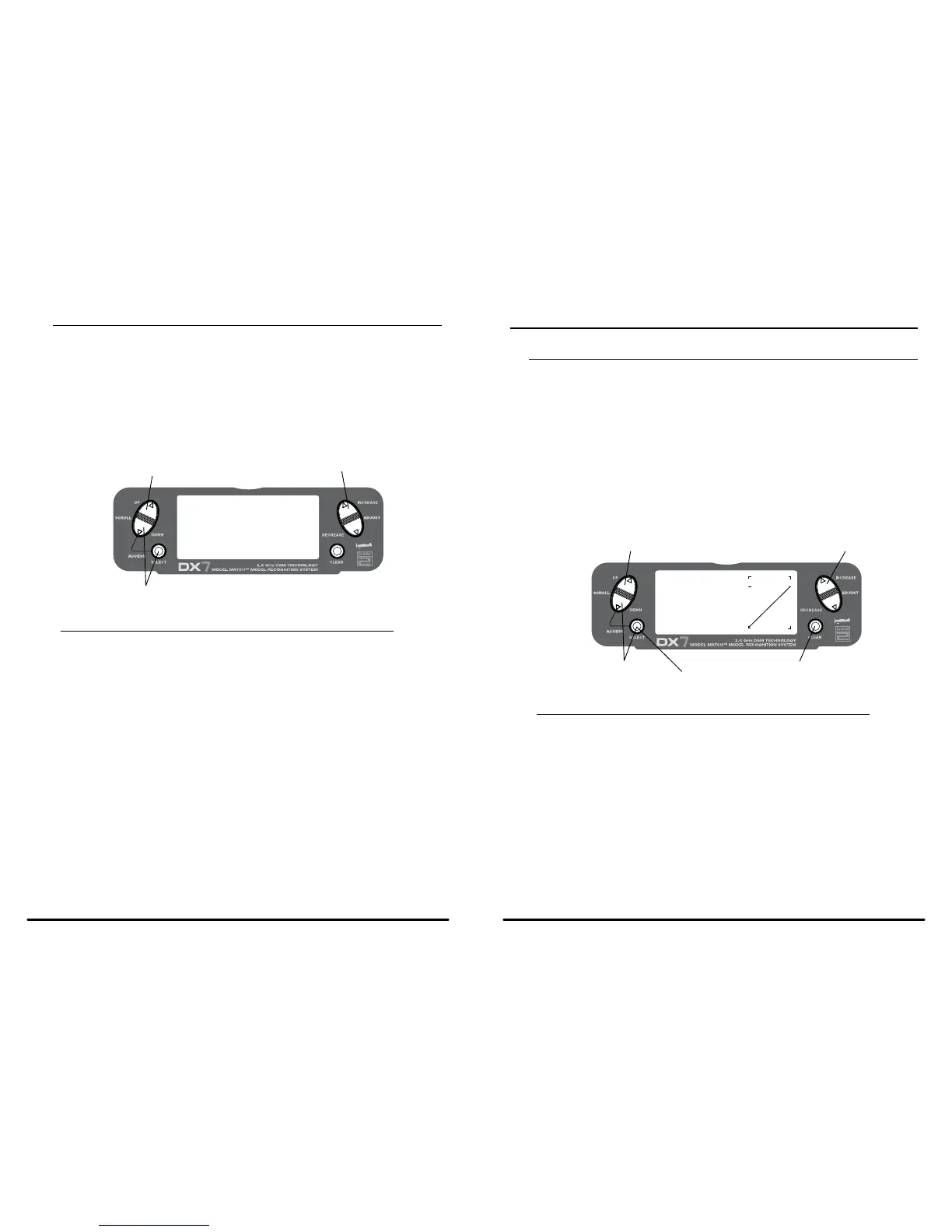

[D/R SWITCH SEL]
≥INDIVID
Press to change selection
Press to enter
D/R SWITCH SELECT
Hold while turning on the transmitter
To Activate Dual Rate and Switch Select
Press and hold the DowN and SELECT keys simultaneously to enter system mode.
Press the UP or DowN key until D/R SWITCH SEL appears on the screen.
Press the INCREASE or DECREASE key to select the desired switch(es) you wish to operate the
D/R and Expo function.
Function Mode Functions
Dual Rate and Exponential
The Dual Rate and Exponential function allows two control rates to be programmed and selected with a switch.
Dual rates and expos are available on the aileron, elevator and rudder channels. Changing the dual rate value
not only affects the maximum control authority but also affects the overall sensitivity of control. A higher rate
yields a higher overall sensitivity. The sensitivity around center can be tailored using the Exponential function to
precisely adjust control feel.
Dual and Expo rates can be controlled by their respective dual rate switches (aileron, elevator and rudder) or by
one common switch (COM AILE, COM ELEV, COM RUDD, FLAP0 or FLAP2). The choices for this are found on
the D/R SWITCH SEL screen in the System Setup Mode for Airplanes.
Dual rate values are adjustable from 0–125%. The factory default settings for both the 0 and 1 switch positions
are 100%. Exponential values are adjustable from -100% to +100%. Either switch position may be selected as
the low or high rate by placing the switch in the desired position and adjusting the value accordingly.
[D/R & EXP]
POS-0
◊AILE
D/R 100%
EXP LIN
≥OUTPUT
Press to adjust value
Press to enter
DUAL RATE
Press to enter
Function Mode
Press to select
desired channel
Press to return value
to default setting
To Adjust the Dual and Expo Rates
Press the DowN and SELECT keys simultaneously to access the Function Mode.
In Function Mode, use the UP or DowN key to select the D/R & EXP screen.
Press the INCREASE or DECREASE key to select the desired channel (AILE, ELEV or RUDD).
Press the SELECT key to highlight the D/R or EXPO function.
Adjust the dual rate values for the selected switch position using the INCREASE or DECREASE key.
The Dual Rate and Expo functions for aileron, elevator and rudder can be combined on a single switch
conveniently allowing high or low rates to be selected via one switch (COM AILE, COM ELEV, COM RUDD,
FLAP0 or FLAP2). The choices for this are found on the D/R SWITCH SEL screen in the System Setup Mode
for Airplanes. (See page 50)
