Spektrum DX7 Instruction Manual

28
29

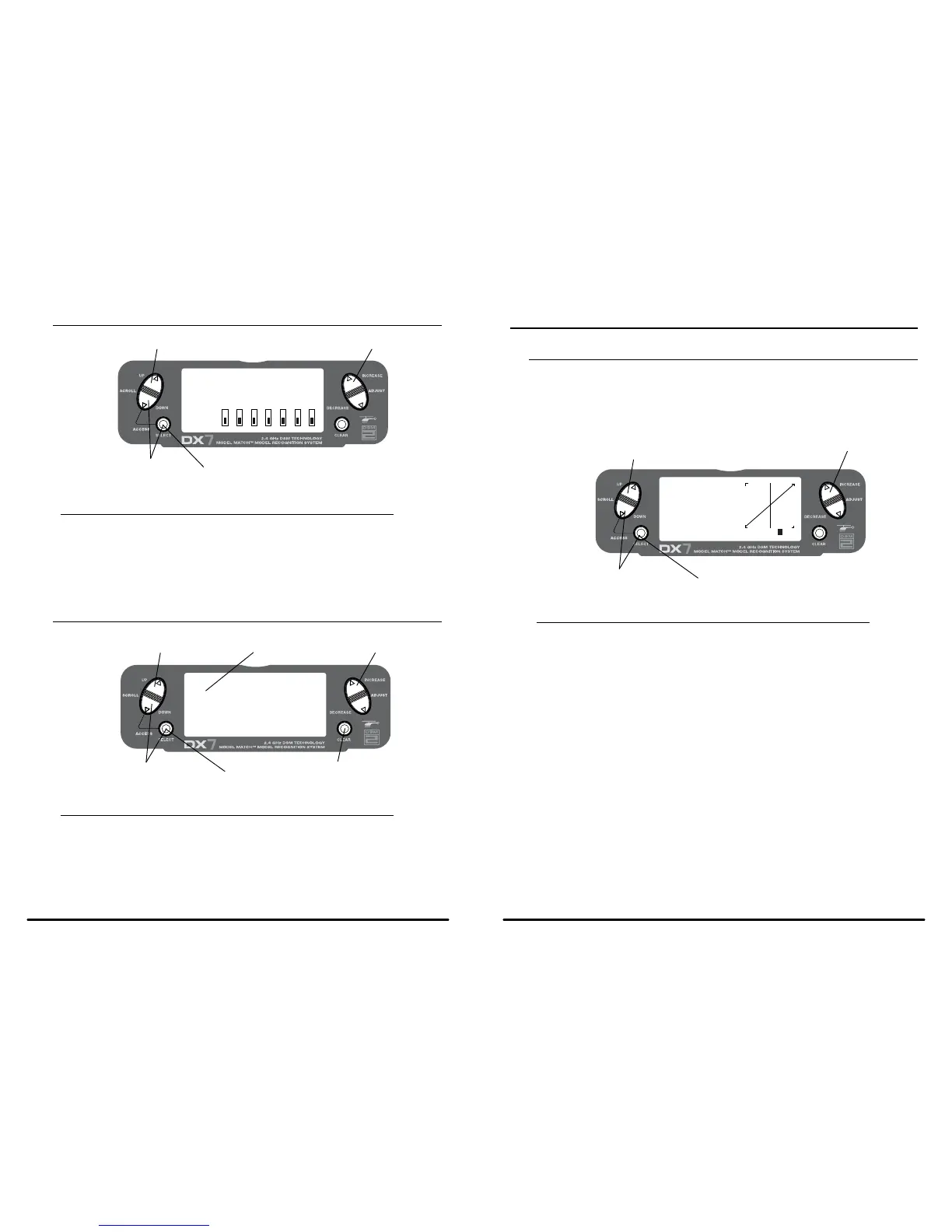

Servo Reversing
[REVERSING SW]
NORM
GEAR
≤
ch 1 2 3 4 5 6 7
REV.
Press to select REV. or NORMPress to enter REVERSE
Press to enter
Function Mode
Press to select
desired channel
To Access Servo Reversing
Turn the power on and press the DowN and SELECT keys simultaneously to enter the function mode.
Press the UP or DowN key until REVERSING SW appears on screen.
Press the SELECT key to select the desired channel then press the INCREASE or DECREASE key to select
REVERSE or NORMAL servo direction.
Travel Adjust
[TRAVEL ADJUST]
THRO
≥H 100%
L 100%
ELEV
D 100%
U 100%
AILE
L 100%
R 100%
RUDD
L 100%
R 100%
Press to adjust valueSelected channel
Press to enter
TRAVEL ADJUST
Press to enter
Function Mode
Press to return
value to default
Press to select
desired channel
To Access Travel Adjust
Turn the power on and press the DowN and SELECT keys simultaneously to enter the function mode.
Press the UP or DowN key until TRAVEL ADJUST appears on screen.
Press the SELECT key to select the desired channel, then press the INCREASE or DECREASE key while
holding the stick or switch in the desired direction that you wish to adjust the servo travel.
SPEKTRUM DX7 • HELICOPTER QUICK START GUIDE
Pitch Curve
Adjusting the Normal Pitch Curve
The DX7 offers four independent pitch curves, each with up to five adjustable points. This function allocates a
separate pitch curve setting during normal, stunt 1, stunt 2 and hold modes. Once the pitch curves are adjusted,
each can be activated in flight using the three-position flight mode and throttle hold switches. Each of the five
points of the pitch curve are independently adjustable from 0–100%. These five points correspond to low, 25%,
mid, 75% and high stick positions. See page 94 for more details on setting up pitch curves.
[PITCH CURVE]
≥Point-3
51 51
INH
1 2 3 HL
IN OUT
NORM
Press to change values
Press to enter
PITCH CURVE
Press to enter
Function Mode
Press to select
desired points
To Access the Pitch Curve Function
Turn the power on and press the DowN and SELECT keys simultaneously to enter the function mode.
Press the UP or DowN key until PITCH CURVE NORM appears on screen.
Press the SELECT key to select the stick position that you wish to adjust the pitch.
• L= Low
• 1= 25%
• 2= 50%
• 3= 75%
• H= High
Press the INCREASE or DECREASE keys to adjust the pitch value of the selected pitch position.
Recommended Initial Pitch Settings
• L= -4º
• 2= 5º
• H= 9º
Note: For more information about setting up pitch curves, see page 94.
