Model Select/Copy
The DX7 features a memory function that stores the programmed data for up to 20 models. Any combination of
up to 20 airplanes and/or helicopters can be stored in memory. A model name feature with up to eight characters
allows each model to be easily identified.

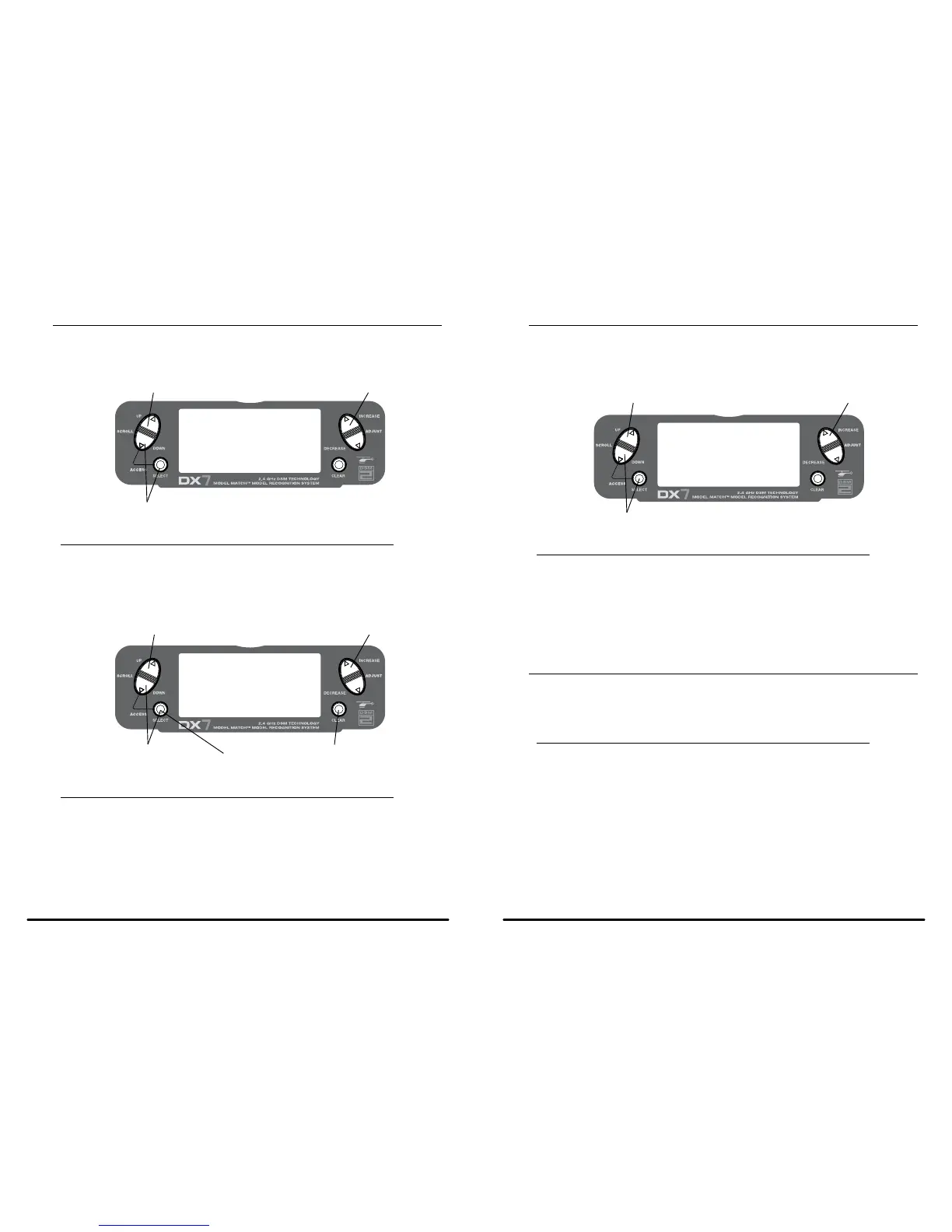

[MODEL SELECT]
◊SELECT
MODEL 1 T-REX
ACRO DSM
INCREASE and DECREASE keyUP and DOWN key
Hold while turning on transmitter
To Enter the Model Select Function
Press the DowN and SELECT keys simultaneously and turn the power switch ON to access the System Setup
Mode. Press the INCREASE or DECREASE key until the MODEL SELECT screen appears.
Press the INCREASE or DECREASE key to select the desired model memory.
[MODEL SELECT]
MODEL 1
HELI DSM
MODEL 2
ACRO DSM
◊COPY
≥
INCREASE and DECREASE key
Press to select
MODEL SELECT
Press to enter
function main screen
Press to enter
COPY screen
Press to copy
selected model
To Enter the Copy Function
• Press the DowN and SELECT keys simultaneously and turn the power switch ON to access the
System Setup Mode.
• Press the UP or DowN key until MODEL SELECT appears on screen.
• Press the SELECT button to enter the COPY screen.
• Press the INCREASE or DECREASE key to select the model that you wish to copy the model to.
• Press the CLEAR key to copy the model to the selected model memory.
Note: Be aware that the model that you copy to will have its memory replaced with the new
model and the programming information for that model will be erased.
Model Name
The Model Name function is used to input and assign the model’s name to a specific memory, allowing easy
identification of each model’s program. Each model’s name is displayed on the main screen when that model is
selected. Up to eight characters that include numbers and letters are available.
[MODEL NAME]
MODEL 1 ACRO
DSM <T-REX450>
≥
INCREASE and DECREASE key
Press to enter
MODEL NAME
Press to enter main screen
To Enter the Model Name Function
Press the DowN and SELECT keys simultaneously, then turn on the transmitter.
Press the INCREASE or DECREASE key until the MODEL NAME screen appears.
Press the SELECT key to move the cursor to the desired character’s position.
Press the INCREASE or DECREASE key to select the desired character.
ModelMatch
The DX7 features patent pending ModelMatch technology that prevents operating a model using the wrong
memory. This feature can prevent stripped servo gears, broken linkages and even a crash due to trying to
operate/fly a model using the wrong memory.
How ModelMatch Works
Each individual model memory has its own embedded code that is transferred to the receiver during binding.
The receiver actually learns the code for the specific model memory that has been selected during binding and,
when bound, will only operate when that model memory is selected. If a different (non-matching) model memory
is selected, the receiver simply won’t connect. This feature prevents trying to operate/fly a model using the
wrong model memory. The receiver can be reprogrammed to operate with any other model memory by simply
rebinding with the transmitter programmed to the desired model memory.
Note: If the receiver is turned on and the matching model memory is not selected the system will
not connect. Either select the matching model memory or rebind the receiver in the current model
memory to resume operation.
