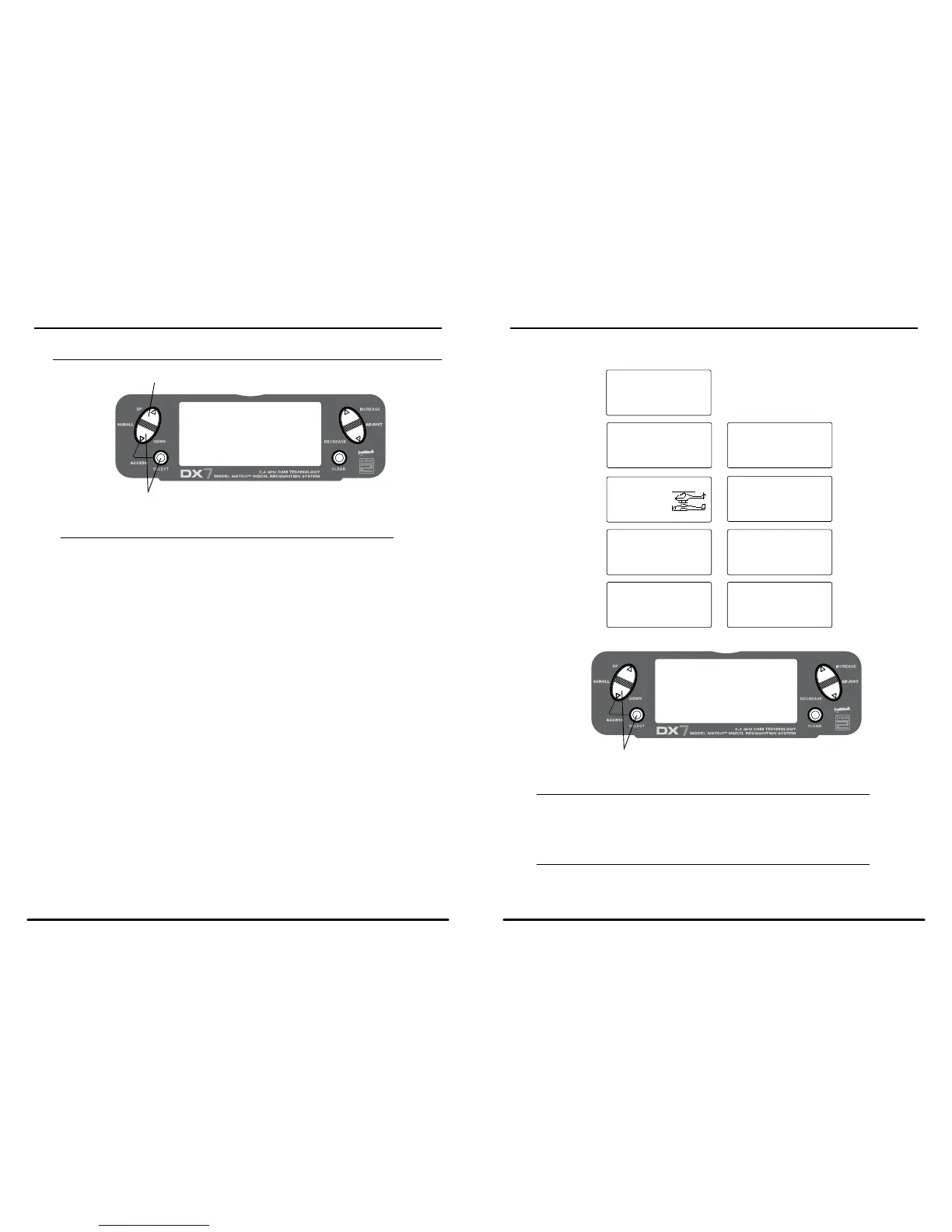

SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDESPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE
System Mode Functions
System Mode
[SYSTEM LIST]
º
TRAINER
º
TH RECOV.
º
INPUT SEL.
º
WING TYPE
º
D/R SW
◊MODEL SEL
º
MODEL NAME
º
TYPE SEL.
º
MODEL RES.
UP and DOWN key
Hold while turning on transmitter
To Enter the System List Mode
With the transmitter off, press and hold the DowN and SELECT keys simultaneously while turning the power
switch on to enter the System Mode.
While in the System Mode, press the UP and SELECT keys simultaneously to access the “List” mode.
Use the UP and DowN keys to Scroll through the available function.
Press DowN and SELECT to enter a selected function.
In this mode, servos are not activated.
By pressing the DowN and SELECT keys twice simultaneously, you can return to the main screen.
The list mode screens display all the functions onscreen allowing the access of any function without having to
scroll through each screen. Note that there are two list modes: a System Setup List Mode that displays all the
system setup functions, and a Function List Mode that displays all the system setup functions.
System Setup Mode Flowchart
System Mode includes programming functions that are normally used during setup. System programming
functions for airplanes include:
To Enter the System Setup Mode
• With the power switch off, press and hold the DowN and SELECT keys simultaneously.
• Turn on the power switch.
• The system will display the last screen that was used in system setup mode. You are now in
System Mode.
To Exit the System Setup Mode
• Press the DowN and SELECT keys simultaneously. The main screen will be displayed.
• Turn the transmitter off.
[MODEL NAME]
≥
MODEL 1 ACRO
DSM <EXTRA 300>
[MODEL SELECT]
◊SELECT
MODEL 1
ACRO DSM
[TYPE SELECT]
MODEL 1
HELI
◊ACRO
[TRAINER]
≥INH
[MODEL RESET]
MODEL 1 ACRO DSM
◊DATA RESET
INTEG-T
0:00:34
[D/R SWITCH SEL]
≥INDIVID
[WING TYPE]
≥FLAPERON OFF
DELTA OFF
V-TAIL OFF
[THRO RECOVERY]
INH
[INPUT SELECT]
≥AUX2:2P SW
AUX2 TRIM:INH
FLAP:SYSTEM
FLAP TRIM:ACT
Model Select (page 36)
Model Name (page 38)
Type Select
(page 39)
Model Reset (page 40)
Trainer (page 41)
Dual Rate Select Switch
(page 50)
Wing Type (page 43)
Input Select (page 44)
Throttle Recovery
(page 42)
[MODEL SELECT]
◊SELECT
MODEL 1
ACRO DSM
Hold while turning on transmitter to enter System Mode
