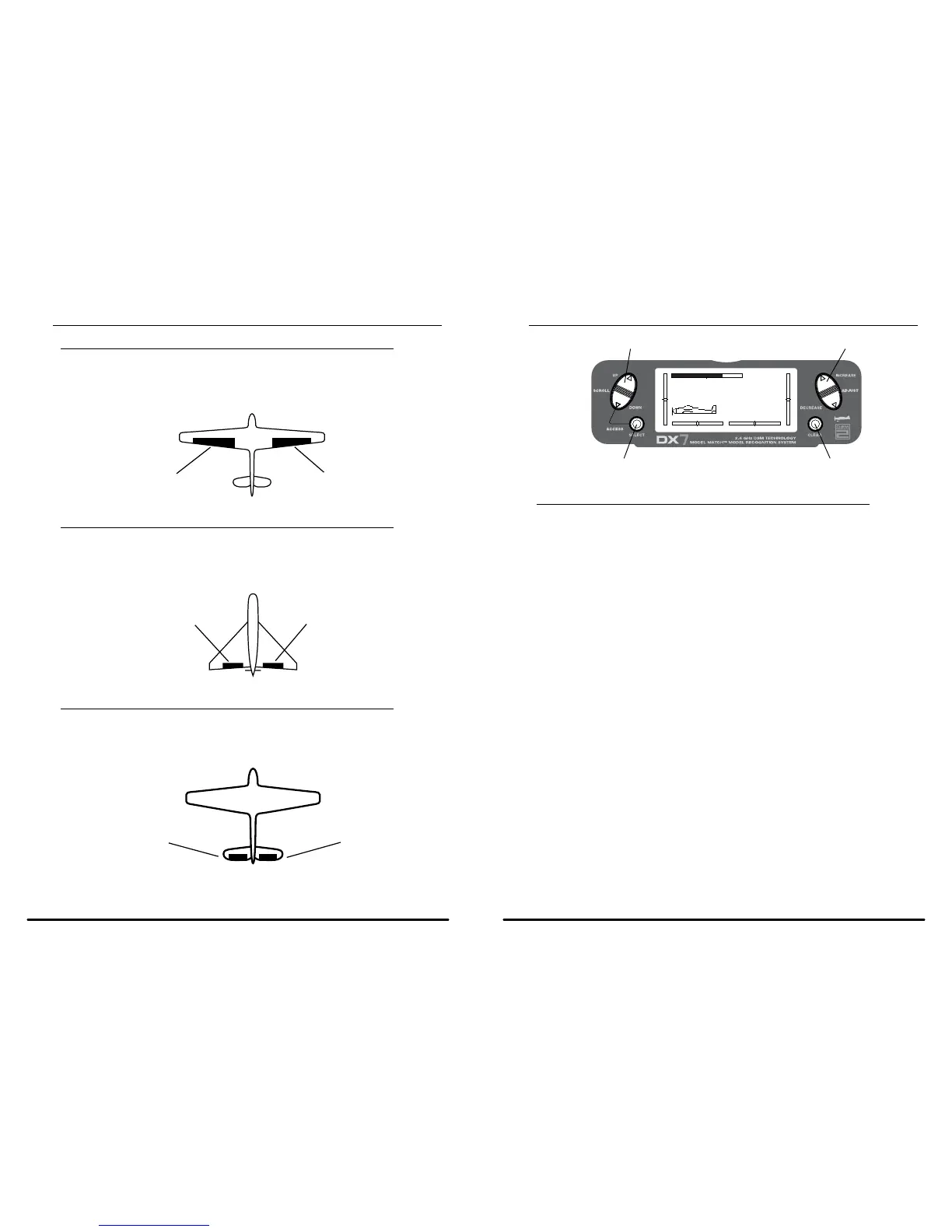

SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE
Wing Type (continued)
Flaperon Wing Type Servo Connections
• AILE servo port (right aileron)
• AUX1 servo port (left aileron)
AUX1 Servo Port
(Left Aileron)
AILE Servo Port
(Right Aileron)
Flaperon Wing Type Connection
Delta Wing Type Servo Connections
• ELEV servo port (right aileron)
• AILE servo port (left aileron)
AILE Servo Port
(Left Aileron)
ELEV Servo Port
(Right Aileron)
Delta Wing Type Connection
V-Tail Type Servo Connections
• RUDD servo port (right V-tail)
• ELEV servo port (left V-tail)
ELEV Servo Port
(Left V-Tail)
RUDD Servo Port
(Right V-Tail)
V-Tail Type Connection
Function Mode
MODEL 1
SPEKTRUM DX7 2.4GHz
10.6V
INCREASE and DECREASE keyUP and DOWN key
SELECT key CLEAR key
To Enter Function Mode
• From Main Screen Display press the DowN and SELECT keys simultaneously to enter the
Function Mode.
• Use the UP or DowN keys to select the desired function.
• Use the SELECT key to scroll to the desired channel.
• Use the INCREASE and DECREASE keys to change the values or positions of the selected channel.
• Use the CLEAR key to return the selected value to the factory default settings.

Spektrum DX7 Specifications

General

Interface	RF Wireless
Product color	Black
Remote control proper use	-
Built-in display	Yes
Maximum range	- m
Frequency band	2.4 GHz
Channels quantity	7 channels
Number of devices supported	250
Battery capacity	2000 mAh
Quantity per pack	1 pc(s)

Weight and Dimensions

Weight	- g
