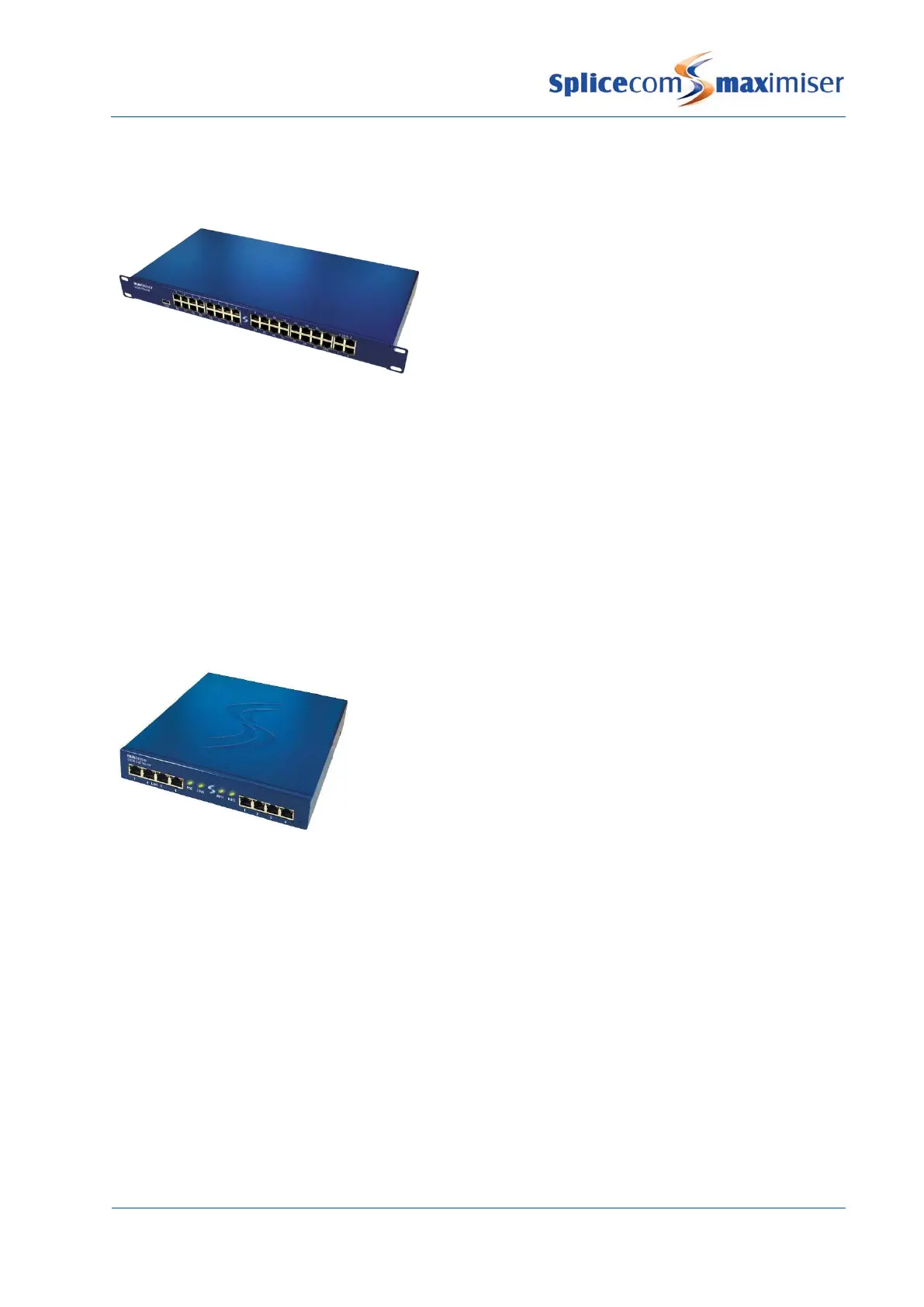

This module provides connection for standard analogue telephones:
• Available as 5315 providing 15 POTS ports or 5330
providing 30 POTS ports
• Support for DTMF analogue handsets, PCS 5/10, fax
machines and modems
• Caller Display support
• On-hook voltage 48V, off-hook current 25 mA, ring
voltage 44V rms
• 4 x 10/100 Mbps Ethernet ports, integral QoS LAN switch, auto-sensing for MDI/MDIX connectivity and
802.3af Power over Ethernet supported
• 1 x LAN Link port, 10/100 Mbps Full Duplex Ethernet port for connectivity to existing LAN or dedicated
LAN switch
• 1 x USB socket, allows wireless LAN connectivity via USB 2.0 WiFi adapter.
• 1 x power socket for 48 volts PSU supplied as standard
• Provided with PCS 60 or PCS 50 application to partner an analogue handset from a Windows or Mac
OSX PC
The 5108 Call Server is designed either for the smaller business or the small remote office as part of a
larger network. This module provides:
• PBX
• Dual BRI (4 channels) / NT ports (1 port enabled by licence)
• 4 x standard analogue (POTS) ports with support for DTMF
analogue handsets, PCS 5/10, fax machines and modems plus
Caller Display support
• IP Router
• 1 x LAN Link port, 10/100 Mbps Full Duplex Ethernet port for
connectivity to existing LAN or dedicated LAN switch
• 4 x 10/100 Mbps Ethernet ports, integral QoS LAN switch, auto-sensing for MDI/MDIX connectivity and
802.3af Power over Ethernet supported
• H.323 Gatekeeper and H.323 Gateway
• Hard disk storage for software, LDAP database (supporting 10,000 configuration entries), voicemail,
internal Web Server, Music on Hold and feature licenses
• 1 x Relay inputs for eg burglar alarm
• 1 x External relays for eg door entry system
• 1 x power socket for 48 volts PSU supplied as standard
• Supports H.450.2 (Call Transfer), H.450.4 (Hold), H.450.5 (Park) and H.450.7 (Message Waiting)
• SIP Proxy Server support
• Supports SIP and H.323 trunk services
• Supports NAT Traversal
• Native mode – G.711 64K with echo cancellation
• Can support up to 8 x G.729a Compression channels (requires licences)
• Supports 8 Users (or 12 Users with a 5108Plus licence – 4 analogue and 8 IP phone users, or 12 IP
phone users)
