Installation and Reference Manual
Platform Overview
2
Installation and Reference Manual v3.2/0410/6
The
imiser system provides a single telephony system for small-to-medium sized companies with
support for 4 to 10,000 extensions. It is a purely IP system supporting either traditional analogue or IP
Phones.
The 5 series

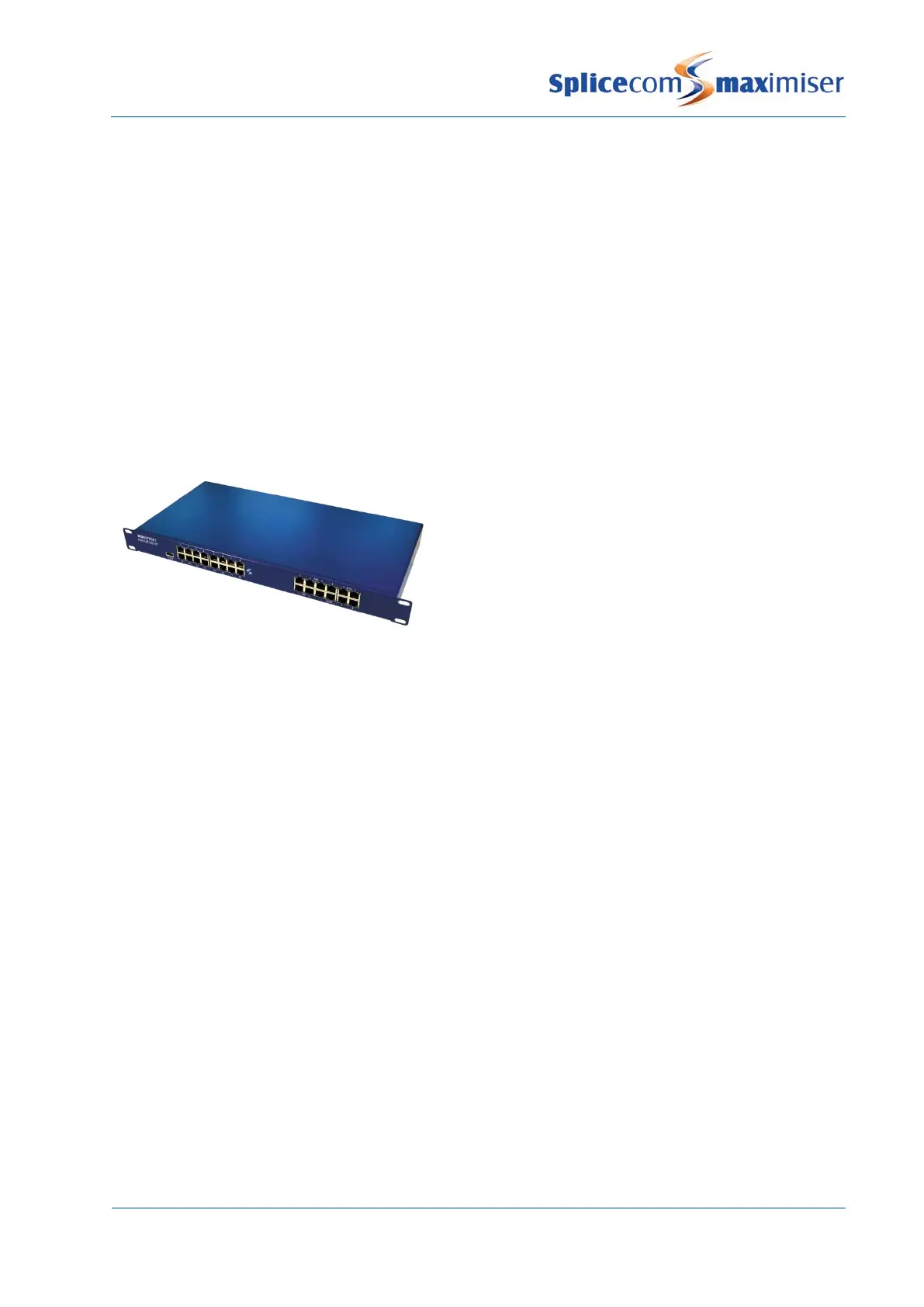

imiser range consists of the 5100 Call Server, 5300 Phone and 5108 Call Server. Each
module is 1u in height and can be mounted in a 19” rack.
The main control unit of the system, this module provides:
• PBX
• Quad BRI (8 channels) / NT ports (2 ports enabled by
licences)
• 2 x PRI (30 channels) / NT / DPNSS ports (1 channel
on each port enabled, the remaining channels can
be enabled by licences)
• 1 x LAN Link port, 10/100 Mbps Full Duplex Ethernet
port for connectivity to existing LAN or dedicated LAN
• 4 x 10/100 Mbps Ethernet ports, integral QoS LAN switch, auto-sensing for MDI/MDIX connectivity and
802.3af Power over Ethernet supported
• 16 x standard analogue (POTS) ports with support for DTMF analogue handsets, PCS 510/505/10/5, fax
machines and modems plus Caller Display support (8 ports enabled by licences)
• IP Router
• H.323 Gatekeeper
• H.323 Gateway
• Hard disk storage for software, LDAP database (supporting 10,000 configuration entries), voicemail,
internal Web Server, Music on Hold and feature licenses
• 1 x power socket for 48 volts PSU supplied as standard
• 2 x Relay inputs for eg burglar alarm
• 2 x External relays for eg door entry system
• 1 x USB port for software upgrade purposes
• Supports H.450.2 (Call Transfer), H.450.4 (Hold), H.450.5 (Park) and H.450.7 (Message Waiting)
• SIP Proxy Server support
• Supports SIP and H.323 trunk services
• Supports NAT Traversal
• Native mode – G.711 64K with echo cancellation
• Can support up to 68 x G.729a Compression channels (requires licences)
• Supports 500 Users (analogue and/or IP)
• Up to 200 Call Servers per system (max 10,000 extensions, analogue and/or IP and max 5,000 trunks)
