Installation and Reference Manual
Platform Overview
4
Installation and Reference Manual v3.2/0410/6

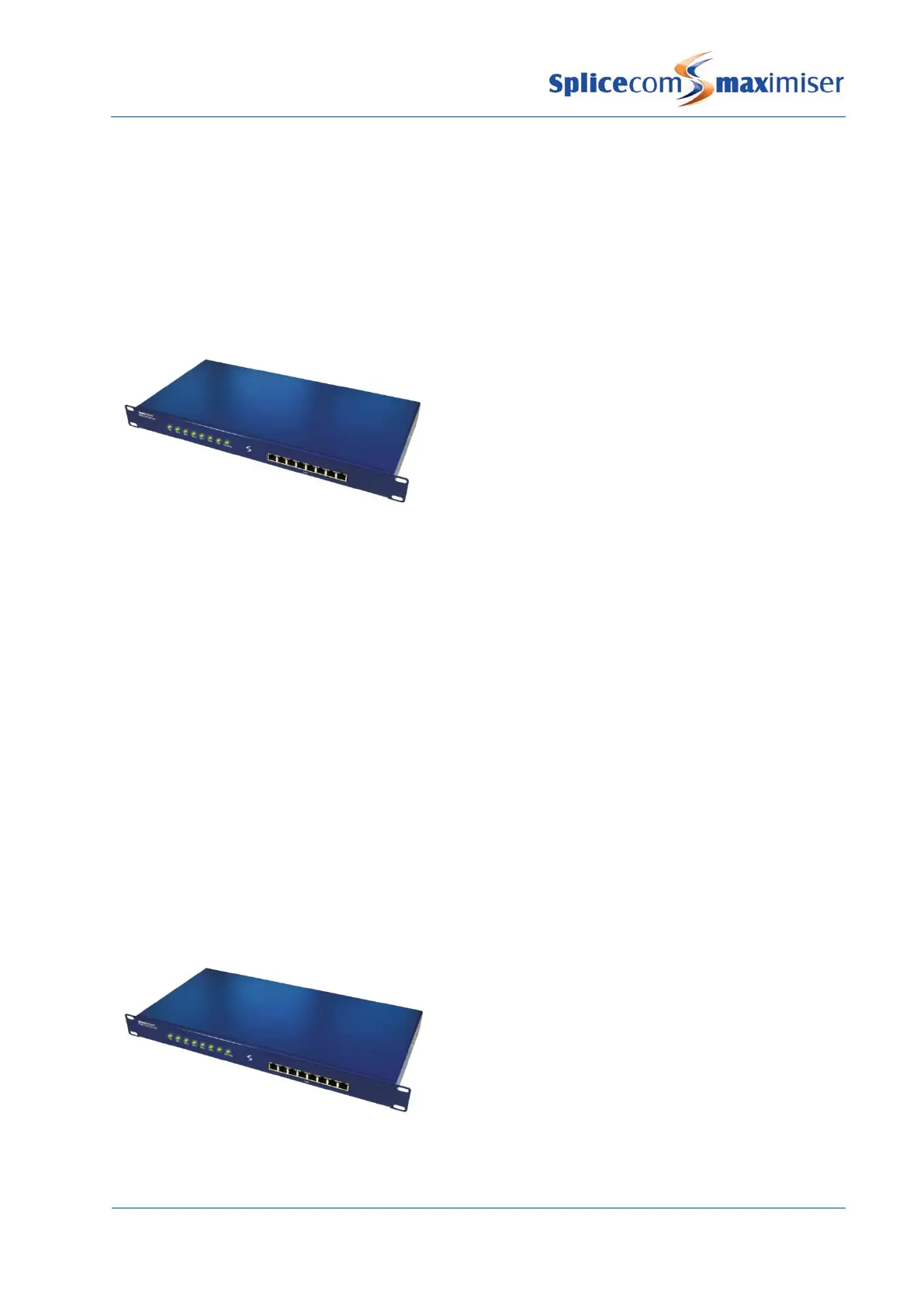

The 4 series
imiser system is made up of 3 components – 4100 Call Server, 4200 Trunk and
4300 Phone. The 4140 Remote Call Server combines the functionality of all three of these modules in a
single unit. Each module is 1u in height and can be mounted in a 19” rack.
The main control unit of the system, this module provides:
• PBX
• Quad BRI (8 channels) / NT ports
• Optional single PRI (30 channels) / NT / DPNSS port
• IP Router
• 8 port QoS 10/100 Base-T switch
• Rear 10/100 LAN port
• WAN port V.11 - megastream 2 Mb
• H.323 Gatekeeper
• H.323 Gateway
• Hard disk storage for software (10 GB), LDAP database – supporting 10,000 User entries, voicemail,
Internal Web Server, Music on Hold and feature licenses
• 48 volts PSU (so can purchase commercial UPS)
• 2 x Relay inputs for eg burglars alarms
• 2 x External relays
• Supports H.450.2 (Call Transfer), H.450.4 (Hold), H.450.5 (Park) and H.450.7 (Message Waiting)
• SIP Proxy Server support
• Supports SIP and H.323 trunk services
• Supports NAT Traversal
• LAN PWR port to provide Power over Ethernet (PoE) for the PCS 400/100.
• Native mode – G.711 64K with echo cancellation
• Optional Compression card supporting G.729 8K for WAN links
• Supports 300 Users (analogue and/or IP)
• Supports 4 Trunk modules
• Up to 100 Call Servers and Trunk modules per system (max 5,000 extensions, analogue and/or IP)
This module provides additional ISDN and WAN ports:
• Quad BRI (8 channels) / NT ports
• Optional single PRI (30 channels) / NT / DPNSS port
• WAN port V.11 - megastream 2 MB
• 8 port QoS 10/100 Base-T switch
• Integral H.323 Gateway
• IP Router
• LAN Power port for Power over Ethernet
• Up to 4 Trunk Modules per Call Server
• Up to 100 Trunk Module and Call Servers per system
