5.2 PLME control menu
The physical sublayer management entity control menu offers 2 options: set the RX and TX
chain status and get the status of the line (carrier sense).

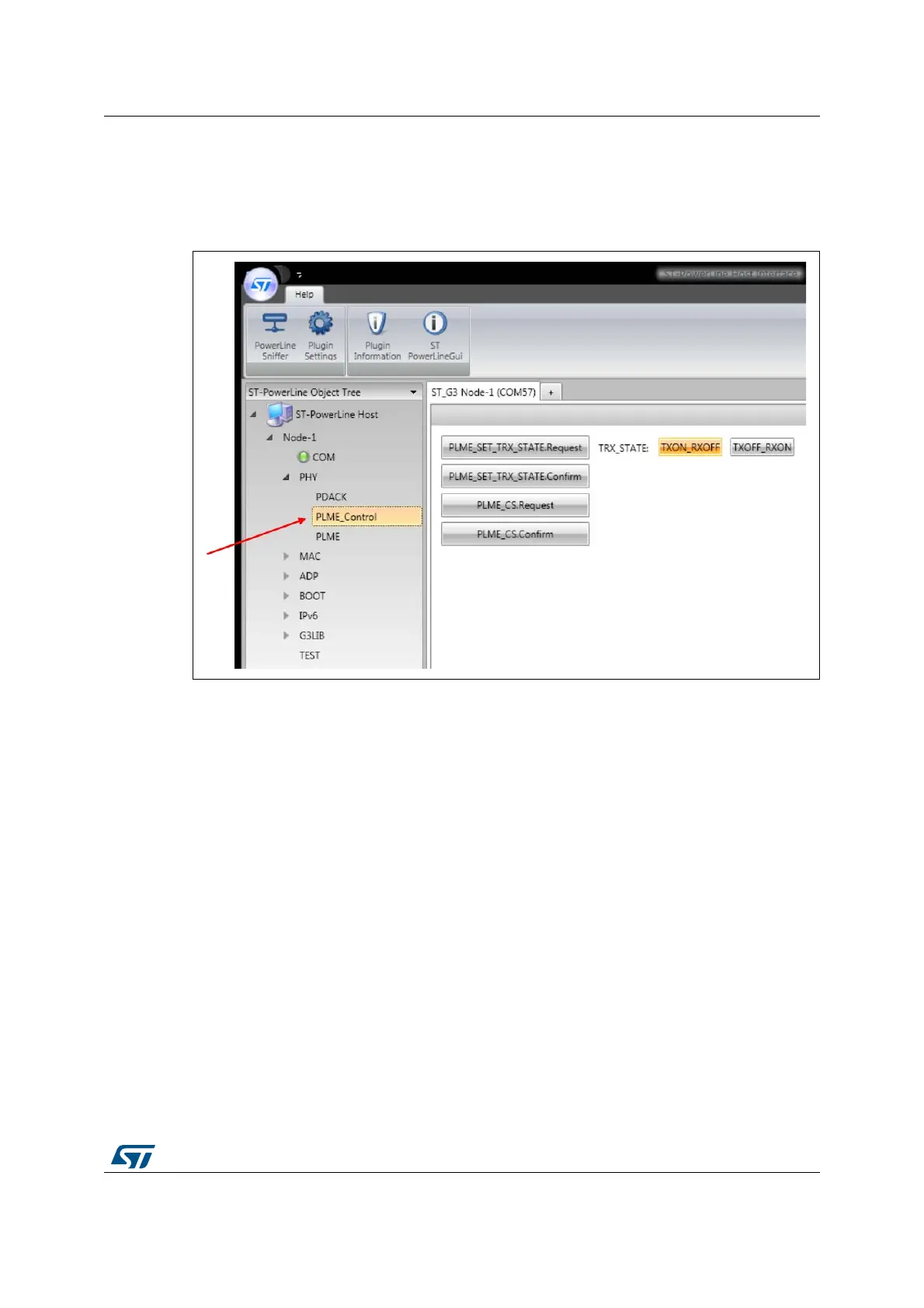

Figure 11. PLME control menu
Concerning the PLME_SET_TRX_STATE.Request command, two options may be selected:
 TXON_RXOFF: used to configure the device in transmission
 TXOFF_RXON: used to configure the device in reception.
