ADP menu UM1811
30/52 DocID026814 Rev 1
7 ADP menu
To be able to execute ADP commands, the G3-PLC platform working mode needs to be
configured to the ADP mode.
To do this, simply go to the G3LIB panel as shown in Figure 18. Choose the ADP_MODE
from the available modes (1) and press the HI-MODE-SET.Request button (2).

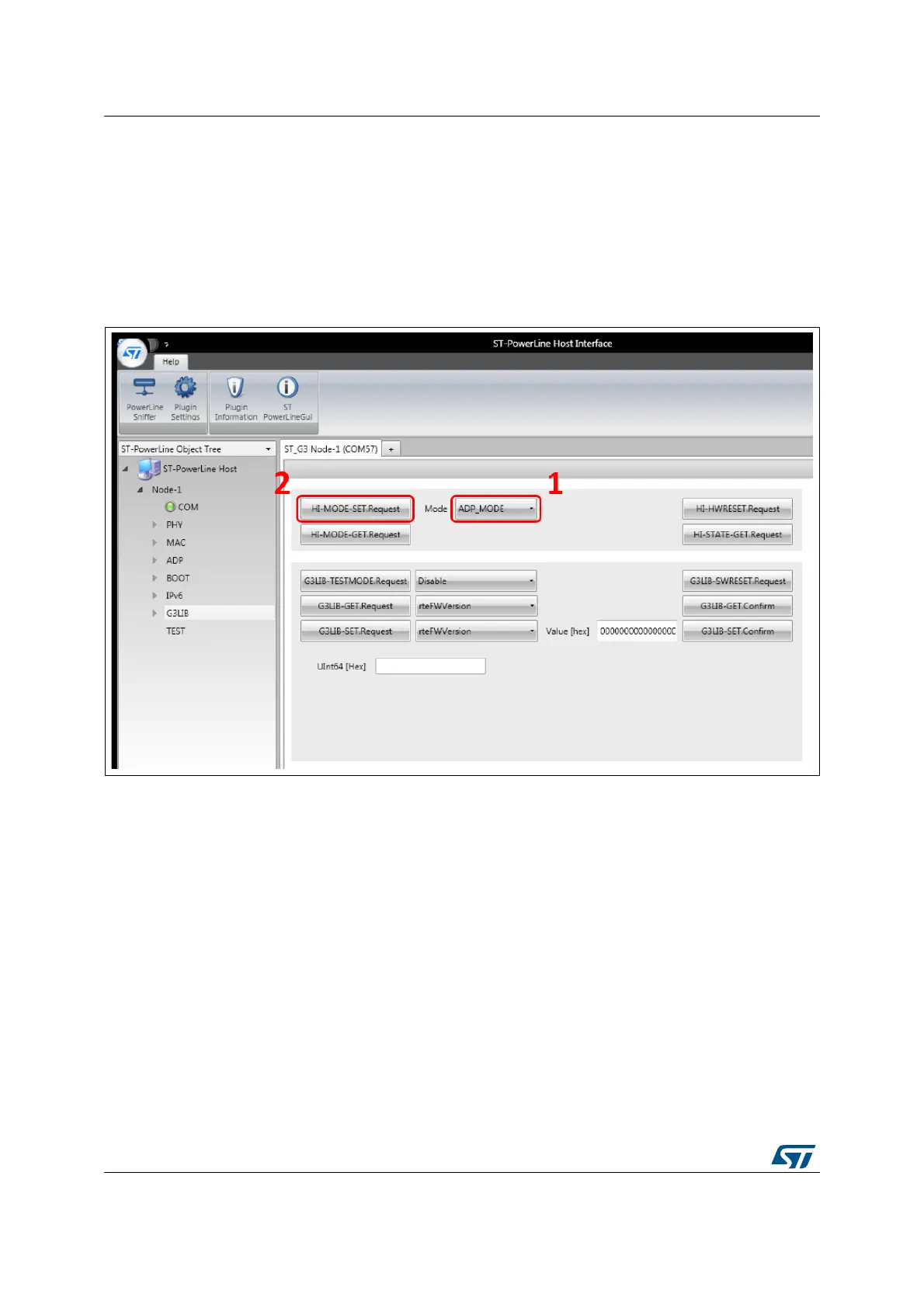

Figure 18. Configure the host interface in ADP mode
Once the ADP mode is selected, the following menus are accessible:
ADP root menu: command panel to send data at the ADP level
ADPM control: command panel to control the ADP layer
ADPM LBP: adaptation sublayer management for 6LoWPAN bootstrapping protocol
ADPM IB: adaptation sublayer management information base.
