ADP menu UM1811
32/52 DocID026814 Rev 1
7.2 ADPM control menu
The ADP layer management entity control menu offers the management layer commands of
the G3-PLC ADP layer, as shown in Figure 20.

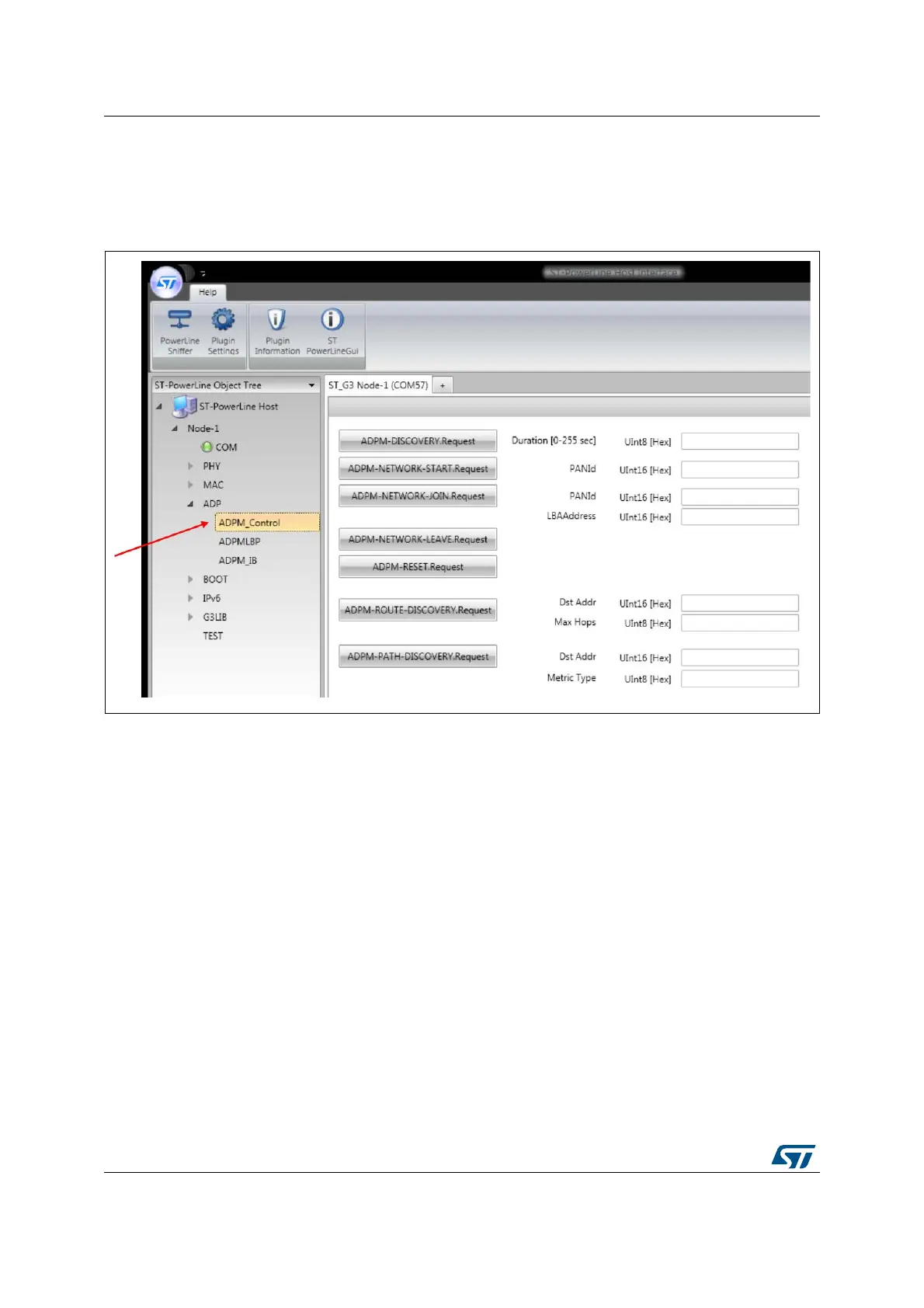

Figure 20. ADPM control menu
This menu allows the user to execute the following commands:
ADPM-DISCOVER.Request: perform
s a discovery procedure for the duration entered
by the user in the free text area.
ADPM-NETWORK-START.Request: start
s a new powerline area network on the server
side with the specified PANId.
ADPM-NETWORK-JOIN.Request: this primitive allows the next upper layer to join
a network identified by PANId through a low bootstrap agent (short address).
ADPM-NETWORK-LEAVE.Request: this primitive allows the next upper layer to leave
an existing network.
ADPM-RESET.Request: it resets the ADP layer.
ADPM-ROUTE-DISCOVERY.Request: request
s the discovery of the route towards
a destination. The user needs to enter the destination address to look for and the
maximum allowed number of hops.
ADPD-PATH-DISCOVERY.Request: request
s the discovery of the path towards
a destination. The user needs to enter the destination address to look for and the
metric type for the link cost evaluation.
