Basic G3 operations UM1811
48/52 DocID026814 Rev 1

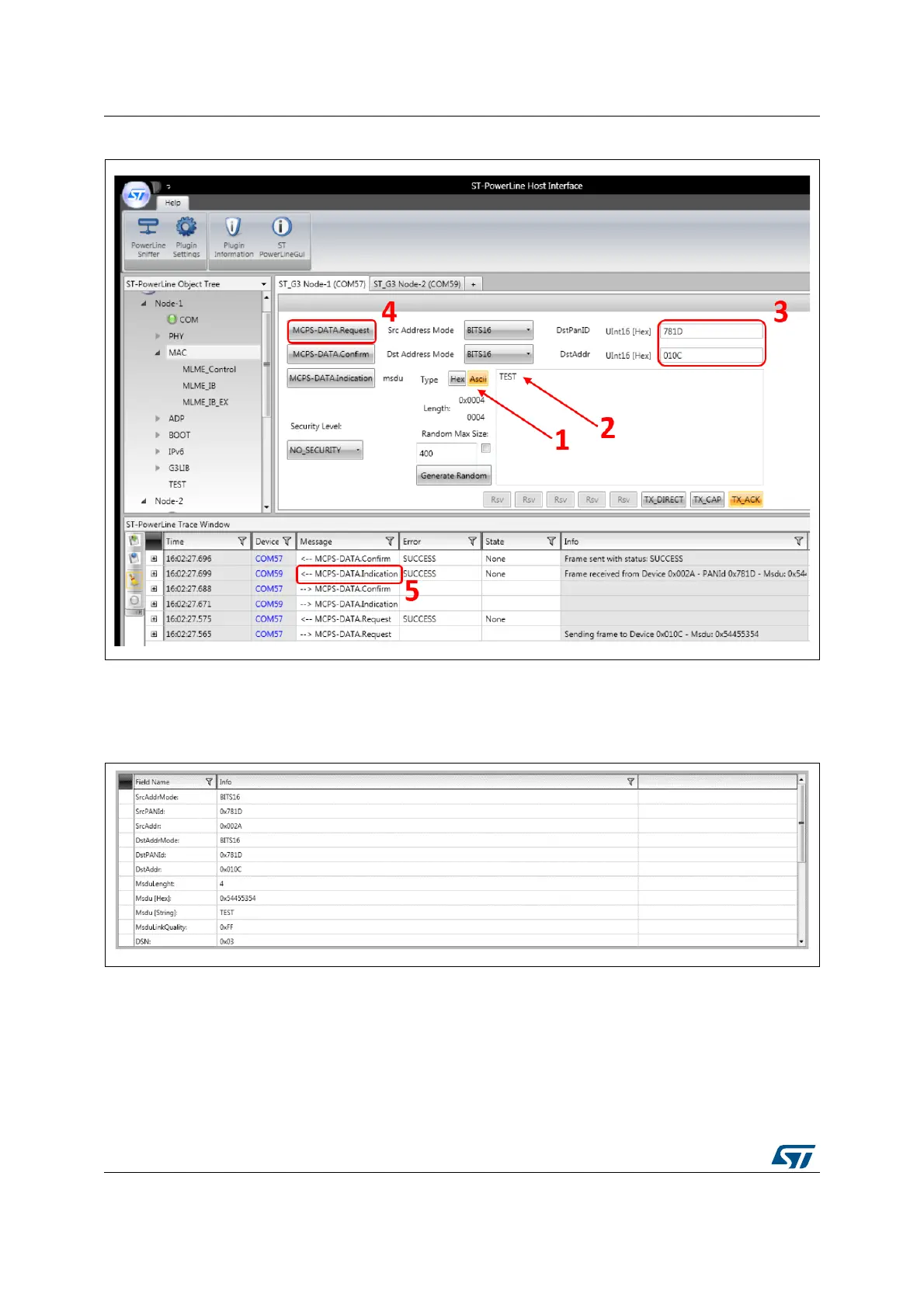

Figure 39. Send MAC data from TX to RX
To check that the transmission was successful, look for the MCPS-DATA.Indication
message in the trace window with the SUCCESS status. When hovering over this message
its detailed content appears in a new window, as represented in Figure 39.
Figure 40. MCPS-DATA.Indication message details
