6 MAC menu
To be able to execute MAC commands, the G3-PLC platform working mode needs to be
configured to the MAC mode.
To do this, simply go to the G3LIB panel as shown in Figure 13. Choose the MAC_MODE
from the available modes (1) and press the HI-MODE-SET.Request button (2).

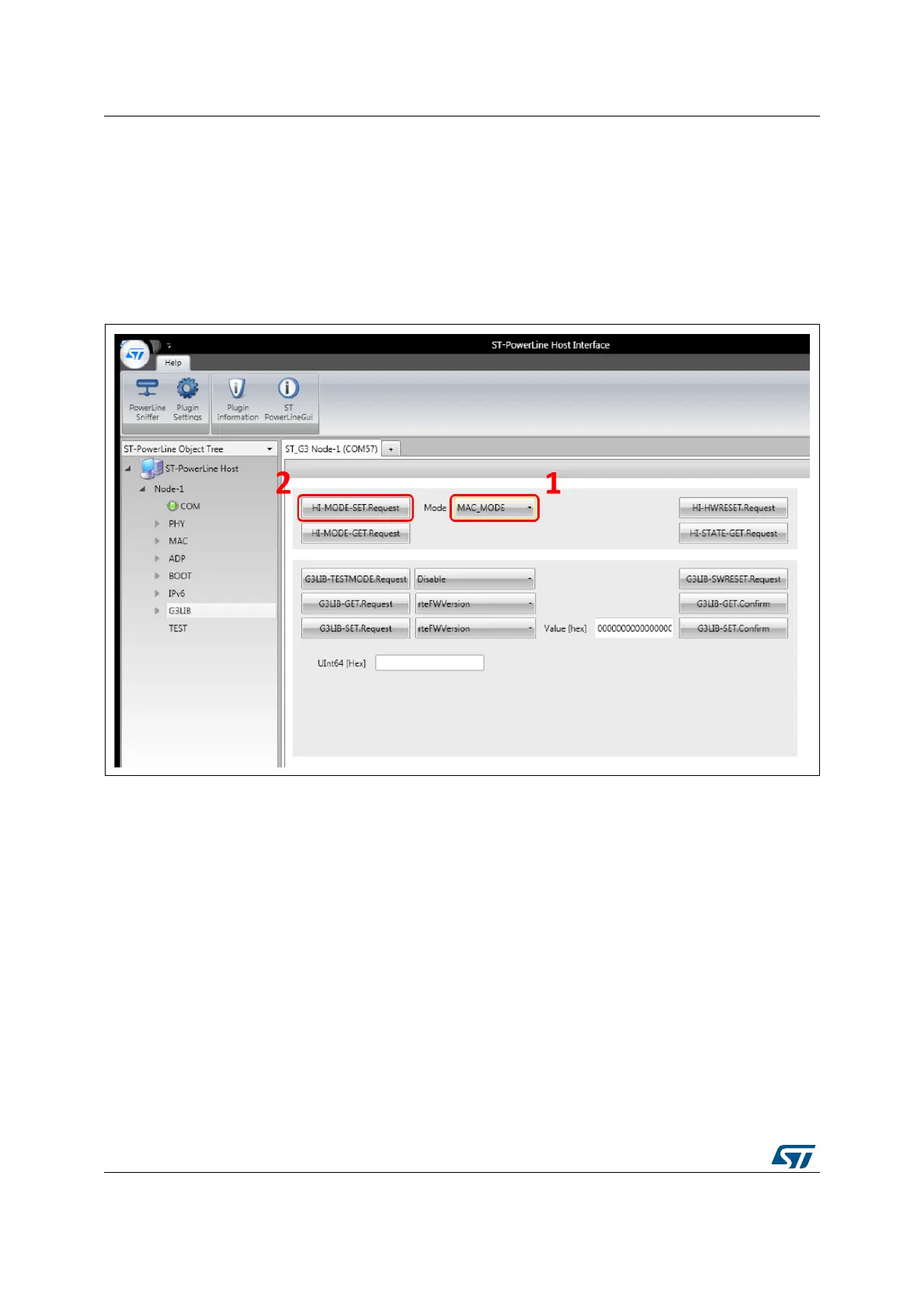

Figure 13. Configure the host interface in MAC mode
Once the MAC mode is selected, the user can access one of the following menu:
 MAC root menu: a command panel that will allow to send data at the MAC level
 MLME control: a MAC sublayer management entity control panel
 MLME IB: a MAC sublayer management entity information base panel
 MLME IB EX: a MAC sublayer management entity information base explorer panel.
