ST G3-PLC - MLME IB Menu; Figure 16. MAC IB Menu

DocID026814 Rev 1 25/52
UM1811 MAC menu
52
 MLME-START.Request: starts a new powerline area network in case of the G3-PLC
platform acts as coordinator. The PANId needs to be specified in the corresponding text
box area.
 MLME-START.Confirm: forces generation of a confirm message (if automatic event is
disabled).
6.3 MLME IB menu
The MAC layer management entity menu offers the possibility to read and write the
information base parameters of the G3-PLC MAC layer, as represented in Figure 16.

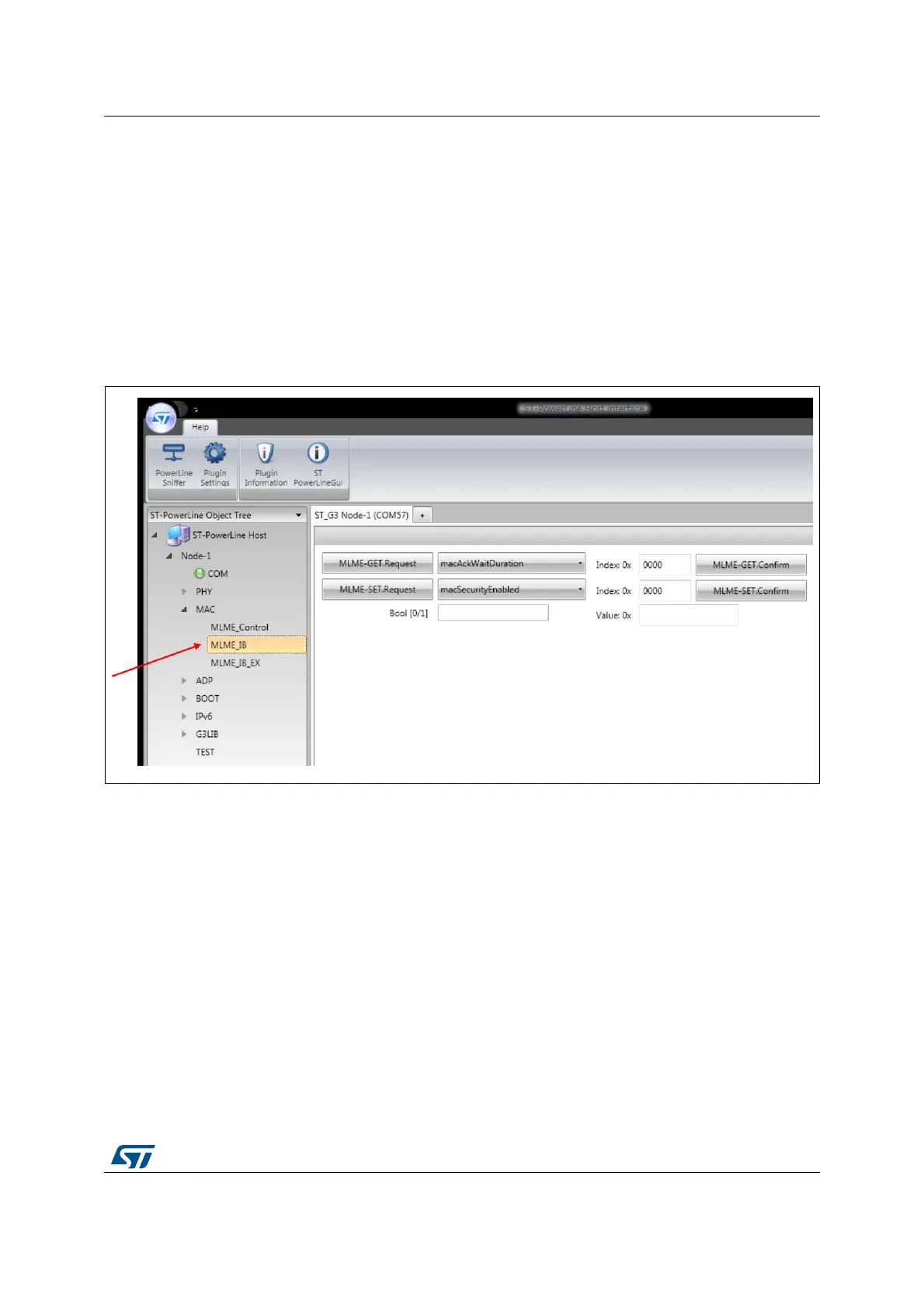

Figure 16. MAC IB menu
From this menu, the following commands are available:
 MLME-GET.Request: command to read one MAC entity parameter
 MLME-SET.Request: command to write one MAC entity parameter
 MLME-GET.Confirm: forces generation of a MLME-GET.Confirm message (if automatic
event is disabled)
 MLME-SET.Confirm: forces generation of a MLME-SET.Confirm message (if automatic
event is disabled).
