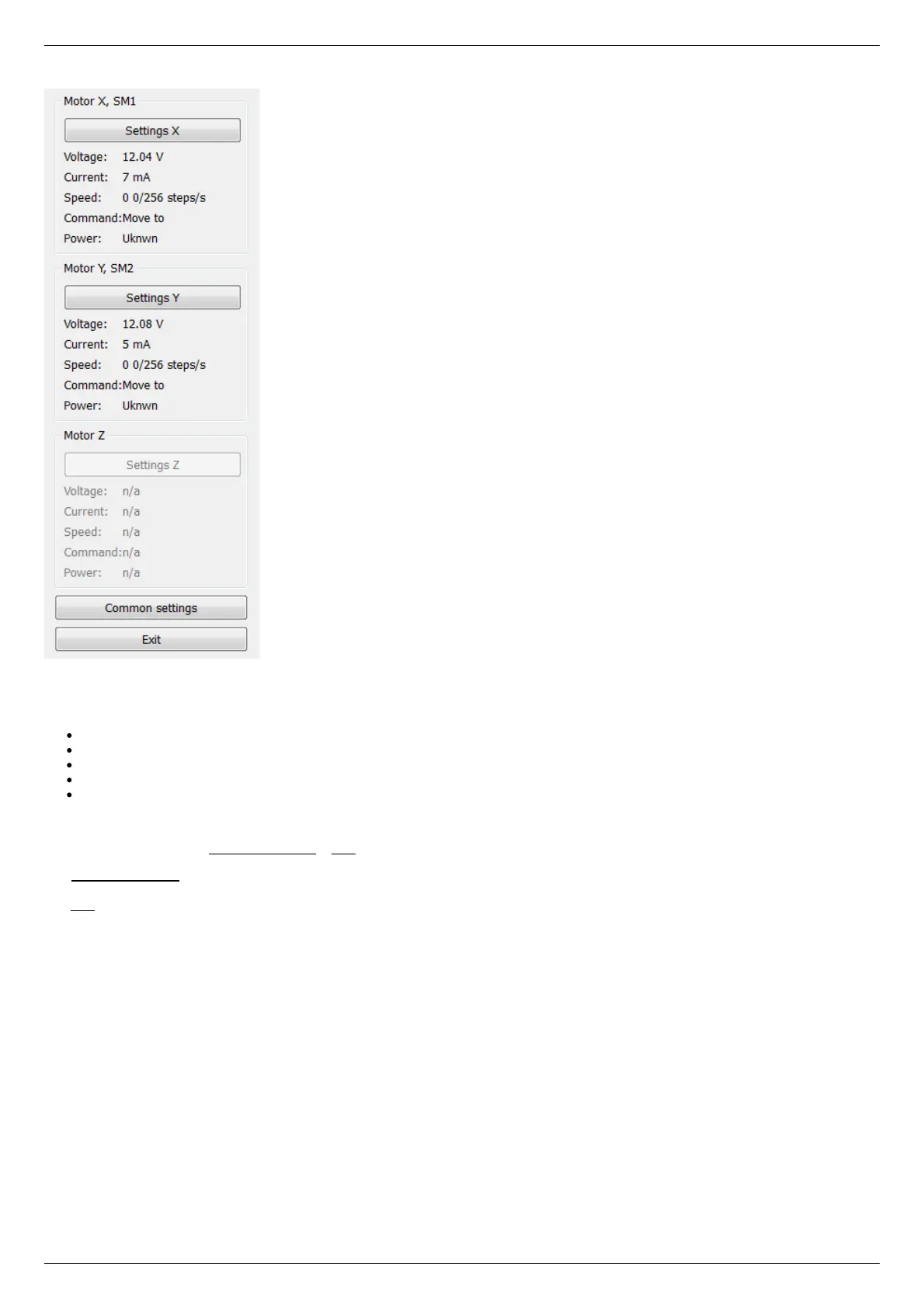

Block of status indicators for controllers and motors
Here are the three blocks of indicators of controllers and motors for axes X, Y and Z. In the title of the block the serial number of
corresponding controller is displayed. Each block contains the following indicators:
Voltage - the voltage at the power section of the motor.
Current - current power consumption of the motor.
Speed - current speed of the motor.
Command - the last command of the controller that was executed, or is being executed.
Power - the state of the motor power supply.
The buttons Settings X, Y, Z open the configurations of a controller, which corresponds to this axis, see Application Settings.
Below the indicator blocks Common settings и Exit buttons are located.
The Common settings button opens a dialog window with general settings. Here you can choose which controller serial numbers are
considered "X", "Y" and "Z" axes, also this window contains logging settings.
The Exit button performs proper shutdown, see Correct shutdown.
