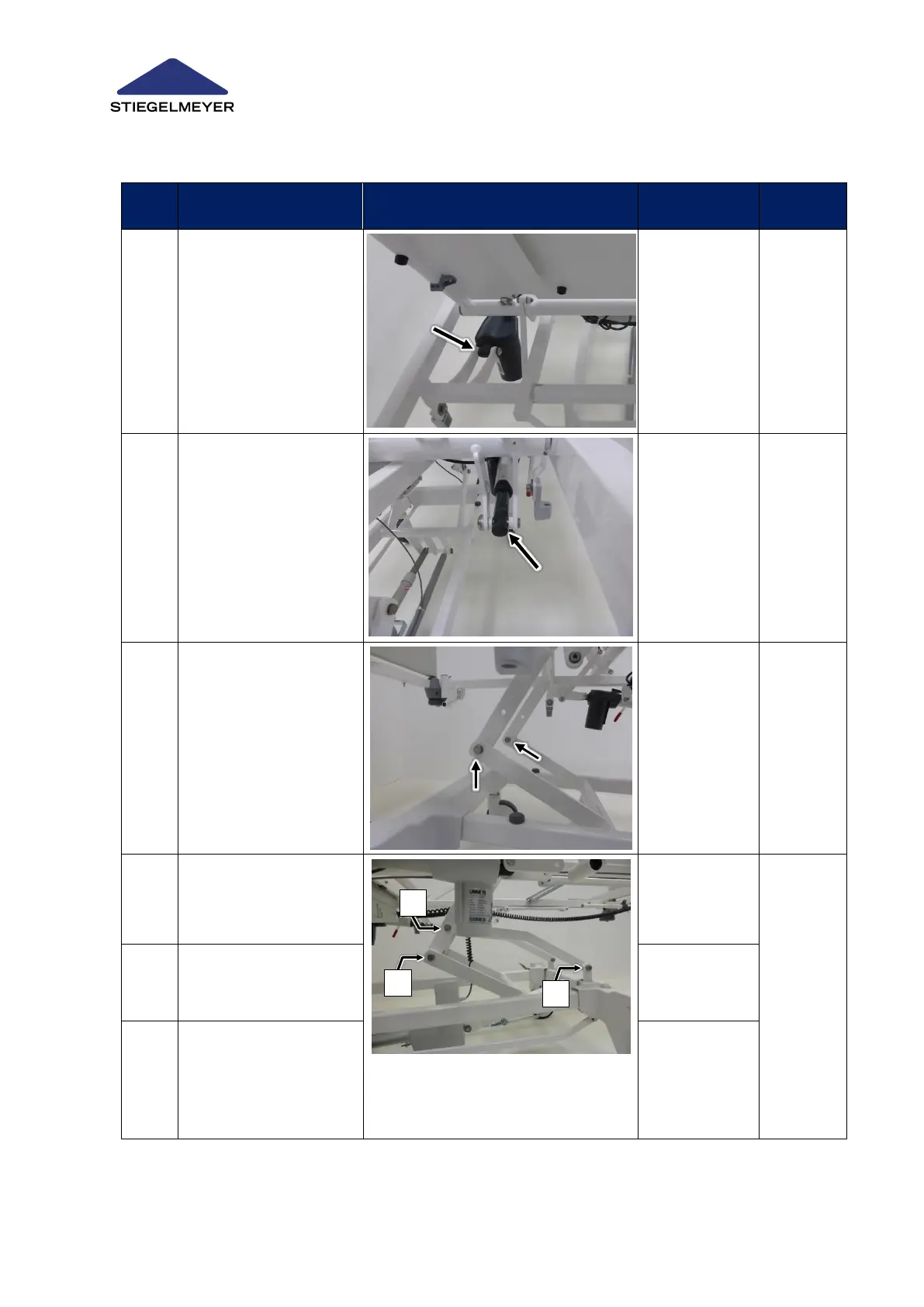

Stiegelmeyer Deka - Page 82

Maintenance
Servicing Points
82
Instruction Manual
No.:
Description and Quan-
tity of Component
Illustration
Lubrication
Spots
Lubricant
10
Motor eye take-up,
thigh rest
1 x
A
11
Lifting pipe take-up,
thigh rest
1 x
A
12
Pivot between chassis
crank and mattress
frame crank guide lug
2 x at head
end
A
13
Pivot between chassis
crank and mattress
frame crank guide lug
(A)
2 x at foot end
A
14
Pivot between mattress
base frame crank and
chassis guide lug (B)
2 x at foot end
15
Pivot between chassis
and mattress frame
crank guide lug (C)
2 x at foot end
B
A
C
