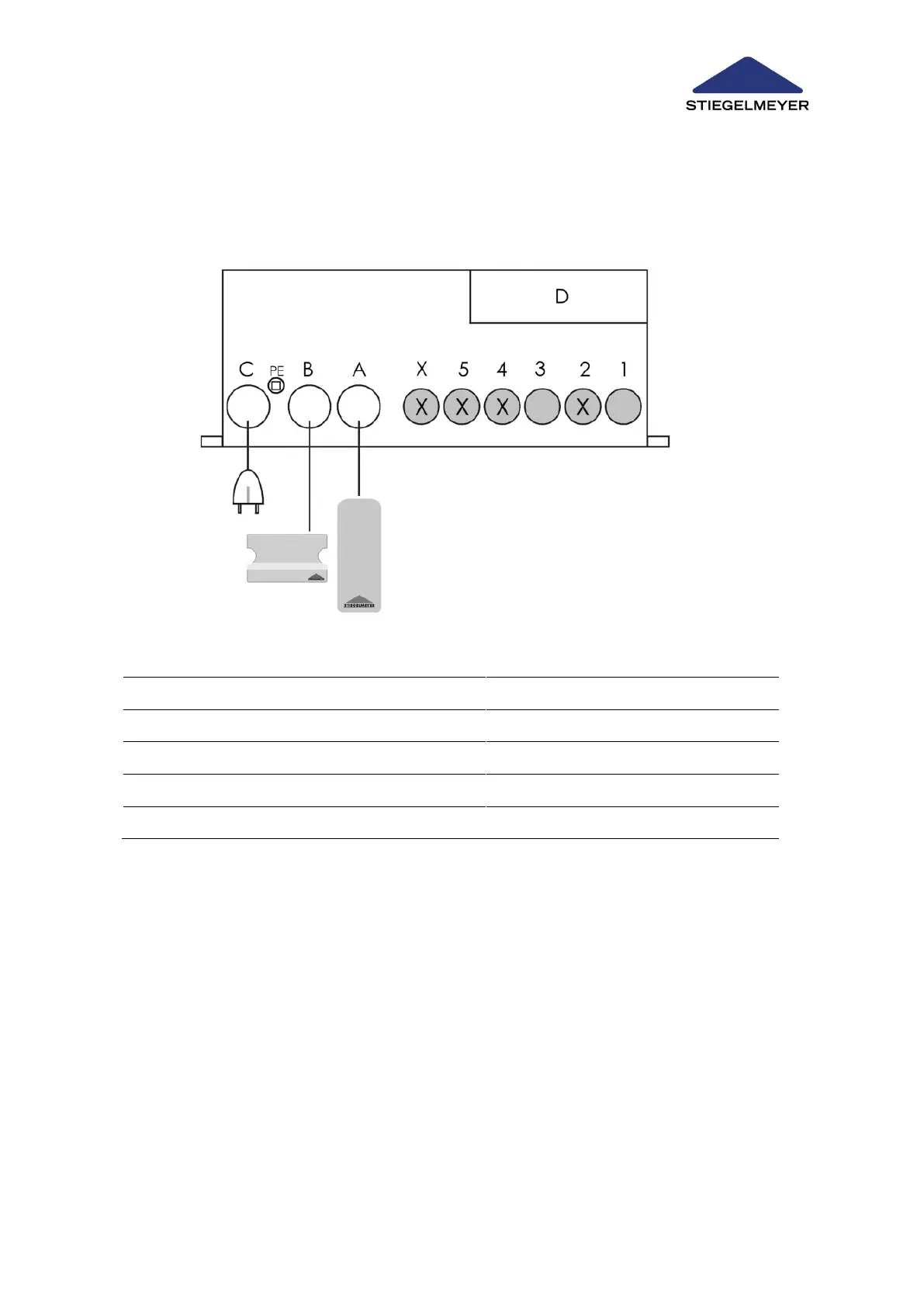

14.2.2 Variant EM2 Plug Assignment
Two actuators (EM2) for adjusting the backrest and mattress base height.
1
Backrest motor
2
Not assigned
3
Mattress base height motor
4
Not assigned
5
Not assigned
X
Not assigned
A
Handset
B
Locking box (optional)
C
Mains cable
D
Battery (optional)
PE = Earth wire connection
