Stiegelmeyer Deka - Variant EM3 Plug Assignment

Replacement of Electrical Components
Assignment of Control Unit Terminals
90
Instruction Manual

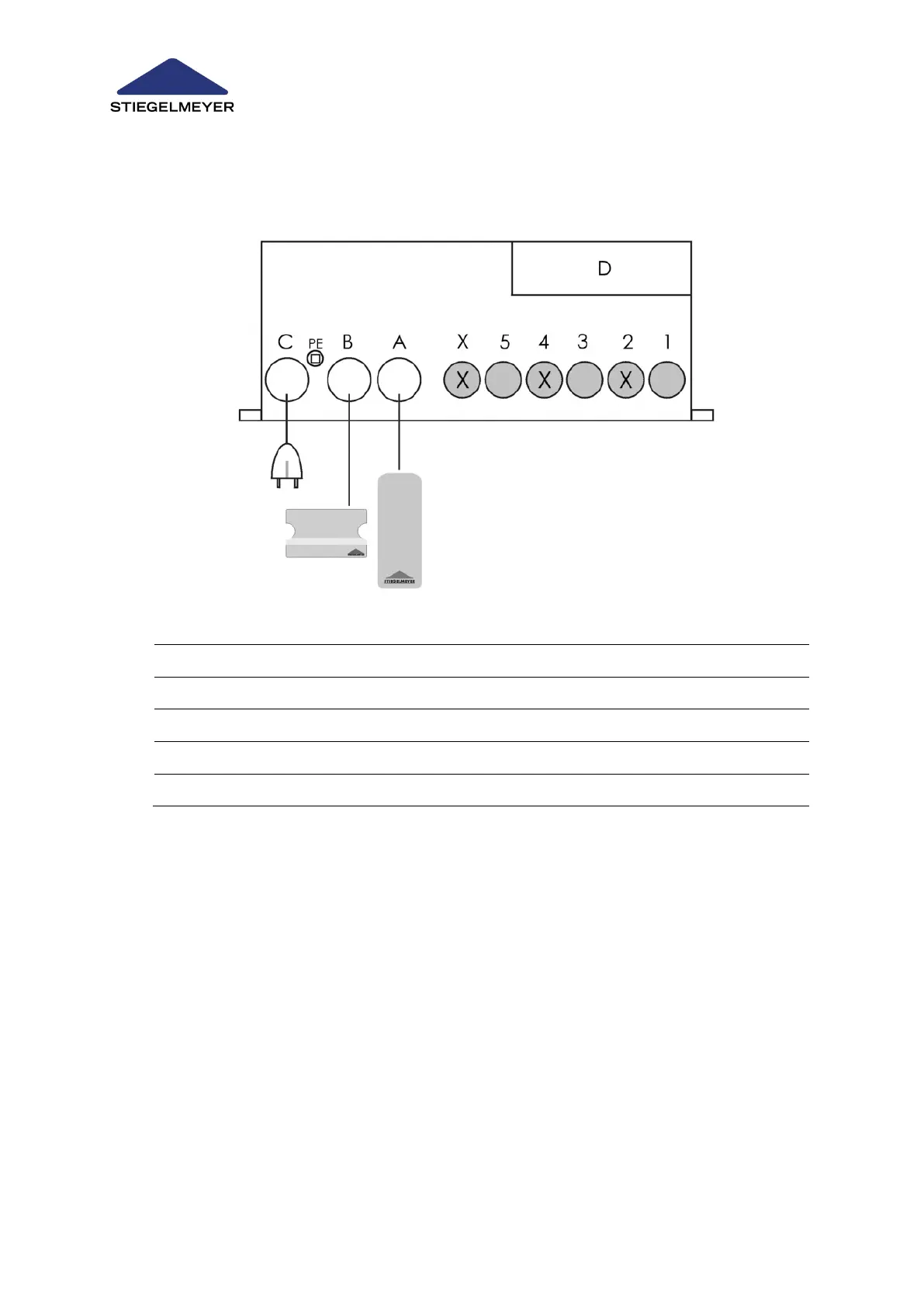

14.2.3 Variant EM3 Plug Assignment
Three actuators (EM3) for adjusting the backrest, thigh rest and mattress base height.
1
Backrest motor
2
Not assigned
3
Mattress base height motor
4
Not assigned
5
Thigh rest motor
X
Not assigned
A
Handset
B
Locking box (optional)
C
Mains cable
D
Battery (optional)
PE = Earth wire connection
