4 Operation
Emergency operation
NOTE
The lifting points and methods may vary for
special versions of industrial trucks. If you
have any questions, contact the authorized
service partner.

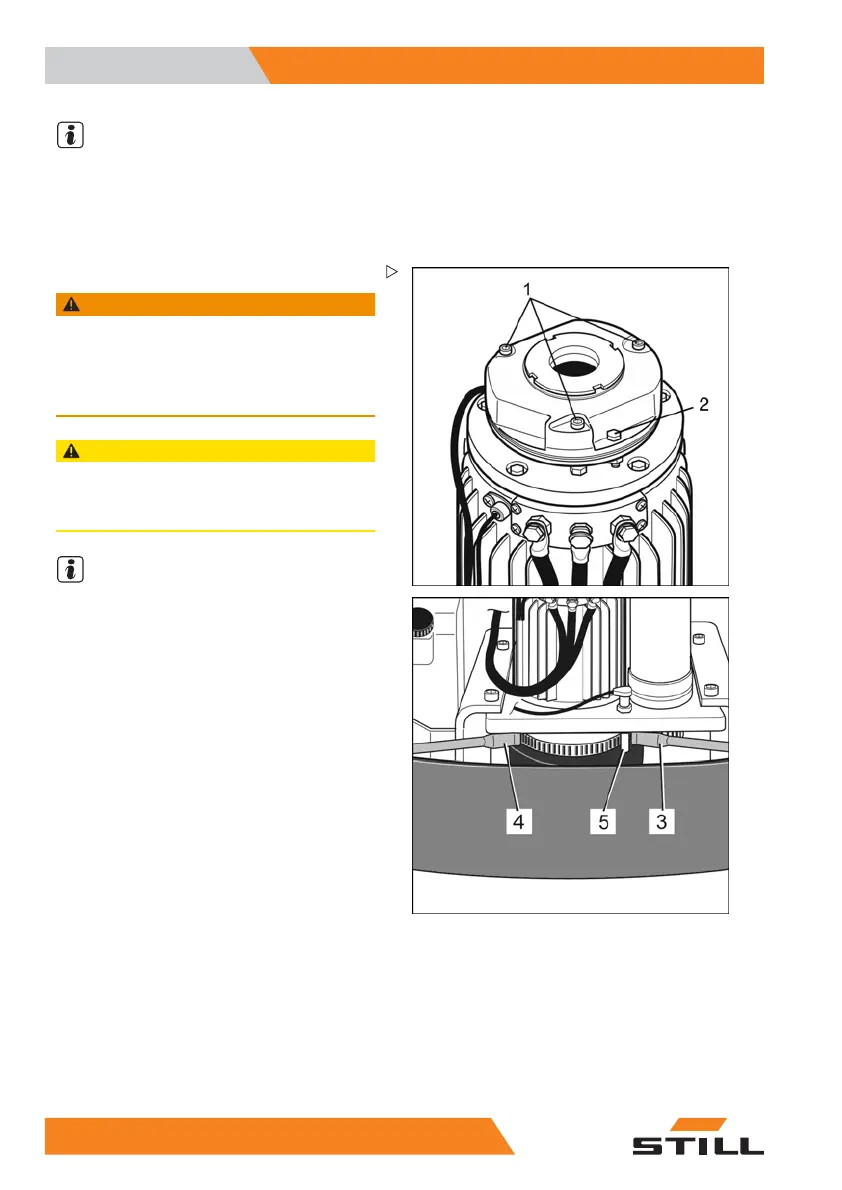

Emergency steering
WARNING
Danger of injury
Before the steering is activated manually as descri-
bed below, switch off the key switch and disconnect
the battery male connector. Secure the jacked-up
industrial truck using support blocks or axle stands.
CAUTION
Risk of damage to property
Under no circumstances must the assembly lever
be placed on the 0° sensor (5).
NOTE
If the industria
l truck is jacked up high enough
on the drive side
, the steering can be turned
with the help of a
n assembly lever. The cab
must also be raise
d sufficiently so that it is not
supported on the gro
und.
• Jack up the industrial truck. The drive wheel
must be free of the ground.
• Obtain a suitable assembly lever. The
assembly lever must have a rounded,
smooth front edge.
• Cover the assembly lev
er with grease at the
point of engagement.
• Turn the steering sprocket one tooth at a
time using the assembly lever. Find suitable
abutments for the assembly lever.
• If the steering is stiff, cancel the emergency
steering and correct the stiff movement.
72 5
212 804 3001 EN - 02/2017
