SatLink VSAT User Guide
Publication no. 101557
Rev 14.1.1-2
Copyright 2006-2012 – STM Group, Inc.
Page 12 (182)
LED
Color: indicates
Power
White: lights steadily when power switch is on and unit is powered. Flashes when
loading software.
Error
Red: lights steadily when an error event occurs and during reboot.
Satellite
Receive
White: flashes when the receiver is searching for the carrier.
Lights steadily when receiver is on and functioning properly.
Flashes when IP packets are received from the Satellite Interface (the Hub).
Transmit
White: flashes rapidly when a continuous wave (CW) is transmitted.
Lights steadily when the VSAT is logged on to the DVB-RCS Hub.
Flashes when IP packets are transmitted to the Satellite Interface (the Hub).
Ethernet
Link/Act
White: lights steadily when Ethernet connectivity is OK.
Flashes slowly when Ethernet packets are transferred via the Ethernet interface.
Table 5: SatLink 1910 Front Panel LEDs

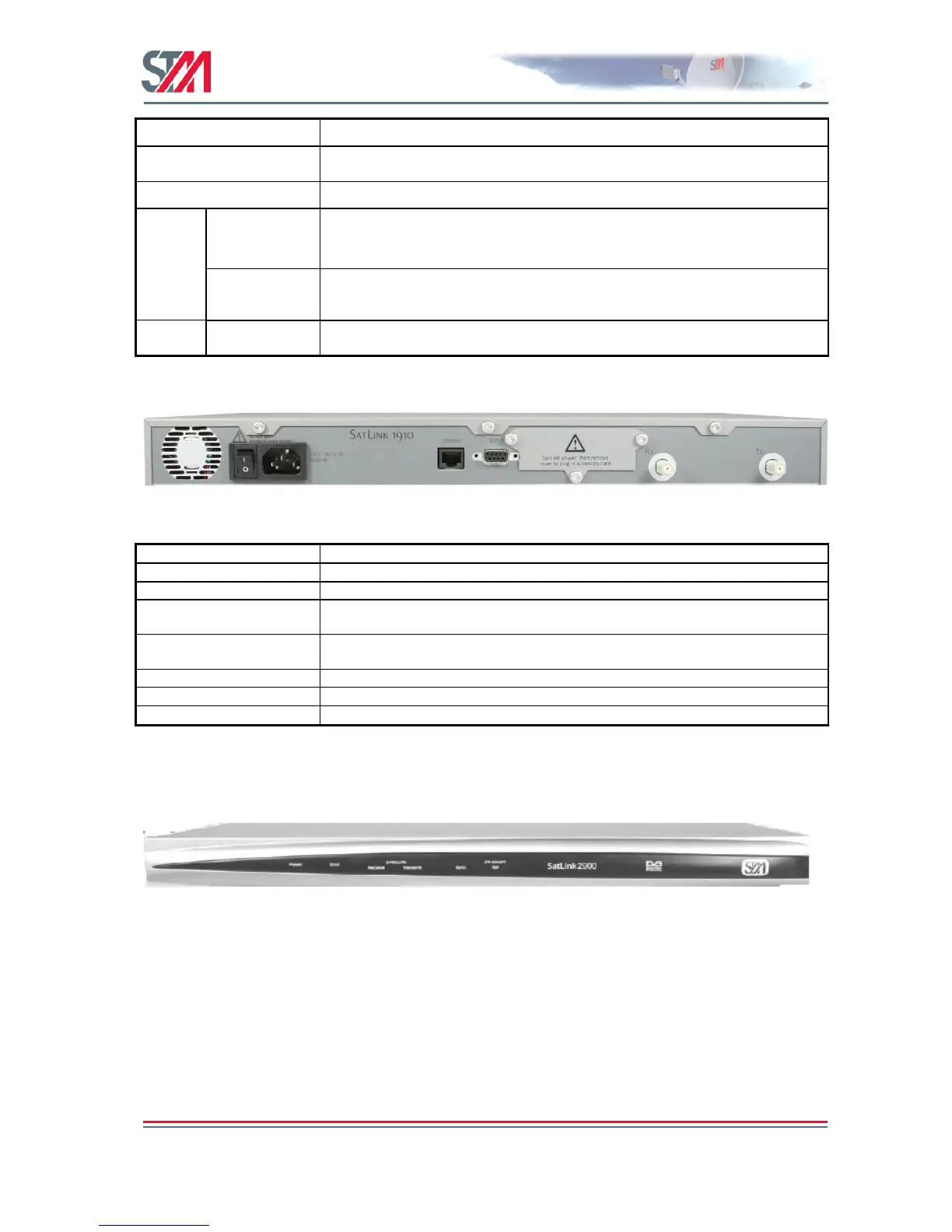

Figure 8: SatLink 1910 Rear Panel
Item
Description
On/Off switch
Power on (1) or off (0).
Power Connector
Standard recessed plug for 110-240VAC power cord.
Ethernet Connector
RJ45 connector for IP traffic to connect to a PC, Ethernet switch, IP router, etc.
10BASE-T or 100BASE-T mode is detected automatically.
COM1 Connector
Nine pin connector for connecting CLI interface to a computer‘s DB-9 serial
interface.
Cover for Accessory Card
Not used.
RX coaxial jack
Coaxial 75  F-type jack for the cable to the LNB.
TX coaxial jack
Coaxial 75  F-type jack for the cable to the BUC.
Table 6: Description of SatLink 1910 Rear Panel
3.2.4 SatLink 2900 Front and Rear Panel
Figure 9: SatLink 2900 Front Panel
