Publication no. 101557
Rev 14.1.1-2
Copyright 2006-2012 – STM Group, Inc.
E.6 Definition of VSAT Interface Numeration
This section provides the background for the chosen numbering of the interfaces of the VSAT.
The VSAT has two interfaces:
The Ethernet (LAN) interface
The satellite (DVB) interface
The Ethernet (LAN) interface of the VSAT has been assigned the number 1 and the Air (DVB) interface
has been given the number 3. Interface number 2 is not in use.
These interface numbers are predefined and automatically configured in the RCST.
E.7 Adding an Entry to the QoS Classification Table
CreateAndGo is not available when adding a new entry to the ipQos.qos Classification
Table. Instead a new row must first be created as CreateAndWait before being activated as
shown in the example below.
E.7.1 Example - Configure an Entry in the QoS Classification Table Using MGSoft
MIB Browser v9.0.0.
1. Add an entry in the table by using set on the qosClassRowStatus.
Then set the value to 5 (CreateAndWait) for the OID 1.3.6.1.4.1.3286.50.2.5.5.1.1.14.N, where N is
the index desired for the new entry (index 3 in the example below).

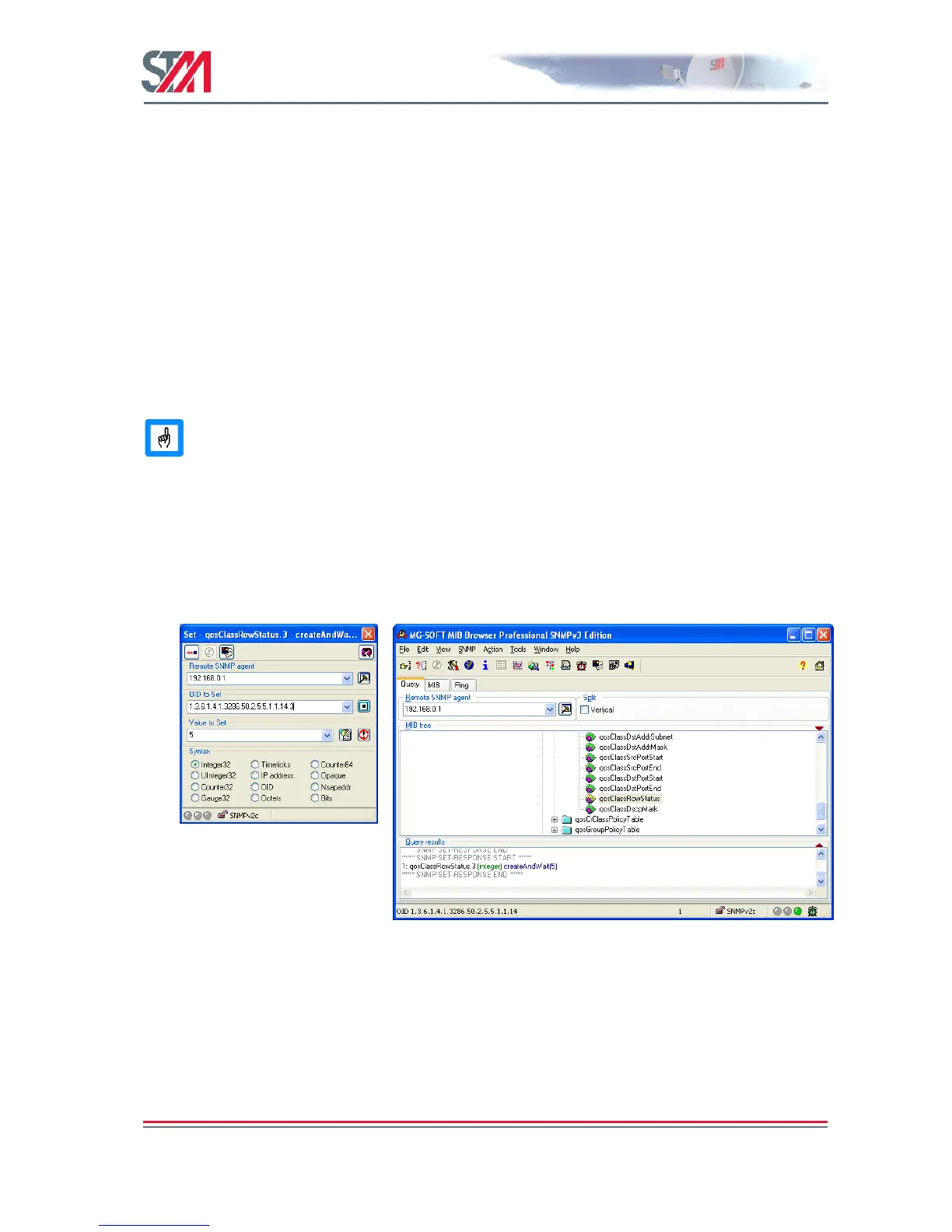

Figure 49: Define a New Row as CreateAndWait
