3) Click the Save button to save the configuration.
4) Click Start button to start the receiver manually (Only required with Autostart mode ―off‖).
6.2.2 Transmitter Parameter Configuration
The VSAT is normally pre-configured to be used together with the SatLink 403x transceiver. But it is
possible to configure the VSAT to operate together with transmitters other than the SatLink 403x. The
valid ODU transmitters (BUC) used with the VSAT are listed in Table 9.
1) Click on the Configuration
Satellite option in the SatLink VSAT home page.

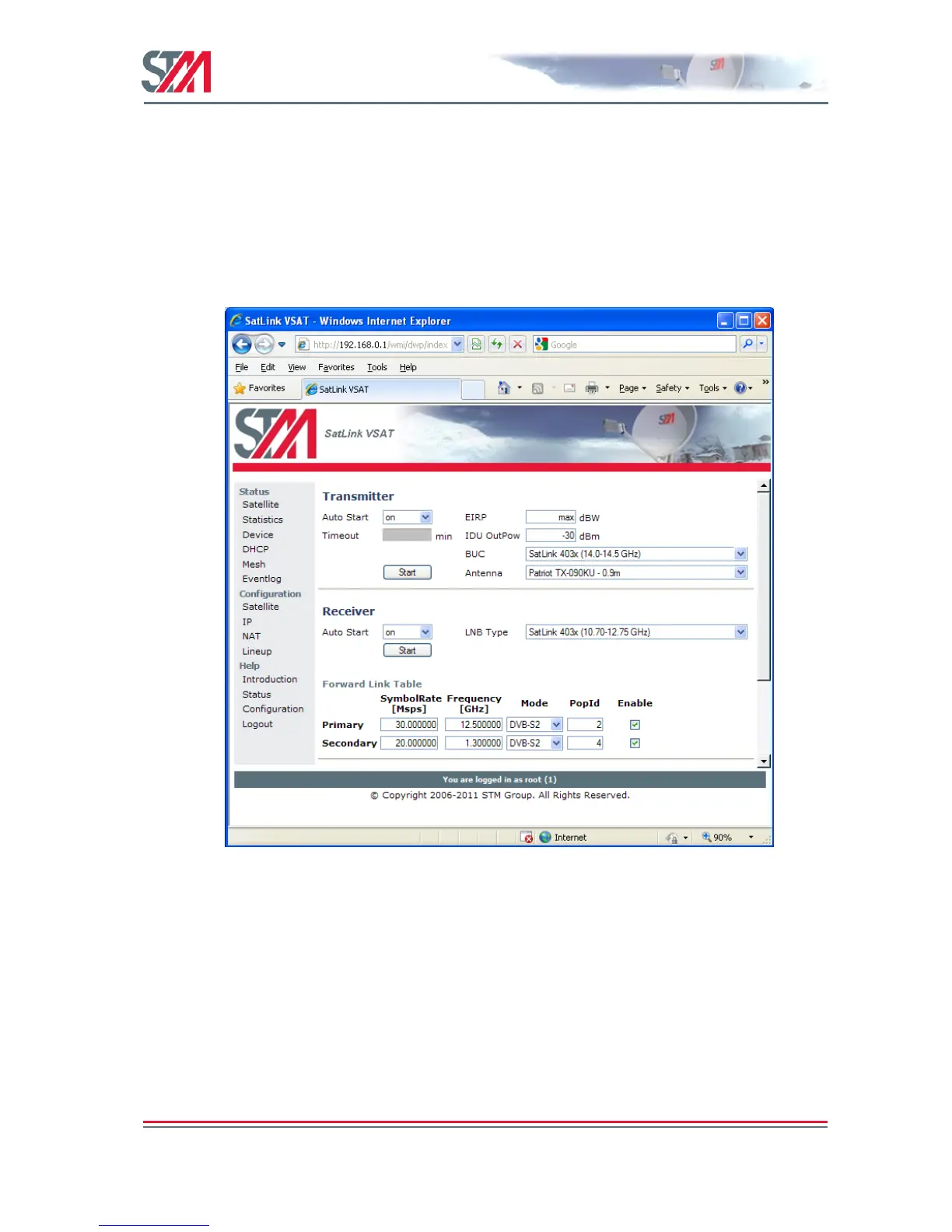

Figure 21: Configuring Transmitter Parameters
