3.2 Connecting multiple xed LNBs using a DiSEqC switch

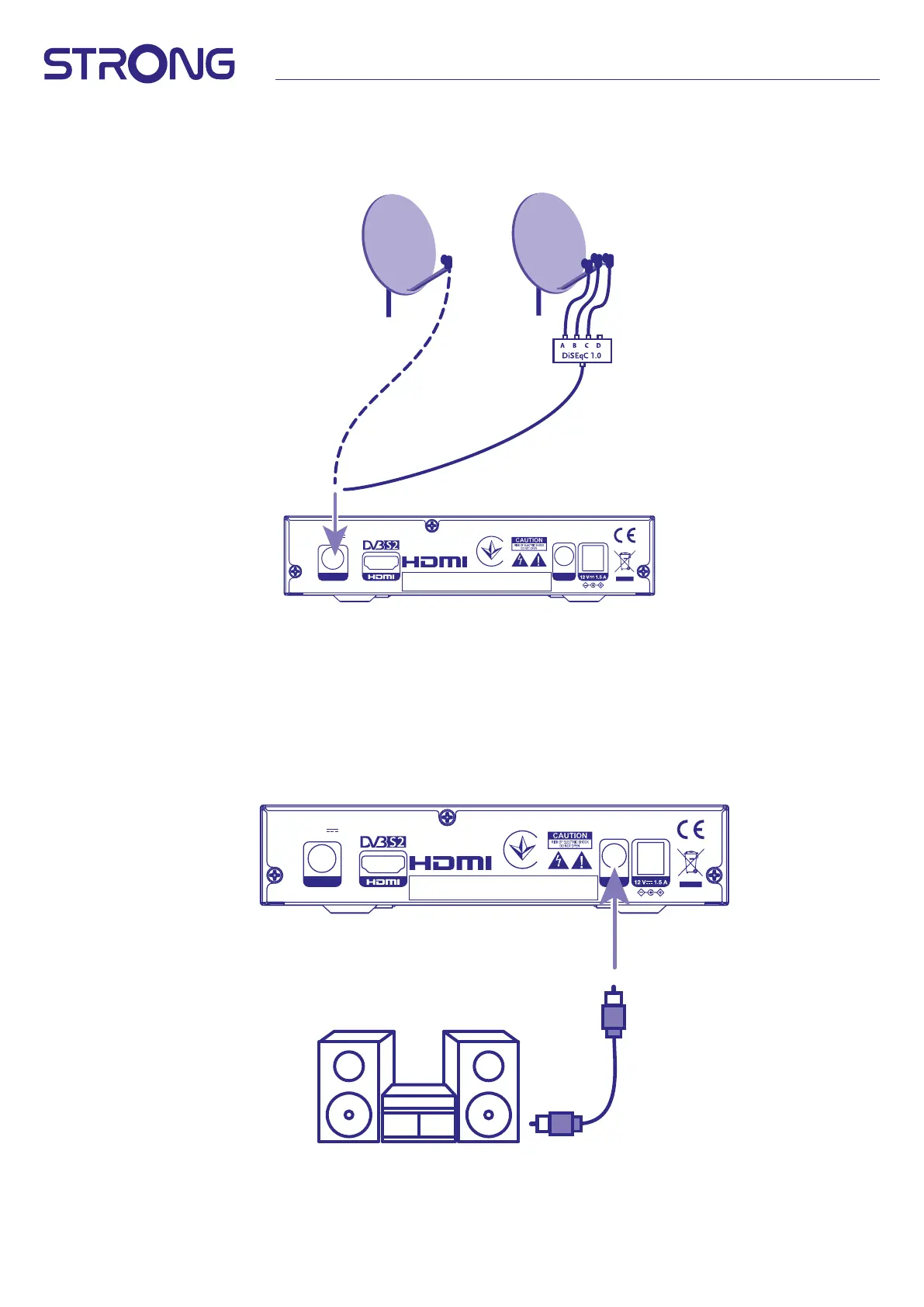

Fig.7
a. Connect the LNBs of your xed antenna to the inputs of a DiSEqC switch
b. Connect the output or “to receiver” connector of the DiSEqC switch to the SAT IN connector on your
receiver.
c. Refer to section 3.1 or 3.2 for TV and mains connections.
3.3 Connecting to digital audio amplier
Fig.8
Connect one end of a good quality coaxial audio cable to the S/PDIF output of your receiver and the other
end to the coaxial audio input of your home theatre, amplier or any other device supporting digital audio.
DIGITAL HD SATELLITE RECEIVER 7015
SAT IN S/PDIF
COAXIAL
13/18 V
500 mA max.
Supplied by STRONG Austria
