Strong SRT 7015 User Manual

8

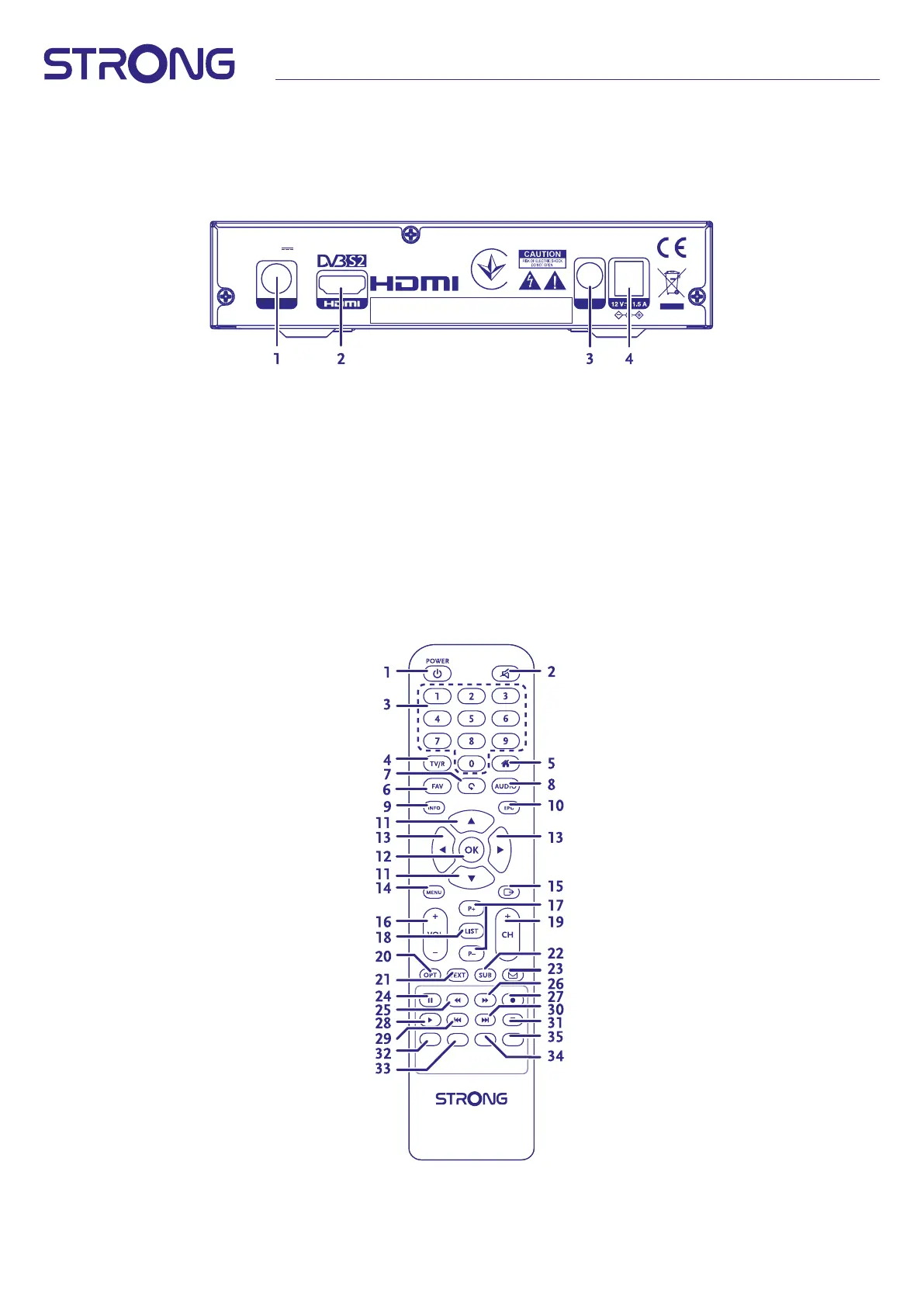

2.3 Rear panel
Fig.2
1. SAT IN To connect to the LNB of your satellite dish for reception of satellite broadcast
signal
2. HDMI To connect to the HDMI input of your TV using a good quality HDMI cable
3. S/PDIF coaxial To connect to a digital or home cinema audio amplier
4. Power connector The receiver requires a wall adapter, mains voltage input 100~240V AC 50~60Hz
12V, 1.5A DC output. Please check the local power conditions before connecting
the receiver to the mains supply.
2.4 Remote Control
Fig.3
DIGITAL HD SATELLITE RECEIVER 7015
SAT IN S/PDIF
COAXIAL
13/18 V
500 mA max.
Supplied by STRONG Austria
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.
DOLBY, DOLBY AUDIO AND THE DOUBLE-D SYMBOL ARE
TRADEMARKS OF DOLBY LABORATORIES LICENSING CORPORATION.

Strong SRT 7015 Specifications

General

Flash memory	4 MB
Internal memory	64 MB
Signal source	Satellite
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Digital signal format system	DVB-S, DVB-S2
Personal Video Recorder (PVR) included	-
AC input voltage	100 – 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	- W
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
AC adapter included	Yes
Ethernet LAN	No
Tuner type	Digital
Demodulation	8PSK, QPSK
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus
Frequency range	950 - 2150 MHz
Number of tuners	- tuner(s)
Channels quantity	2000 channels
Audio output channels	2.0 channels
Digital Satellite Equipment Control (DiSEqC)	1.2, 1.3
Composite video out	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	AC3
Video formats supported	H.264, MPEG2, MPEG4

Weight and Dimensions

Depth	41 mm
Width	171 mm
Height	104 mm
Weight	260 g
