1-20 KK-7500 REV 02 www.stryker.com
Operation

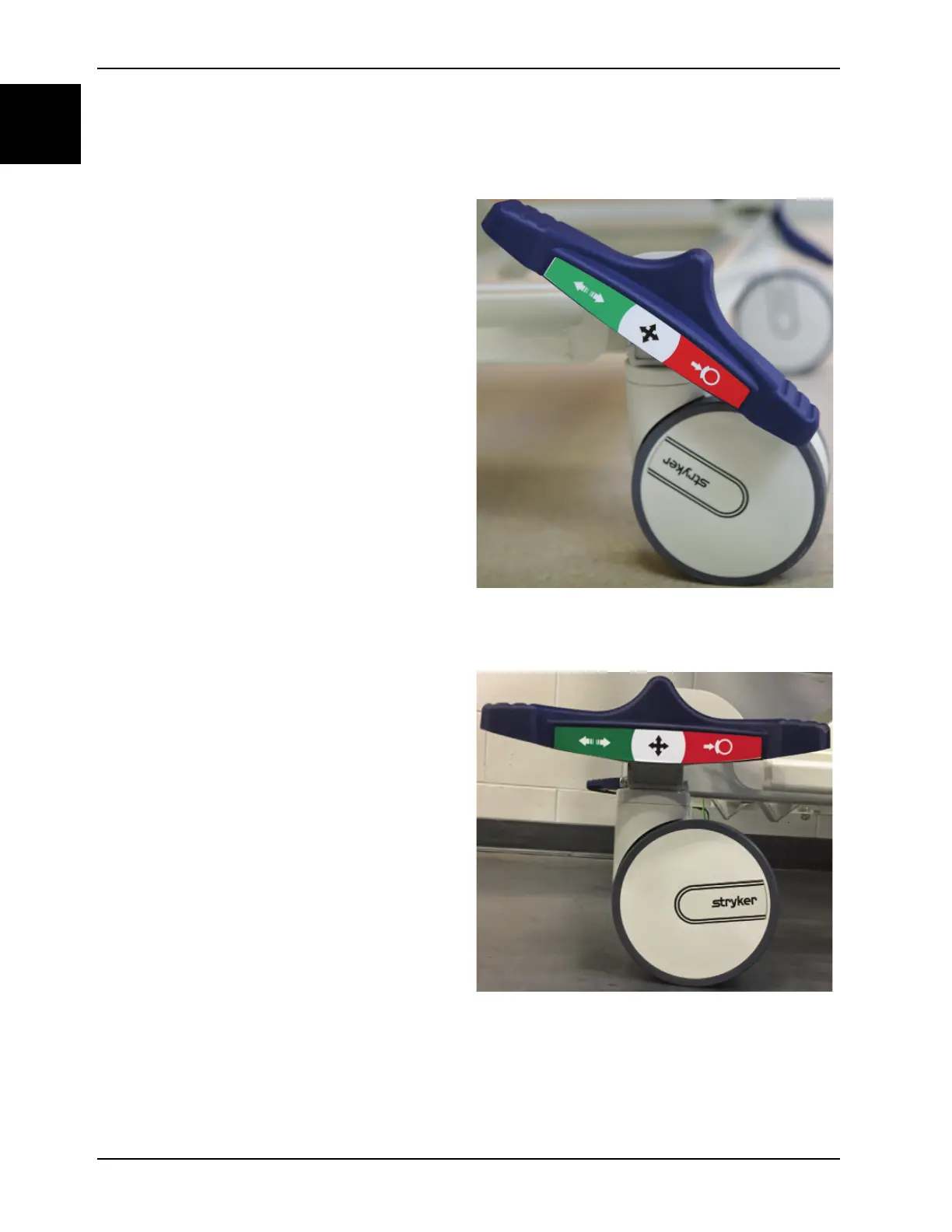

Applying or releasing the brakes (Continued)
The brake pedals are located on each caster.
To apply the brakes, depress the red pedal. The brake
pedal locks all four casters. This holds the product in
place (Figure 1-7 on page 1-20).
Figure 1-7: Applying the brakes
To release the brakes, depress the green pedal until the
pedal is in the neutral position (Figure 1-8 on page 1-20).
This releases all four casters and allows you to freely
move the product.
Figure 1-8: Releasing the brakes
