.6 PREPARING FOR CONVECTION
If connection under the fireplace is
not possible, follow these instructions.
Otherwise, ignore the next five steps.

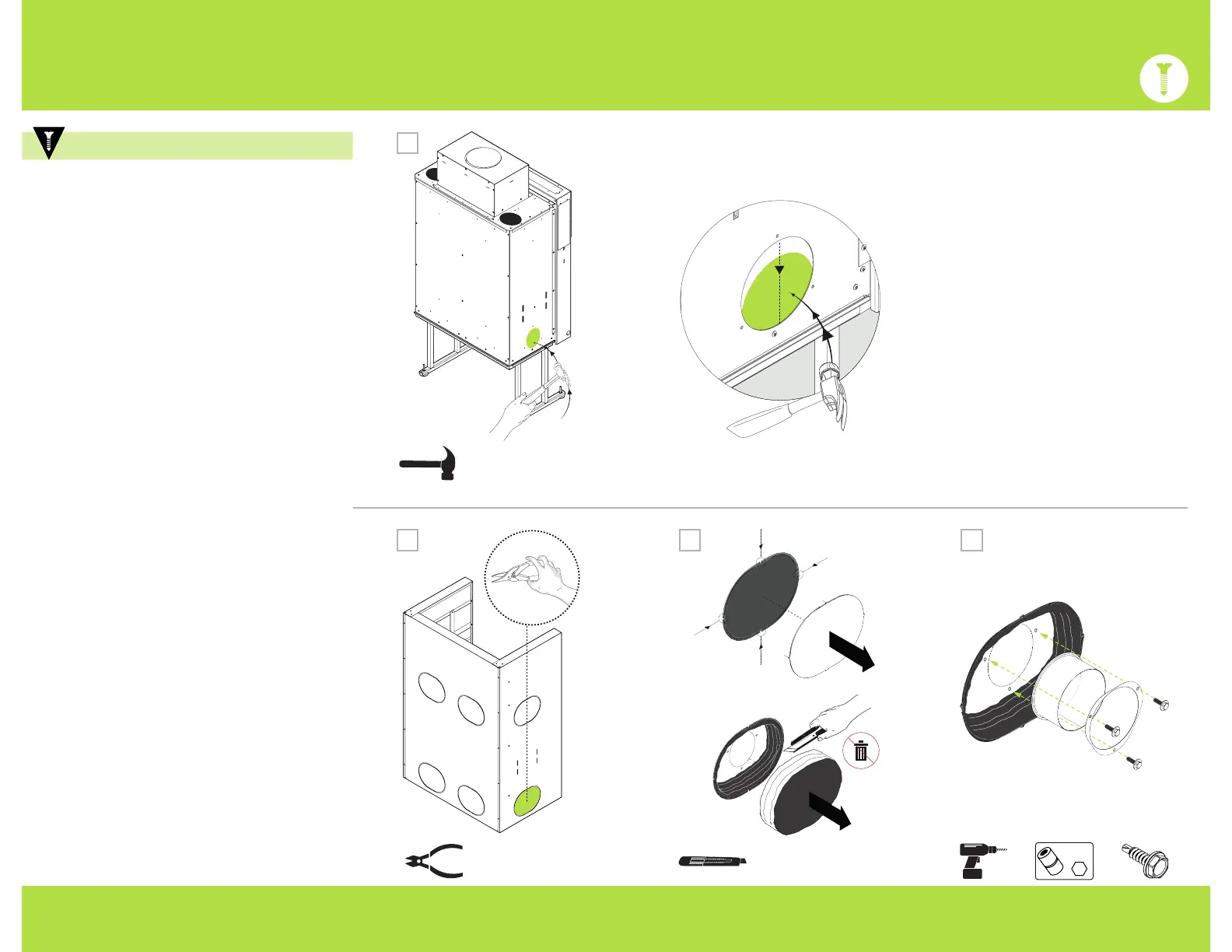

Step 39 Remove the pre-cut side
openings of the fireplace (bottom right
and left).
The cutouts will fall into the fireplace, this is
normal, it is safe to leave them there.
LATERAL CONVECTION AIR
!
Step 40 Use pliers to cut out the openings
on the shell on both sides.
Step 41 Cut the wool using a utility knife
and save cut-offs for future use.
Step 42 Connect a Ø6'' x 3'' short flange
to the opening with the maxclip and the
self-drilling hex head screws on both sides.
424140
39
10mm
