INSTALLATIONSTÛV 21
.6 PREPARING FOR CONVECTION

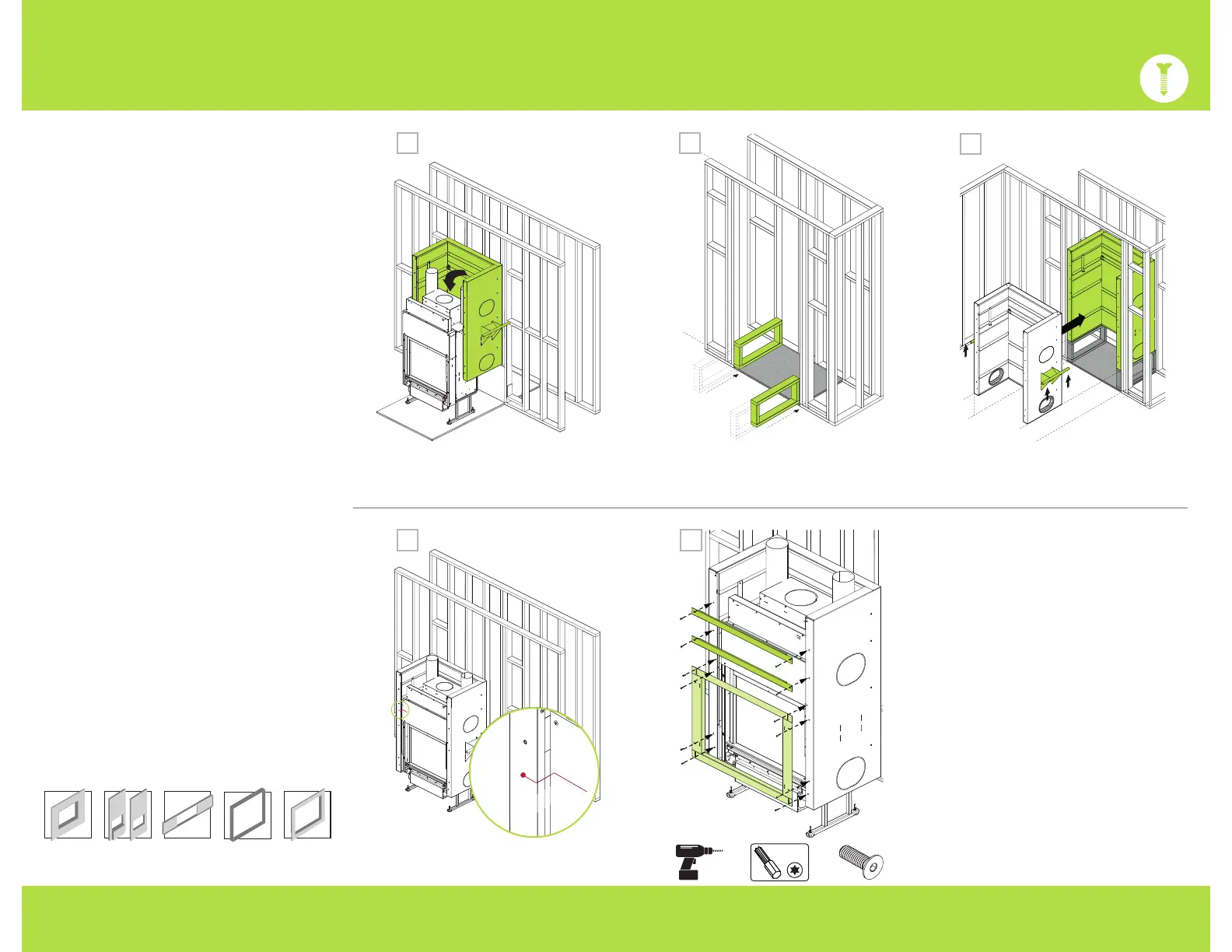

Step 43 Use the Stûv handles to put the
insulated shell back unto the fireplace.
Step 44 The wall insertion can be done
in two steps by adding wood structures
a little bit higher than the bottom of the
fireplace.
Step 45 Place the insulated shell in the
opening. The connection between the
insulated shell and the fireplace will be
done after pushing the fireplace to its final
position
4746
43
1
⁄
’’
T25
45
Step 46 Adjust the depth positioning
of the shell to have a clearance of 1 /’’
between the shell and the fireplace.
Step 47 Replace the finishing trims except
for the top one.
Check if some should be omitted in the
case of frame or front panel installation.
2x3’’
44
