To reassemble, proceed in reverse order.
Centre the spacer.

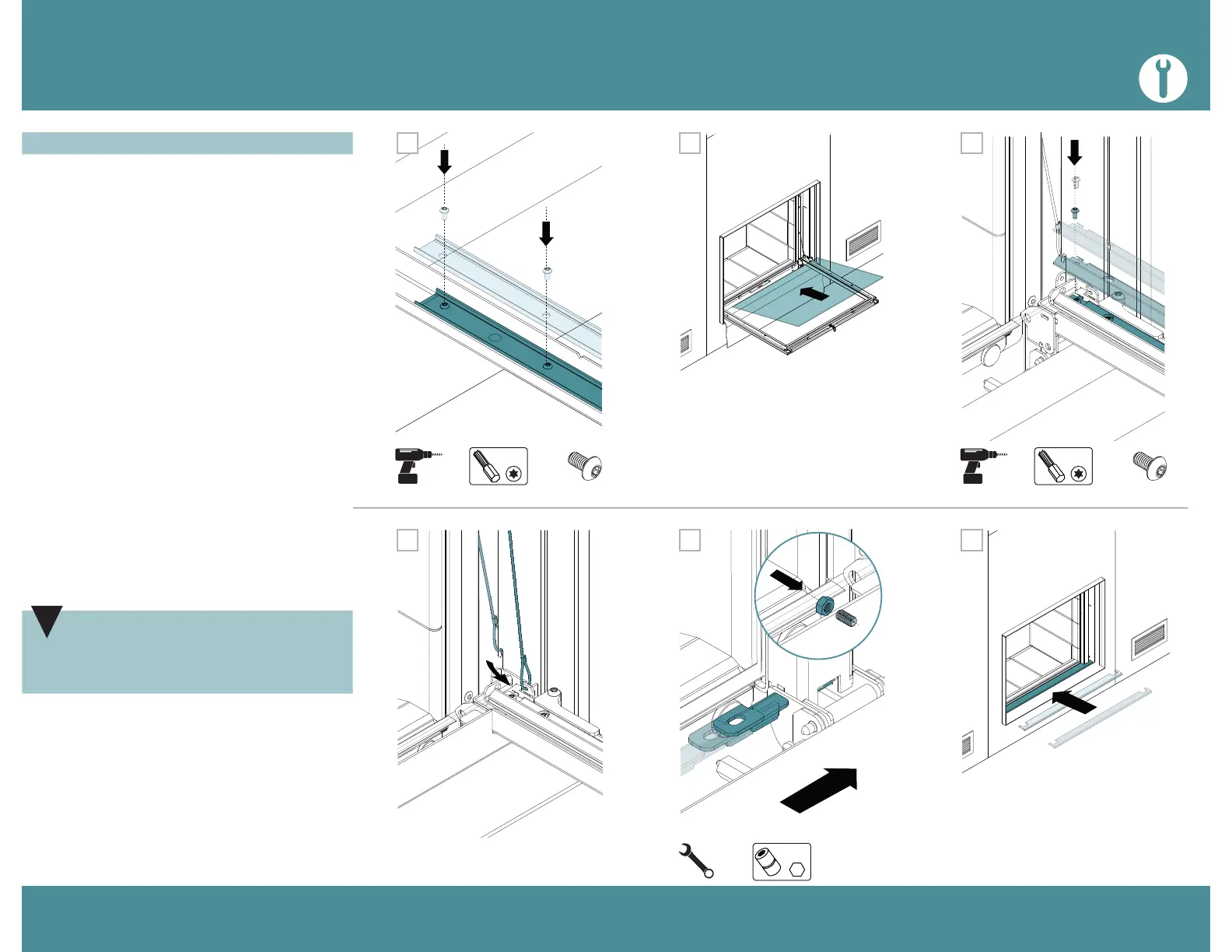

Step 22 Screw the slide back in place
using the 2 screws on each side of the
sliding door frame. Make sure all seven
holes are facing upwards (they must be
visible).
Step 23 Place the glass. Verify that the
Stûv logo is vertical in the bottom right
hand corner.
Step 24 Replace the glass pane
Step 25 Attach the counterweight cables
to the glass door.
Step 26 Close the door and put back the
innersprings, put back the nut.
Step 27 Put back the damper cover
panel.
.5 COMPONENTS REPLACEMENT
REASSEMBLY
272625
242322
CAUTION
Careful not to let these cables go when
reattaching.
!
8mm
T20
T20
