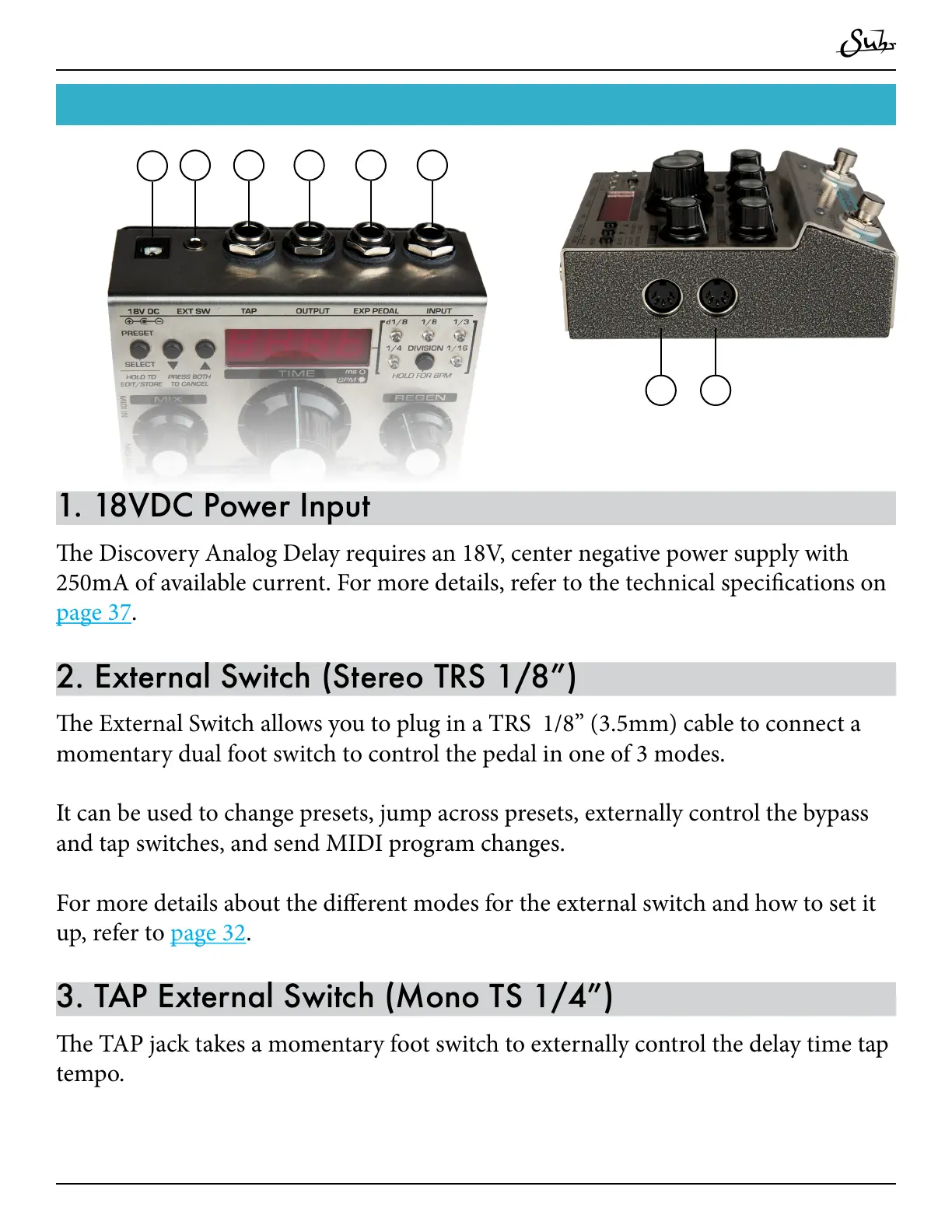

1. 18VDC Power Input
e Discovery Analog Delay requires an 18V, center negative power supply with
250mA of available current. For more details, refer to the technical specications on
page 37.
2. External Switch (Stereo TRS 1/8”)
e External Switch allows you to plug in a TRS 1/8” (3.5mm) cable to connect a
momentary dual foot switch to control the pedal in one of 3 modes.
It can be used to change presets, jump across presets, externally control the bypass
and tap switches, and send MIDI program changes.
For more details about the dierent modes for the external switch and how to set it
up, refer to page 32.
3. TAP External Switch (Mono TS 1/4”)
e TAP jack takes a momentary foot switch to externally control the delay time tap
tempo.
