Suhr Discovery - Effects Loop Connection

Discovery Delay – Usage CasesUsage Cases
35
Revision: 1.2 (7/1/2021)

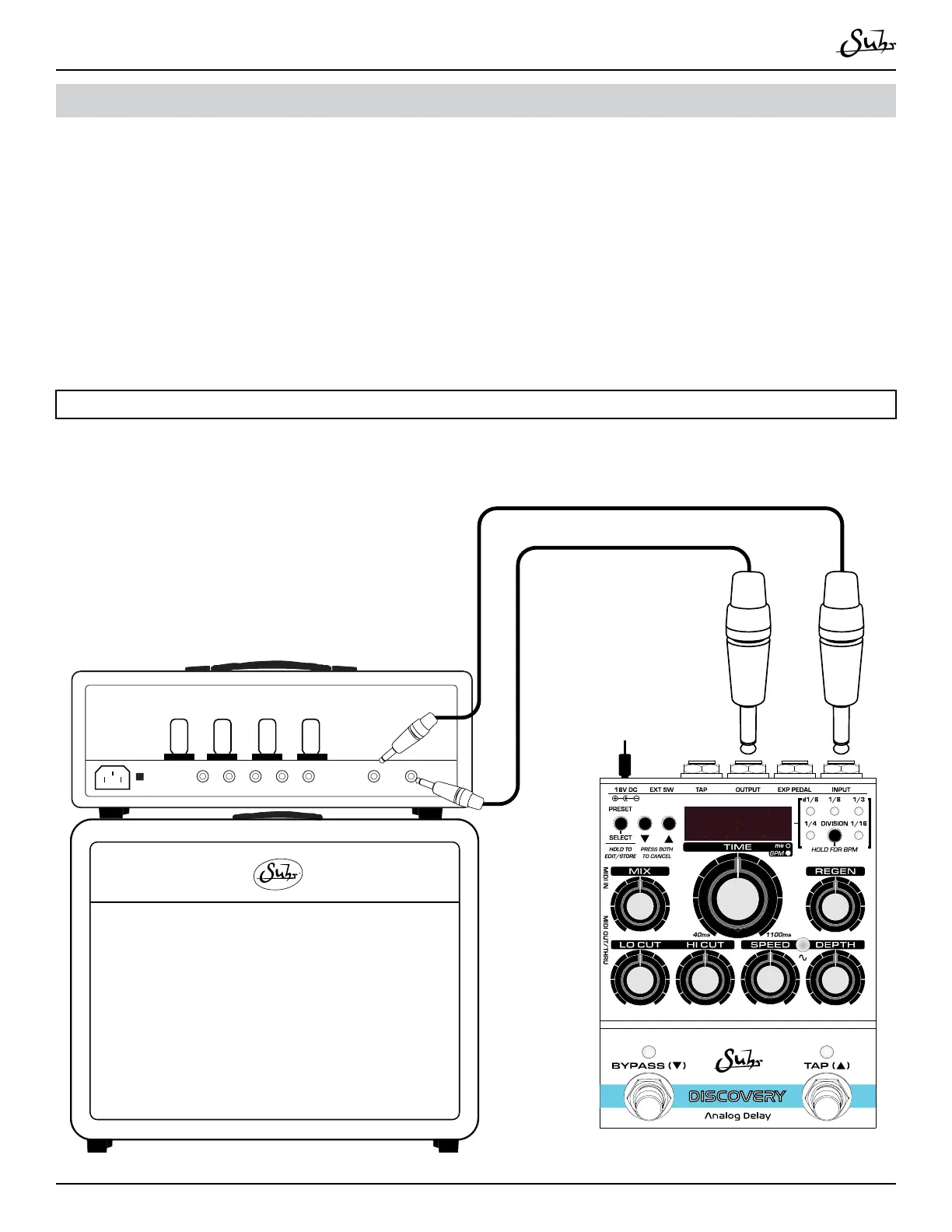

Discovery Analog Delay Into Effects Loop of Amp
1. Plug in included 18V DC power supply�
2� Plug guitar into the front of your amp via 1/4” cable�
3. Plug the SEND of your amp’s eects loop in to the [INPUT] of Discovery�
4. Plug the RETURN of your amp’s eect loop into the [OUTPUT] of Discovery�
Note:
is setup will give you the most clean delay tones and is our preferred way to hook
up the Discovery Analog Delay to an amp with the least amount of noise�
16Ω 8Ω 8Ω 4Ω 4Ω
SEND RETURN
Effects Loop
88 88
Use included
18V DC power supply
