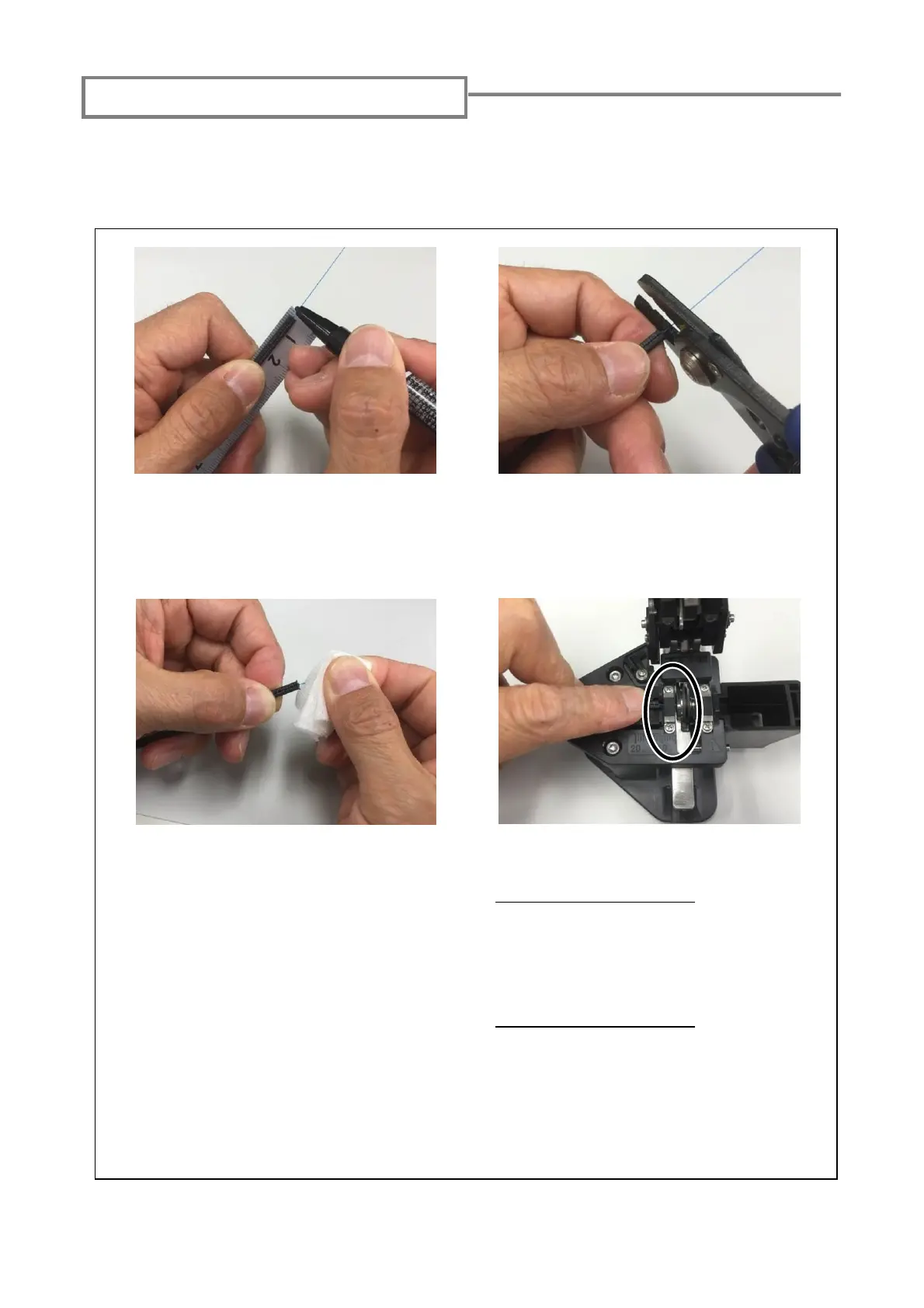

This section describes fiber preparation procedures in using a fiber cleaver with a single
fiber adapter (FC-5S).
2. Remove the fiber coating from
the mark using a jacket remover.
1. Put a mark at 3mm (for use of
40mm sleeve) or 10mm (for use of
60mm sleeve) away from the cable
end.
3. Clean the bare fiber from the
end of the fiber coating with a
gauze pad moistened with pure
alcohol. Pull the bare fiber
through the gauze pad and ro-
tate the fiber to remove any
coating residue.
4. Place the drop cable into the adapter.
For use of 40mm sleeve
Place the end of the cable sheath with
the edge of the adapter and hold the
adapter.
For use of 60mm sleeve
Place the end of the cable sheath at
20mm mark on the cleaver.
*Cleave the fiber in a correct way as a
cleaver manual describes.
Fiber preparation (with FC-5S)
