Sumitomo T-400S - Fiber Holder Operation

5-2

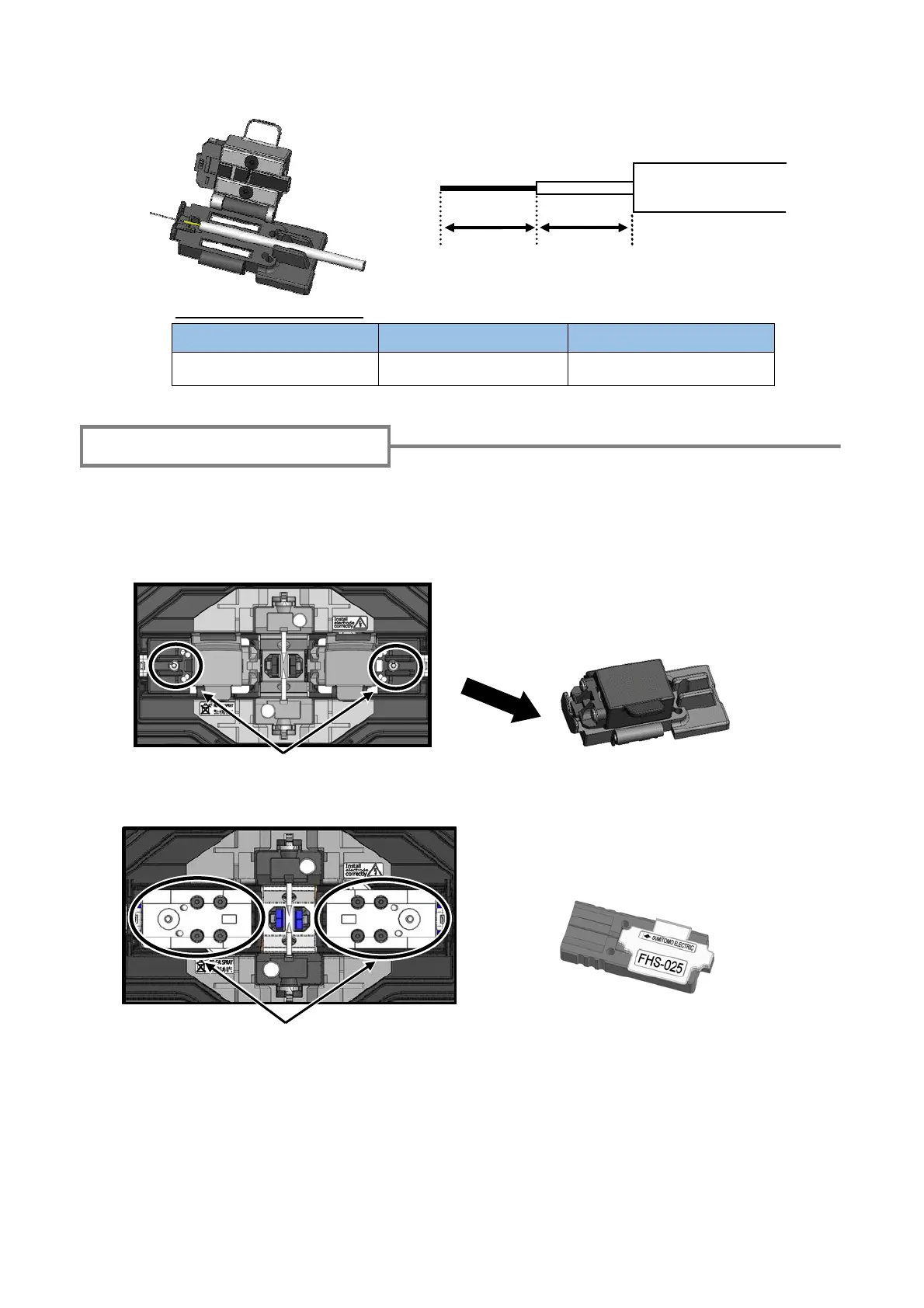

Fiber holder operation
<For fiber cord>
Fiber cord sheath
φ0.9mm
Bare fiber
5mm
10mm
Diameter of fiber coating Cleave length φ0.9mm coating length
3.0 mm or less 10mm
5mm
Detaching the coating clamp makes it possible to use fiber holders for
single fiber for splicing. Sumitomo fiber holder FHS series can be applied.
Holder stage
Fiber holder FHS-025
2. The holder stage is available. Place a
fiber holder on the holder stage.
Coating clamp
1. Loosen the coating clamp fixing screw
to detach the coating clamp.
Coating clamp fixing screw
Recommended lengths
