Dual purpose clamping system of heat shrink oven

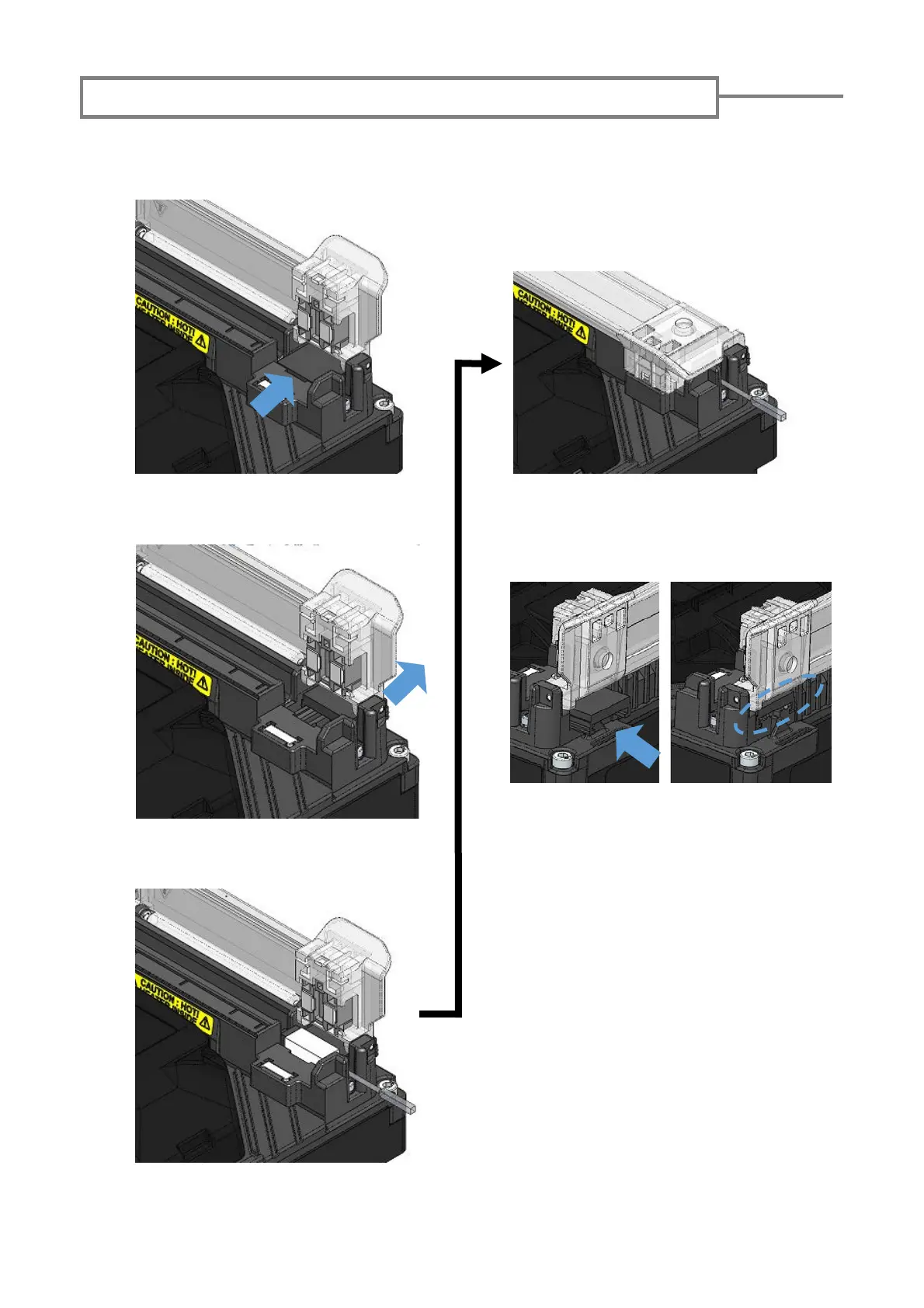

To heat shrink Splice on connecter with the heat shrink oven, push the
Slide block from front to back.
1) Hook your finger to the re-
cessed part of the Slide block.
2) Push the Slide block from
front to back.
4) Close the lid. Ensure a dedi-
cated oven program is selected
and then start the heat shrink
process.
3) Place Splice on connecter
therein.
5) To return the Slide block to the
default position, push it from the
back of the heat shrink oven.
*For heat protection of Sumitomo’s Splice
on connecters, the Slide block should be
set to the default position.
