Installation, Operation, and Maintenance Manual
24 SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796
APPENDIX D – PUMP CROSS SECTIONS AND PARTS LISTS

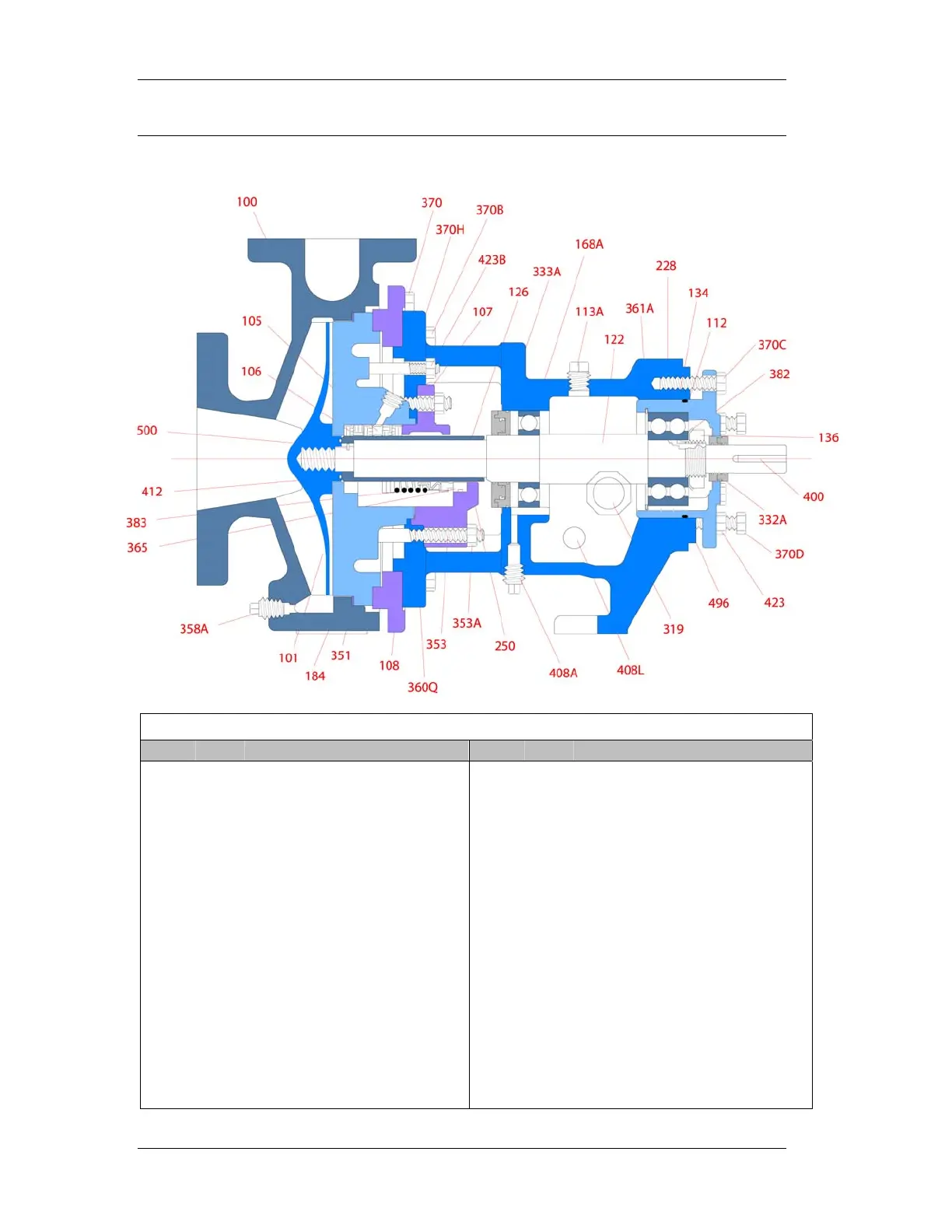

MODEL 2196 STO CROSS SECTION
MODEL 2196 STO PARTS LIST
Item # Qty Description Item # Qty Description
100 1 Casing 360Q 1 Gasket; Gland, Mech. Seal
101 1 Impeller 361A 1 Snap Ring, Bearing
105 1 Ring, Lantern 365 1 Seal, Mechanical Stationary Element
106 5 Packing 370 3 Bolt, Casing
107 1 Gland, Packing 370B** 4 Bolt, Frame / Adapter
108** 1 Adapter Ring 370C 3 Bolt, Bearing Housing
112 1 Bearing, Outboard 370D 3 Jack Bolt, Bearing Housing
113A 1 Plug, Oil Fill 370H 2 Stud, SBC / Adapter
122 1 Shaft 382 1 Lockwasher, Bearing
126 1 Sleeve, Shaft 383 1 Seal, Mechanical Rotating Element
134 1 Housing, Bearing 400 1 Key, Coupling
136 1 Locknut, Bearing 408A 1 Plug, Frame Lubrication Port
168A 1 Bearing, Inboard 408L 1 Plug, Oil Cooler Inlet (Not Shown)
184 1 Cover, Stuffing Box 408M 1 Plug, Oil Cooler OutIet (Not Shown)
228 1 Frame 412 1 O-ring, Impeller
250 1 Gland, Mechanical Seal 423 3 Jamnut, Bearing Housing / Frame
319 1 Sight Glass 423B 2 Nut, Box Cover/Adapter Stud
332A 1 Labyrinth, OB 496 1 O-ring,, Bearing Housing / Frame
333A 1 Labyrinth, IB 500 1 Pin, Sleeve
351 1 Gasket, Case
353 4 Stud, Gland
353A 4* Nut, Gland Stud * Packing Gland has only 2 Studs & Nuts
358A 1 Plug, Casing Drain ** Only Required on 8" Pump
