Summit 2196 model - Model 2196 Stuffing Box Related Dimensions

Installation, Operation, and Maintenance Manual
SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796 39

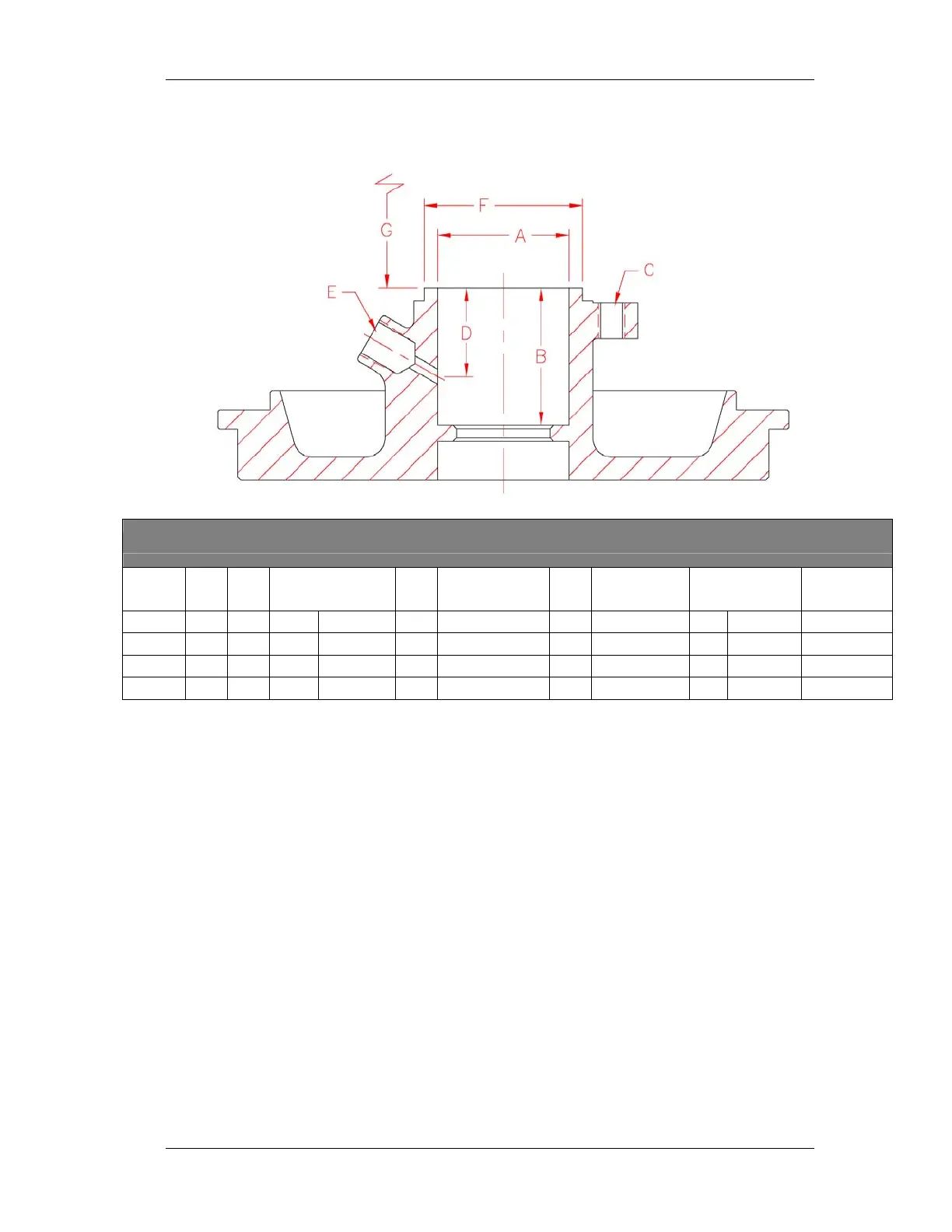

MODEL 2196 STUFFING BOX RELATED DIMENSIONS
STUFFING BOX RELATED DIMENSIONS
PUMP C G PACKING LANTERN
FRAME
A B
B.C TAP
D E F
OBSTRUCTION SIZE # OF RINGS RING WIDTH
STO 2.00
2.12
3.25 3/8-18 UNC 0.97 1/4-18 NPT 2.39 2.18 5/16 5 7/16
MTO 2.50
2.62
4.12 1/2-13 UNC 1.56 3/8-18 NPT 3.01 3.00 3/8 5 5/8
LTO 2.87
2.62
4.50 1/2-13 UNC 1.56 3/8-18 NPT 3.52 3.00 3/8 5 5/8
XLO 3.37
3.00
5.37 5/8-11 UNC 1.75 3/8-18 NPT 4.37 2.93 7/16 5 5/8
