Summit 2196 model - Model 2796 Cross Section

Installation, Operation, and Maintenance Manual
30 SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796

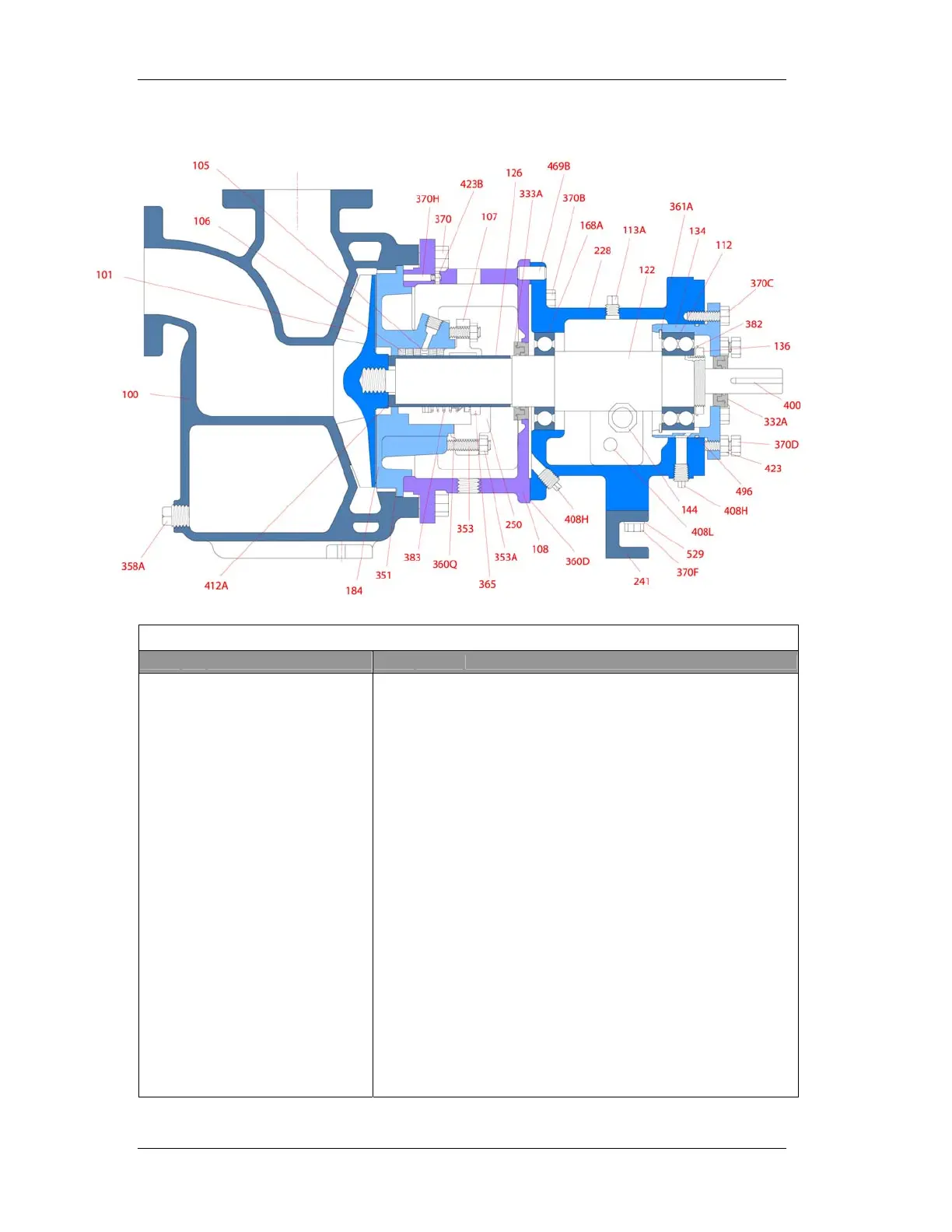

MODEL 2796 CROSS SECTION
MODEL 2796 PARTS LIST
Item # Qty Description Item # Qty Description
100 1
Casing
360D 1
Gasket, Frame/Adapter
101 1
Impeller
360Q 1
Gasket; Gland, Mech. Seal
105 1
Ring, Lantern
361A 1
Snap Ring, Bearing
106 5
Packing
365 1
Seal, Mechanical Stationary Element
107 1
Gland, Packing
370
8, 12, 16
Bolt, Casing
108 1
Adapter
370B 4
Bolt, Frame / Adapter
112 1
Bearing, Outboard
370C 3
Bolt, Bearing Housing
113A 1
Plug, Oil Fill
370D 3
Jack Bolt, Bearing Housing
122 1
Shaft
370F 2
Bolt, Frame Foot
126 1
Sleeve, Shaft
370H 2
Box Cover/Adapter Stud
134 1
Housing, Bearing
382 1
Lockwasher, Bearing
136 1
Locknut, Bearing
383 1
Seal, Mechanical Rotating Element
144 1
Gauge; Sight, Oil
400 1
Key, Coupling
168A 1
Bearing, Inboard
408A 1
Plug, Frame Drain (Not Shown)
184 1
Cover, Stuffing Box
408H 4
Plug, Frame Lubrication Port
228 1
Frame
408L 1
Plug, Oil Cooler Inlet
241 1
Foot Frame
408M 1
Plug, Oil Cooler Outlet
250
Gland, Mechanical Seal
412A 1
O-ring, Impeller
332A 1
Labyrinth, Outboard Frame
423 3
Jamnut, Bearing Housing Jack Bolt
333A 1
Labyrinth, Inboard Frame
423B 2
Nut, Box Cover/Adapter Stud
351 1
Gasket, Case
469B 2
Dowel Pin, Frame / Adapter
353 4
Stud, Gland
496 1
O-ring, Bearing Housing / Frame
353A 4*
Nut, Gland Stud
529 2
Washer, Frame Foot to Frame
358A 1
Plug, Casing Drain
* Packing Gland has only 2 Studs & Nuts
