Installation, Operation, and Maintenance Manual
SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796 29

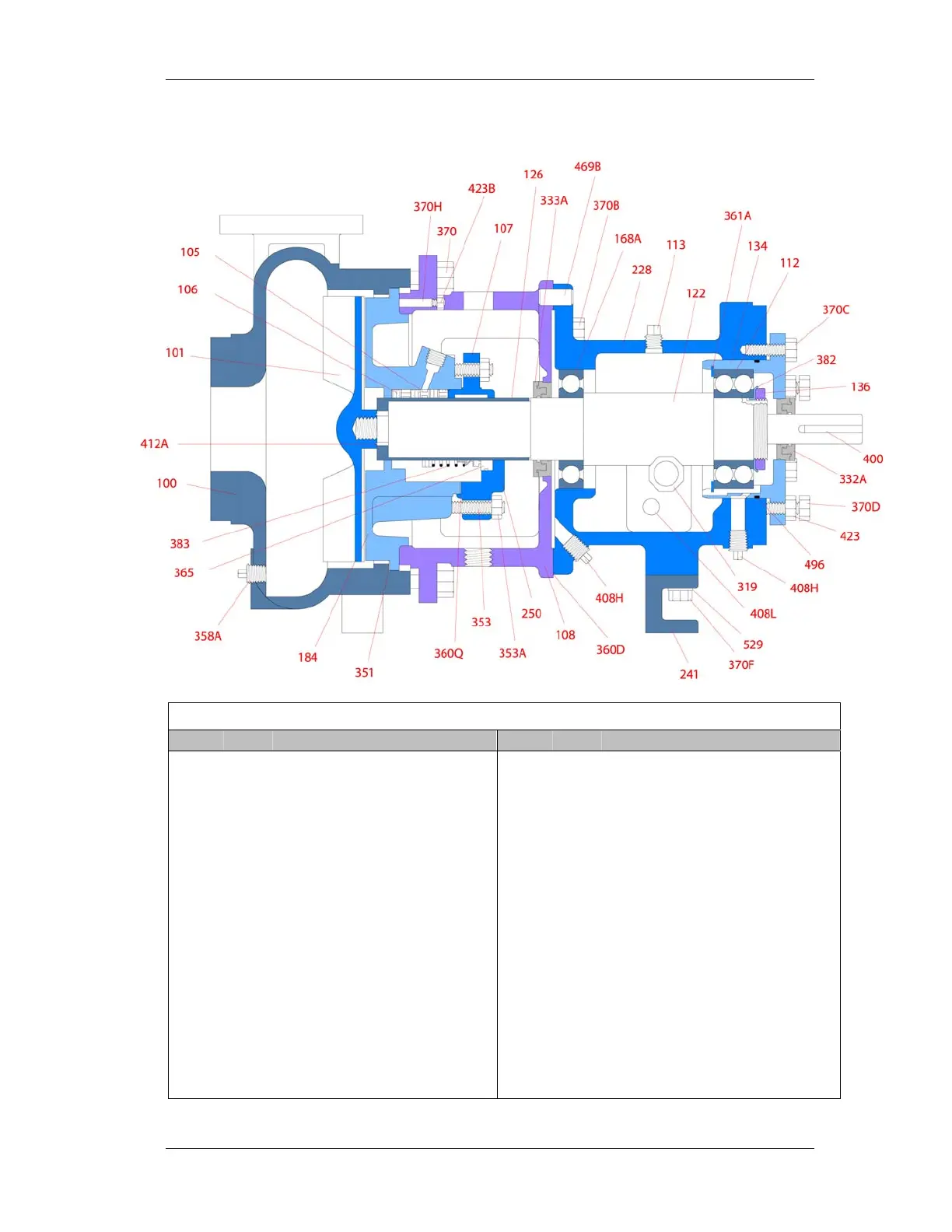

MODEL 2196-R CROSS SECTION
MODEL 2196-R PARTS LIST
Item # Qty Description Item # Qty Description
100 1 Casing 360Q 1 Gasket; Gland, Mech. Seal
101 1 Impeller 361A 1 Snap Ring, Bearing
105 1 Ring, Lantern 365 1 Seal, Mechanical Stationary Element
106 5 Packing 370 3 Bolt, Casing
107 1 Gland, Packing 370B** 4 Bolt, Frame / Adapter
108** 1 Adapter Ring 370C 3 Bolt, Bearing Housing
112 1 Bearing, Outboard 370D 3 Jack Bolt, Bearing Housing
113 1 Plug, Oil Fill 370F 1 Bolt, Foot to Frame
122 1 Shaft 370H 2 Stud, SBC / Adapter
126 1 Sleeve, Shaft 382 1 Lockwasher, Bearing
134 1 Housing, Bearing 383 1 Seal, Mechanical Rotating Element
136 1 Locknut, Bearing 400 1 Key, Coupling
168A 1 Bearing, Inboard 408H 4 Plug, Frame Lubrication Port
184 1 Cover, Stuffing Box 408L 1 Plug, Oil Cooler Inlet (Not Shown)
228 1 Frame 408M 1 Plug, Oil Cooler OutIet (Not Shown)
250 1 Gland, Mechanical Seal 412A 1 O-ring, Impeller
319 1 Sight Glass 423 3 Jamnut, Bearing Housing / Frame
332A 1 Labyrinth, OB 423B 2 Nut, Box Cover/Adapter Stud
333A 1 Labyrinth, IB 496 1 O-ring,, Bearing Housing / Frame
351 1 Gasket, Case 500 1 Pin, Sleeve
353 1 Stud, Gland 529 2 Washer, Foot to Frame
353A 4* Nut, Gland Stud * Packing Gland has only 2 Studs & Nuts
358A 1 Plug, Casing Drain ** Only Required on 8" Pump
