36 SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796
MODEL 2196-LF DIMENSIONAL DATA

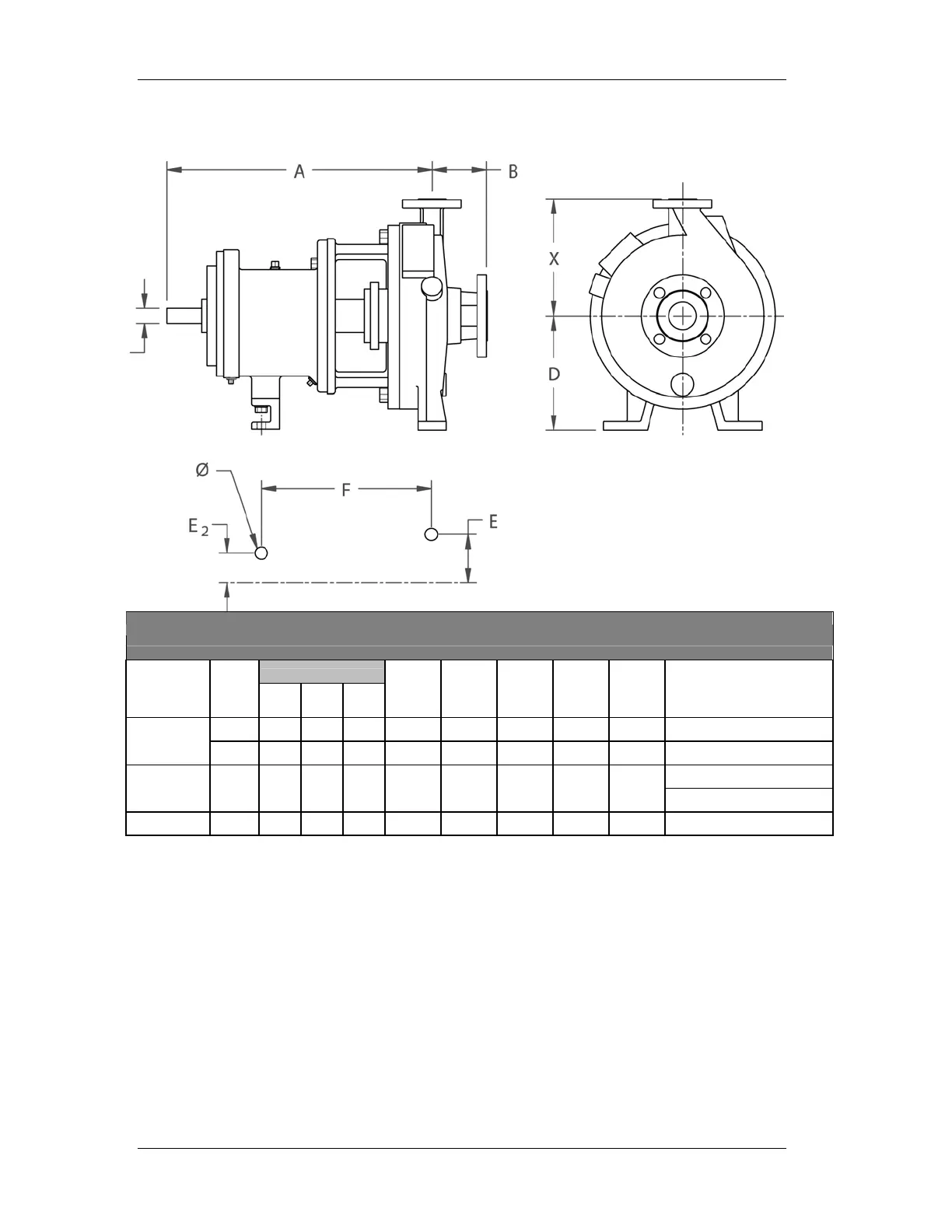

2196-LF DIMENSIONS
SIZE
PUMP
FRAME
ANSI
DIS SUC IMP
X A B D SP
APPROX.
BARE PUMP WT. (LBS.)
AA 1 1.5 4 6.5 13.5 4.0 5.25 3.75 84
STO
AA 1 1.5 8 6.5 13.5 4.0 5.25 3.75 100
200
MTO/LTO A05 1 2 10 8.5 19.5 4.0 8.25 3.75
245
LTO A20 1.5 3 13 10.5 19.5 4.0 10.0 3.75 285
