SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796 45
two (2) washers through the slotted holes at the center of the guard and tighten.
Check tightness on all of the nuts on the guard assembly.
WARNING!
Before assembling or disassembling the
coupling guard, de-energize the motor,
lock out the motor controller/starter, and
place a caution tag at the starter
indicating that it is disconnected. Before
resuming normal pump operation, replace
the coupling guard. Summit Pump
assumes no liability when these
procedures are avoided.

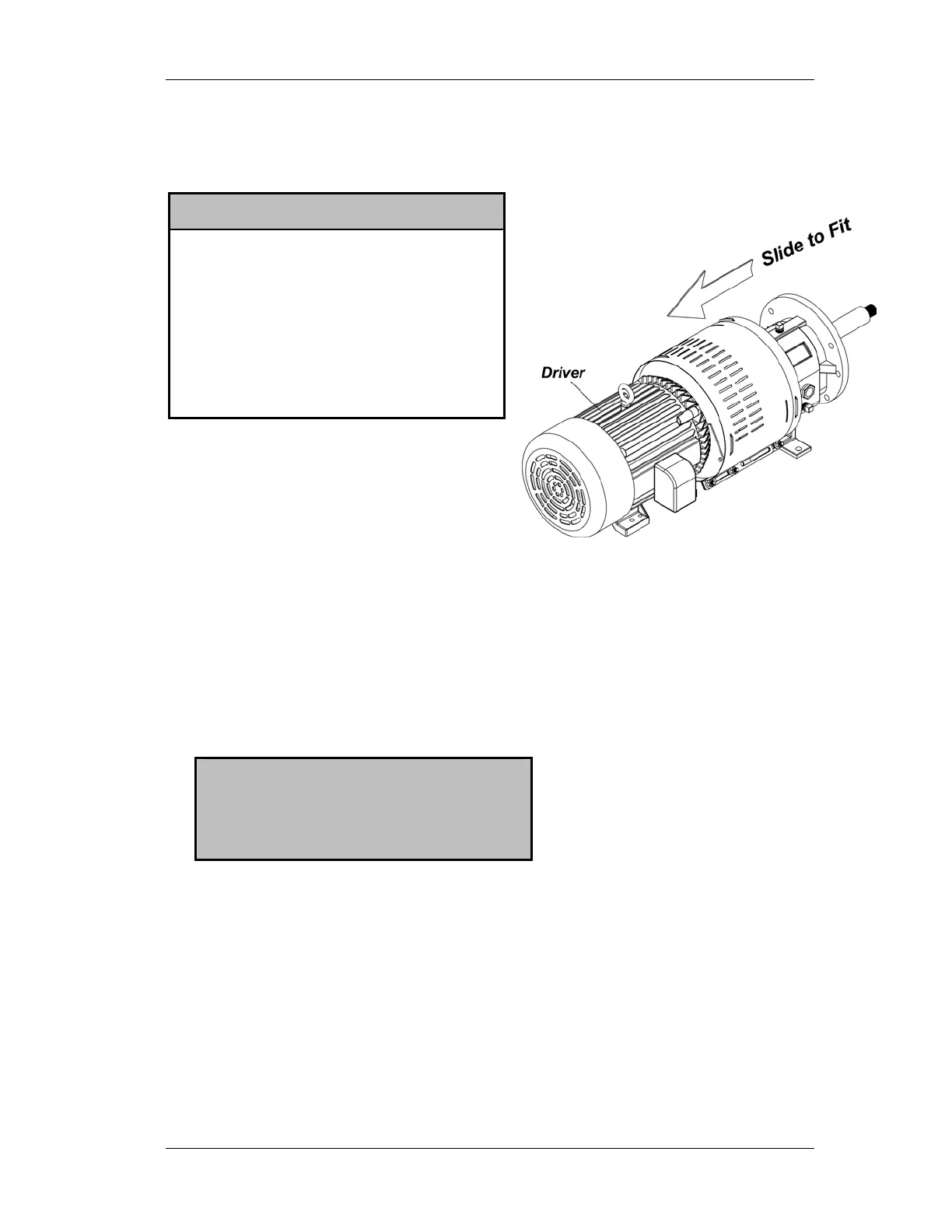

Figure H-10
DISASSEMBLY PROCEDURES
 TO DISASSEMBLE YOUR COUPLING GUARD
It is necessary to remove the coupling guard for certain pump maintenance and
adjustments, such as coupling adjustment, impeller clearance adjustment, and so
forth. Replace the coupling guard after completing maintenance.
DO NOT resume normal pump operation while the coupling guard is removed.
NOTE: Refer to the illustrations for
assembly beginning with Figure
H-10 and working in reverse
order.
1. Remove the nut, bolt and washers from the center-slotted hole on the coupling
guard. Slide the motor end of the coupling guard half toward the pump. (See
Figure H-10.)
2. Remove the nut, bolt and washers from the driver end of the coupling guard half
and remove the end plate. (See Figure H-9.)
3. Slightly spread the bottom of the coupling guard half and lift it off. (See Figure
H-8.)
4. Remove the remaining nut, bolt and washers from the pump end of the coupling
guard half. Slightly spread the coupling guard half and lift it off. (See Figure
