Installation, Operation, and Maintenance Manual
SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796 25

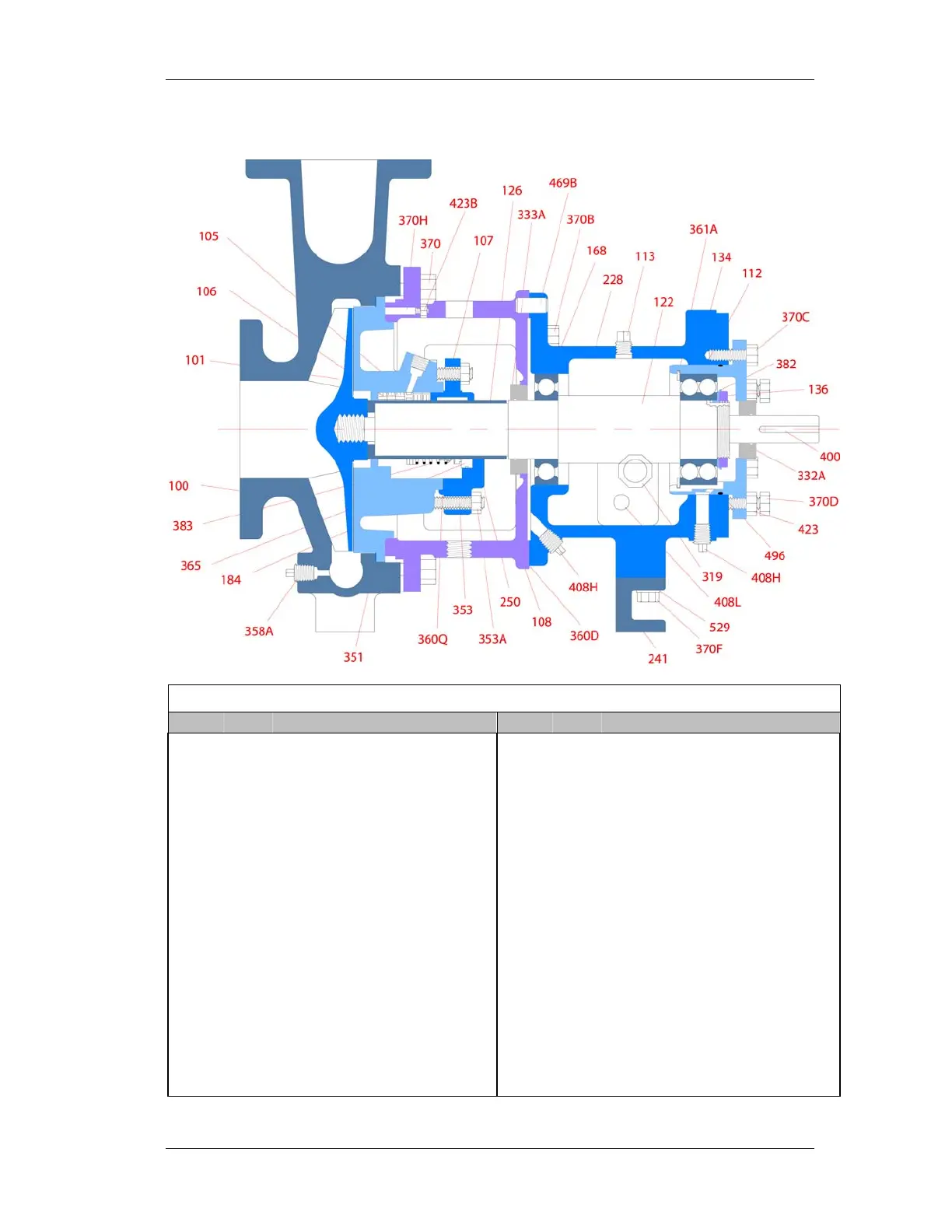

MODEL 2196 MTO CROSS SECTION
MODEL 2196 MTO PARTS LIST
Item # Qty Description Item # Qty Description
100 1 Casing 360D 1 Gasket, Frame/Adapter
101 1 Impeller 360Q 1 Gasket; Gland, Mech. Seal
105 1 Ring, Lantern 361A 1 Snap Ring, Bearing
106 5 Packing 365 1 Seal, Mechanical Stationary Element
107 1 Gland, Packing 370
8, 12, 16
Bolt, Casing
108 1 Adapter 370B 4 Bolt, Frame / Adapter
112 1 Bearing, Outboard 370C 3 Bolt, Frame / Bearing Housing
113 1 Plug, Oil Fill 370D 3 Jack Bolt, Bearing Housing
122 1 Shaft 370F 2 Bolt, Frame Foot
126 1 Sleeve, Shaft 370H 2 Box Cover/Adapter Stud
134 1 Housing, Bearing 382 1 Lockwasher, Bearing
136 1 Locknut, Bearing 383 1 Seal, Mechanical Rotating Element
168 1 Bearing, Inboard 400 1 Key, Coupling
184 1 Cover, Stuffing Box 408A 1 Plug, Frame Drain (Not Shown)
228 1 Frame 408H 4 Plug, Frame Lubrication Port
241 1 Foot Frame 408L 1 Plug, Oil Cooler Inlet
250 1 Gland, Mechanical Seal 408M 1 Plug, Oil Cooler OutIet
319 1 Gauge; Sight, Oil 412 1 O-ring, Impeller
332A 1 Labyrinth, Outboard Frame 423 3 Jamnut, Bearing Housing Jack Bolt
333A 1 Labyrinth, Inboard Frame 423B 2 Nut, Box Cover/Adapter Stud
351 1 Gasket, Case 469B 2 Dowel Pin, Frame / Adapter
353 4 Stud, Gland 496 1 O-ring, Bearing Housing / Frame
353A 4* Nut, Gland Stud 529 2 Washer, Frame Foot to Frame
358A 1 Plug, Casing Drain * Packing Gland has only 2 Studs & Nuts
