Installation, Operation, and Maintenance Manual
SUMMIT PUMP MODEL 2196 / 2196-LF / 2196-R / 2796 27

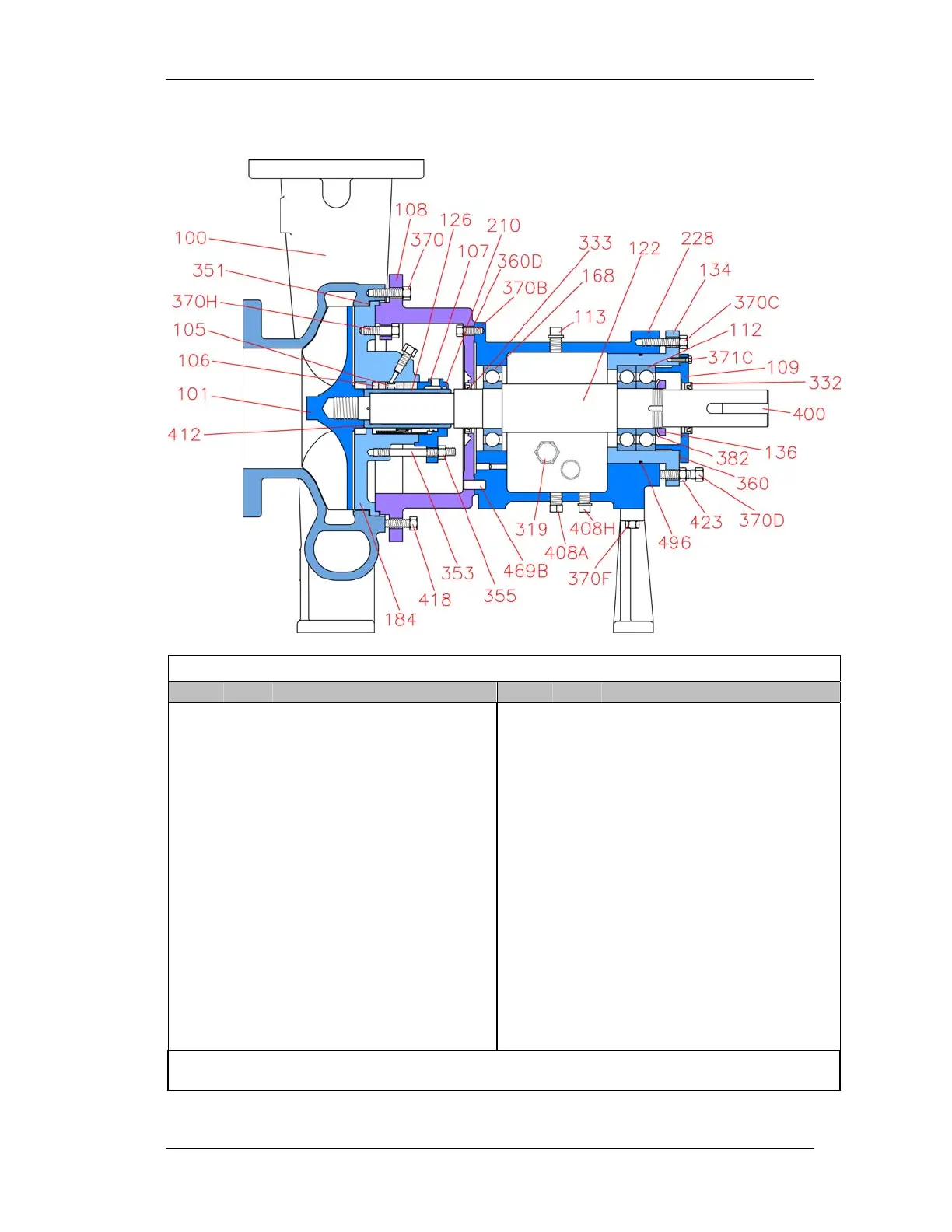

MODEL 2196 XLO CROSS SECTION
MODEL 2196 XLO PARTS LIST
Item # Qty Description Item # Qty Description
100 1 Casing 360 1 Gasket, End Cover
101 1 Impeller 360D 1 Gasket, Frame/Adapter
105 1 Ring, Lantern 370 16/24
1
Bolt, Adapter / Case
106 5
Stuffing Box Packing
370B 4 Bolt, Frame / Adapter
107 1 Gland 370C 4
Bolt, Housing / Frame
108 1
Frame Adapter
370D 4
Jack Bolt, Housing Adjustment
109 1
Bearing End Cover, Outboard
370F 2
Bolt, Frame Foot
112 2
Bearing, Thrust, Outboard
370H 2
Stud, Cover / Adapter
113 1
Oil Fill Plug
371C 6
Bolt, Cover/Housing
122 1
Shaft, Sleeve Type
382 1 Lockwasher
126 1 Sleeve 400 1 Coupling Key
134 1 Housing, Bearing 408A 1 Drain Plug
136 1 Locknut, Bearing 408H 1 Plug, Frame Lubrication Port
168 1 Bearing, Radial, Inboard 408J
2
1 Oiler Plug
184 1 Cover, Stuffing Box 408L
2
1 Cooler Plug
210 1 Packing, Gland 408M
2
1 Cooler Plug
228 1 Bearing Frame 408N
2
1 Sight Plug
319 1 Sight Glass 412 1 O-Ring, Impeller
332 1
Labyrinth Seal, Outboard
418 3 Bolt, Case Jackout
333 1
Labyrinth Seal, Inboard
423 4 Housing Jam Nut
351 1 Gasket, Casing 469B 2 Pin, Frame / Adapter
353 2 Stud, Gland 496 1 O-Ring, Bearing Housing
355 2 Nut, Gland
1
Item # 370: (16) – 6X8-13, 8X10-13, (24) – 6X8-15, 8X10-15, 8X10-15G
2
408J, 408L, 408M & 408N – NOT SHOWN ON THE DRAWING
