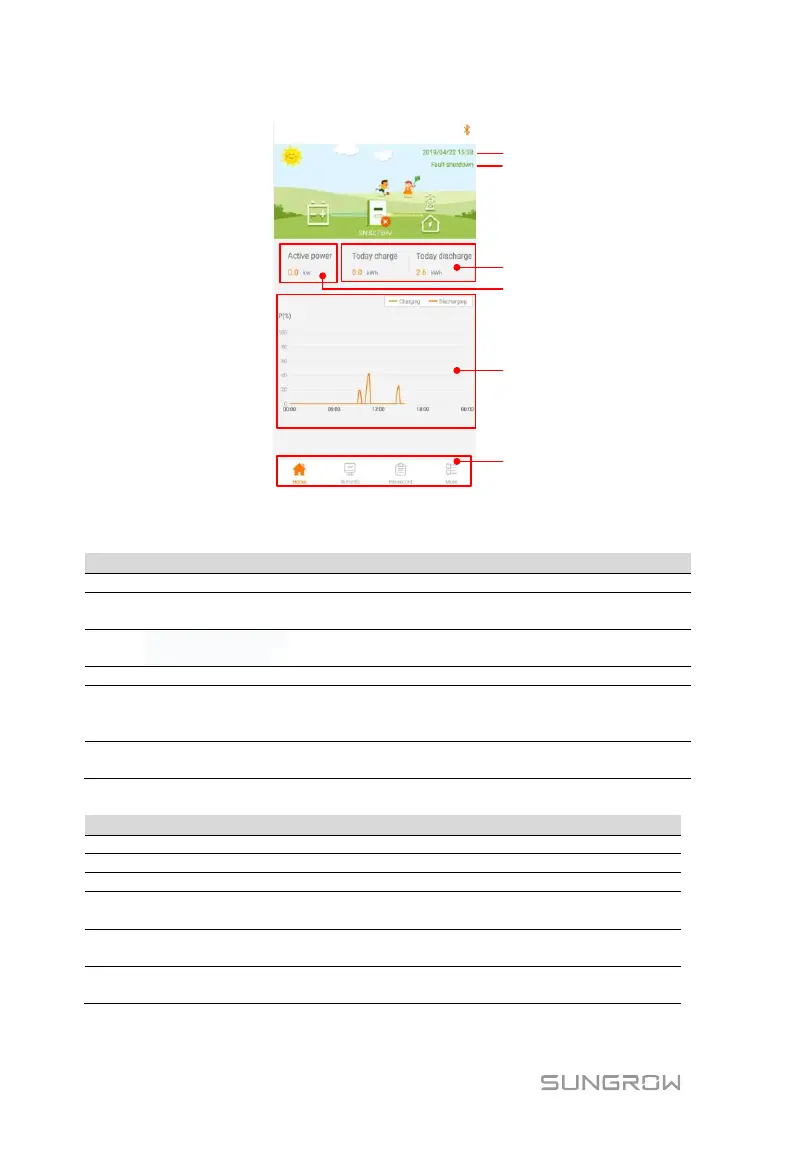

Fig. 8-5 Home page
Tab. 8-1 Home page description
No.
Designation
Description
1
Date and time
System date and time of the PCS
2
PCS state
Present operation state of the PCS
For details, refer to Tab. 8-2Description of PCS state
3
Charge and
discharge volume
Today power yield and accumulative power yield of
the PCS
4
Real-time power
Output power of the PCS
5
Power curve
Curve showing change of power during the whole
day. (Each point on the curve represents the
percentage of present PCS power to rated power)
6
Navigation bar
Including "Home", "Run-info", "His-record", and
"More"
Tab. 8-2 Description of PCS state
State
Description
Initial standby
The PCS is in the initial power-on standby state
ISO detection
The PCS is in the insulation state.
Starting
The PCS is initializing.
Run
After being energized, PCS converts the DC power into AC
power. This is the normal operation mode.
Alarm running
The PCS is in running state with alarms (the device is
abnormal, but can still start and run)
Derating
running
The PCS derate actively due to environmental factors such as
temperature or altitude
