Height Detect: Selecting this option allows you to test the Height Detection system
built into the nozzle housing assembly. After selecting the desired Travel Speed and
Overshoot Distance you will need to have someone stand in the booth in Position 1 and
push the Green Start Button. After the button is pushed, the Nozzle Housing will move
down until it detects the person’s head and when finished, it will display a results screen
showing the result parameters and the person’s measure height.
Section 7! Advanced Touchscreen Functions
6

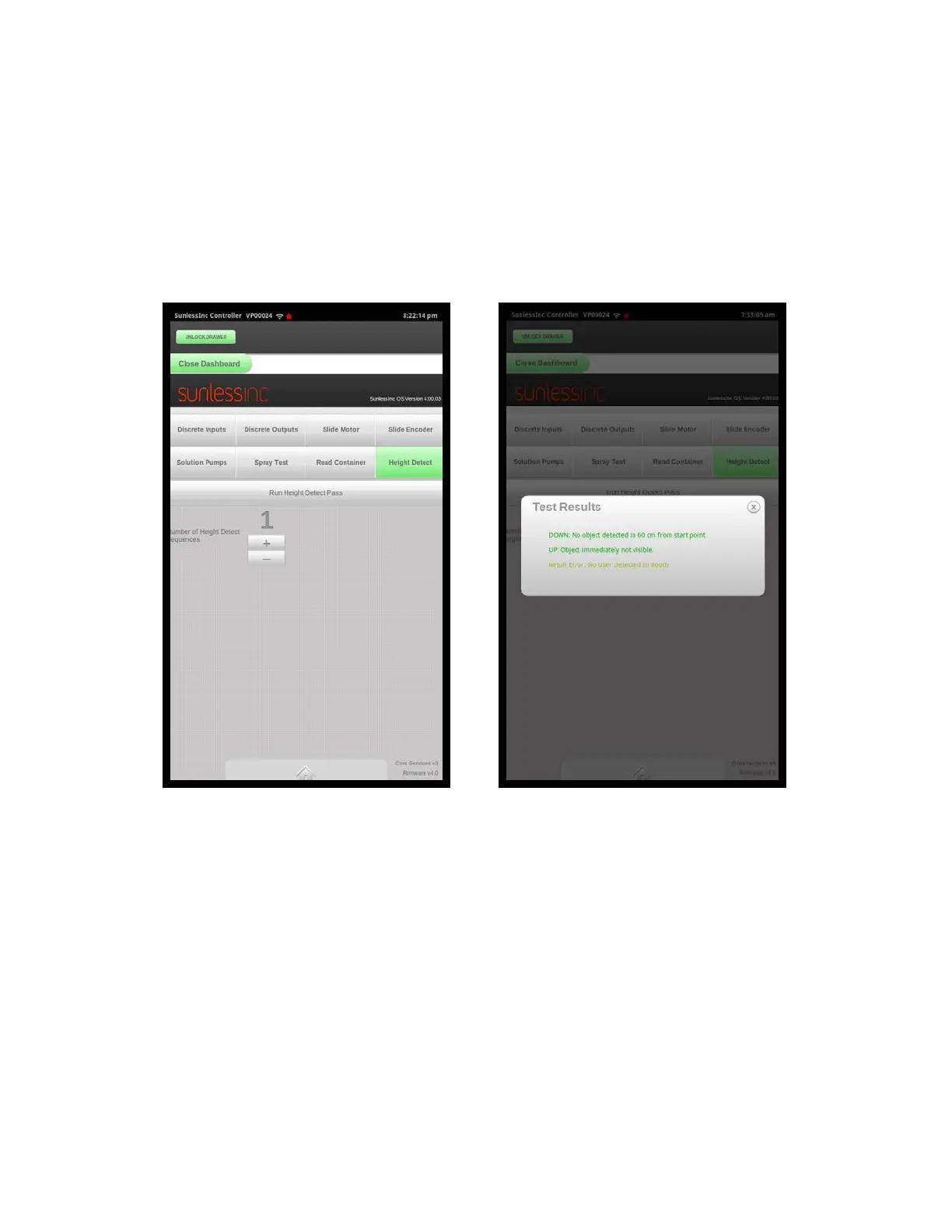

Height Detect Screen Height Detect Results Screen
