Hinge
①

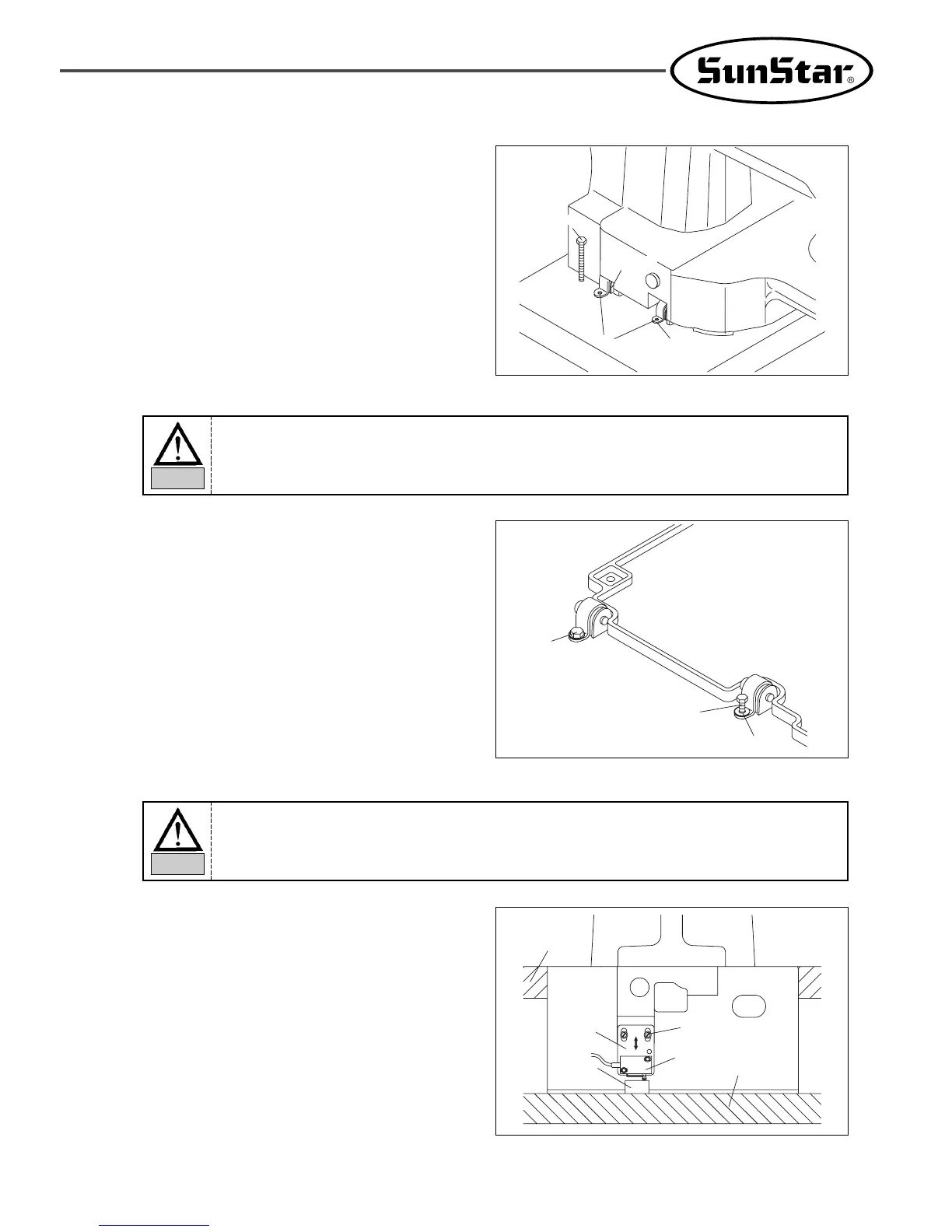

F. Assemble the hinge and the hinge rubber on the bed,
and insert the adjusting bolt into the hinge hole at ①.
Then fasten it on the table (below) as in the figure.
[Figure 13]
Fixing bolt
①
①
G. Open the hinge area on the table (above) and erect
the sewing machine. Insert the fixing bolt into the
hinge hole at ① and fix it on the table.
[Figure 14]
Table (above)
Table (below)
①
②
③
④
H. Assemble the safety switch bracket① on the bed as
in the figure. Move the safety switch bracket up or
down to adjust the safety switch support rubber② to
tightly press the safety switch③, and then fasten the
tightening screw④.
[Figure 15]
Fixing bolt
Hinge rubber
To prevent safety accident, the machine should be carried by at least two people.
Danger
The machine has not been completely assembled. When erecting the machine, make sure to prevent
the occurrence of a safety accident.
Danger
