SPS/D(C)-B1201 series are intended for industrial purposes for bar tacking on textiles and
other similar materials. Carefully study the following instructions before operating the
machine.
ⓐ Read the manual to understand on the operation of machine perfectly.
ⓑ Wear suitable clothes and cap for safe operation.
ⓒ During operation, don’t make you body close to operating part of machine such as
needle, hook, take-up lever or pulley.
ⓓ Do not remove a safety plate and covers during operation
ⓔ Be sure the grounding lines in connected.
ⓕ Before opening electricity box such as control box, cut off the supply of electricity
and confirm if the switch is “off”.
ⓖ When inserting thread into a needle or before inspecting after sewing, be sure the
machine is stopped.
ⓗ Do not turn on the power during pedaling.
ⓘ Do not use several motor per a electric outlet.
ⓙ Install the machine apart from noise occurrence area such as high frequency
welding machines as far as possible.
ⓚ Be careful- When the upper feed plate comes down to press. Otherwise, the finger
or hand hight be hurt at smacking.

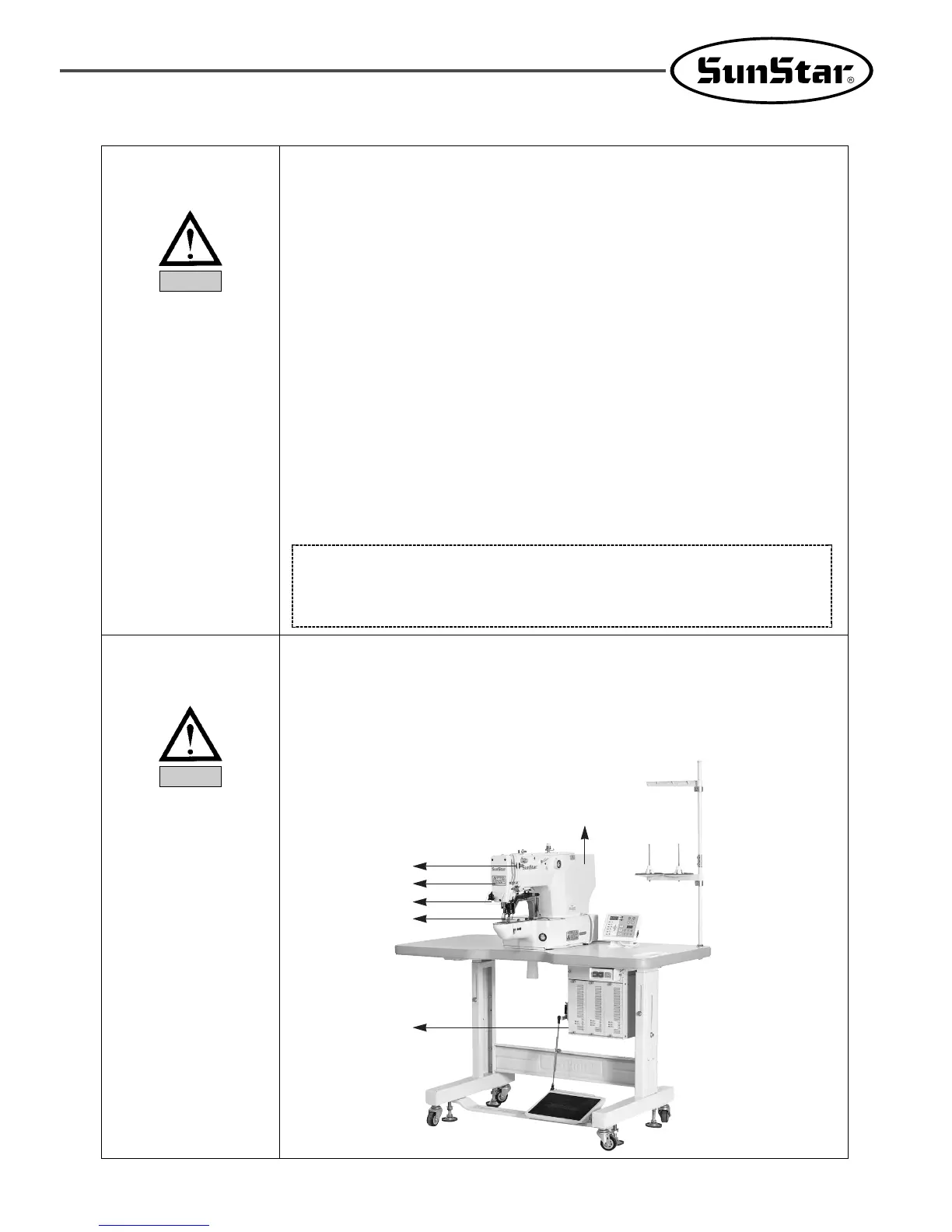

1-4) Machine
Operation
Caution
Caution
[Caution]
Always start the machine with safety covers in place since fingers or hands could be
injured or cut off by the belt. Turn off the power switch when conducting a regular check
on the machine.
1-5) Devices for
safety
ⓐ Safety label : It describes cautions during operating the machine.
ⓑ Thread take-up cover : It prevents from any contact between body and take-up lever.
ⓒ
Motor Cover(D Series) : It prevents from insertion of hands, feet or clothes by Motor.
Belt Cover(C Series) : It prevents from insertion of hands, feet or clothes by V-belt Motor.
ⓓ Label for voltage specification: Safety instructions to prevent possible electric shocks.
(Voltage and Hz)
ⓔ Finger guard : It prevent from contacts between a finger and needle.
ⓕ Safety plate : It protects eyes against needle breaks.
