40

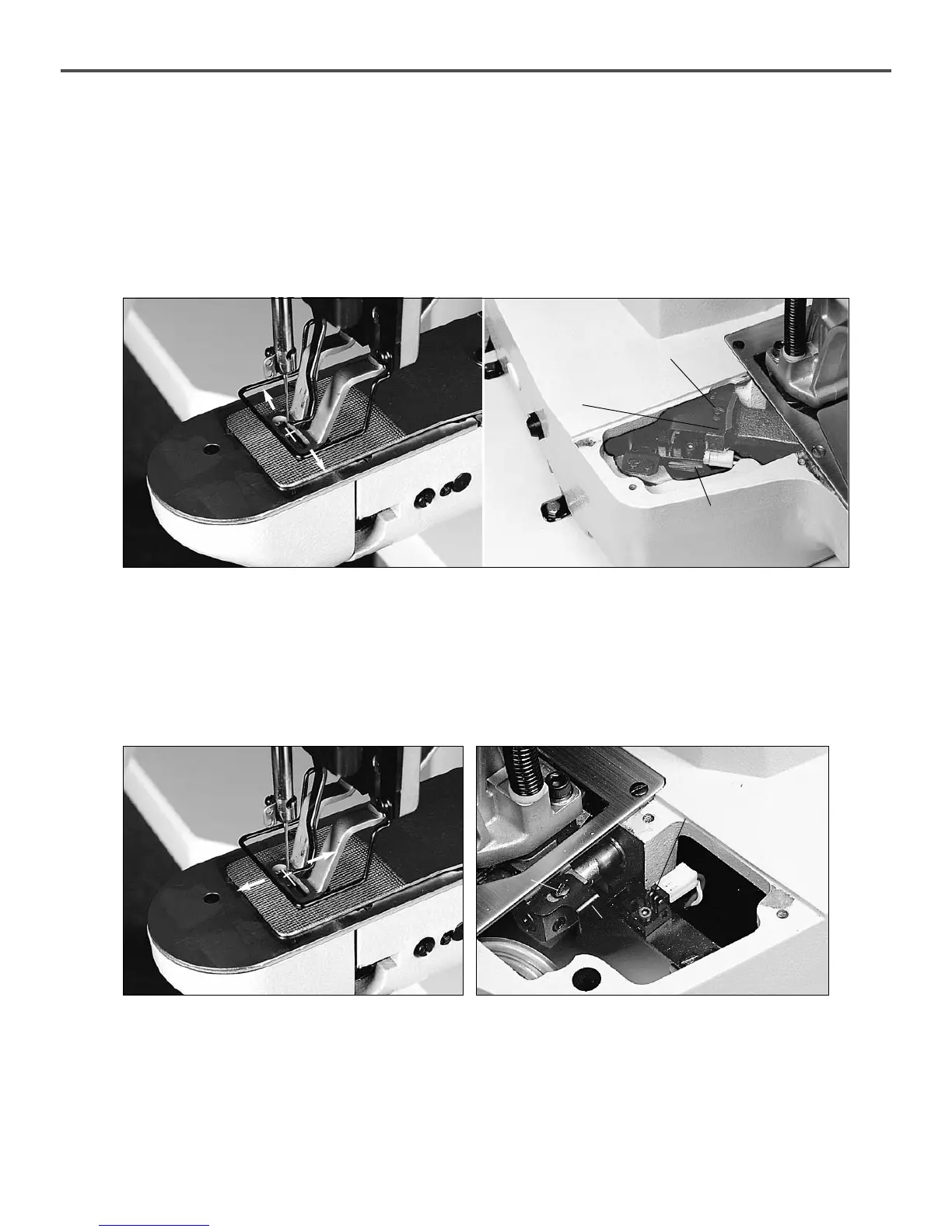

[Figure 85]
Screw
X-Sensor Plate
Sensor
13) Setting up the X-Y origin
A. Setting up the X-axis origin
ⓐ Remove the bed cover (left).
ⓑ Move the center of the presser foot towards the center of the X-axis.
ⓒ Loosen the screw of the X-sensor plate as shown in the Figure. Move the end of the X-sensor plate towards the
center of the sensor, and then tighten the screw with a screwdriver.
B. Setting up the Y-axis origin
ⓐ Separate the bed cover (right).
ⓑ Move the center of the presser foot towards the center of the Y-axis.
ⓒ Loosen the screw of the Y-sensor plate as shown in the Figure. Move the end of the Y-sensor plate towards
the center of the sensor, and then tighten the screw with a screwdriver.
[Figure 86]
Screw
Sensor
Y-Sensor Plate
To Next Page
